Amerex 05606 User Manual
Page 10
9
Item
No.
Part
No.
Description
Std.
Pkg.
1
03499
Valve Assembly with Downtube
1
2
04938
Downtube/Retainer Assembly
1
3
10523
Carriage Assembly w/o Wheels
1
4
03506
Cylinder w/Mounting Brackets
1
5
06061
Hose Support Asy with Mounting
Hardware
1
6
06130
Nozzle Mount with Hardware
1
7
03624
Nameplate (Mylar label) non U/L
1
8
07481
Pictogram
1
9
06062
Wheel Assembly, 16" with Hubcap,
Washer and Retaining Pin Pneumatic,
Green
1
9
07778
Wheel Assembly, 16" with Hubcap,
Washer and Retaining Pin Semi-
Pneumatic, Black
1
9A
04945
Hubcap
1
10
06059
Valve Lever w/Screws
1
11
03562
Gauge Guard Assembly
1
12
03523
200 PSI Gauge
1
13
06100
Ring Pin, SS with Wire
12
14
00155
Pressure Valve & Cap Assembly
12
15
01387
Lockwire Seal (Yellow)
500
16
06060
Cam Assembly w/o-rings
1
17
03787
Safety Disc Assembly
1
17A
13956
Vinyl Protector Cap
1
18
03678
Valve Body
1
19
05239
Collar O-Ring
12
20
05067
Valve Stem Assembly
6
21
03556
Spring
6
22
03501
Hose Assembly, 50 ft.
1
23
05295
Nozzle Asy (Ball Valve & Tip)
1
24
03877
Gasket, Hose/Nozzle
6
25
06355
Nozzle Tip (.375)
1
26
06279
Ball Valve Assembly
1
27
05723
Hydrotest Adapter (Male Plug) Use
with P/N 09857 to test 50 ft. Hose
Assembly
1
28
05152
Hydrotest Adapter (Cyl)
1
29
09857
Recharge Adapter
1
05606
Owners Service Manual
1
06247
Visilox Lub. (5 oz. tube)
1
06370
Plug, ¾ NPT SS Socket
1
Part Not Pictured

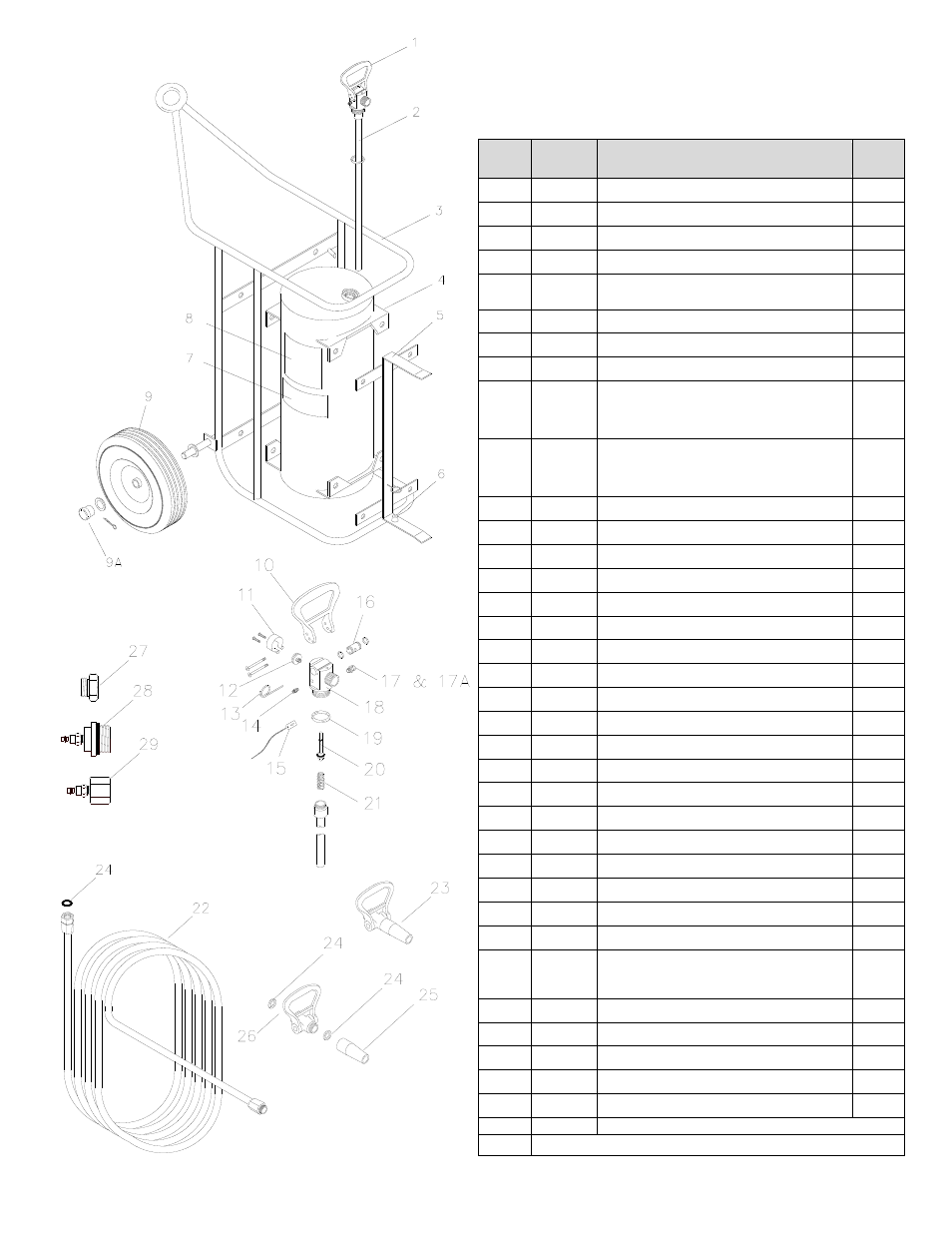

PARTS LIST
for
150 lb. Wheeled Stored Pressure
Halon 1211 Extinguisher
Model 600
