Aleco Clear-Flex II with MaxBullet Mounting System - Manual

FOR ANY QUESTIONS OR COMMENTS, PLEASE CONTACT AN ALECO REPRESENTATIVE
2720 E. Avalon Ave. Muscle Shoals, AL 35661 ● Phone (256) 248-2402 or toll free 1-800-633-3120
Fax: 1-800-750-9616 ● email: [email protected] ● web: www.aleco.com
P/N 477248
1110

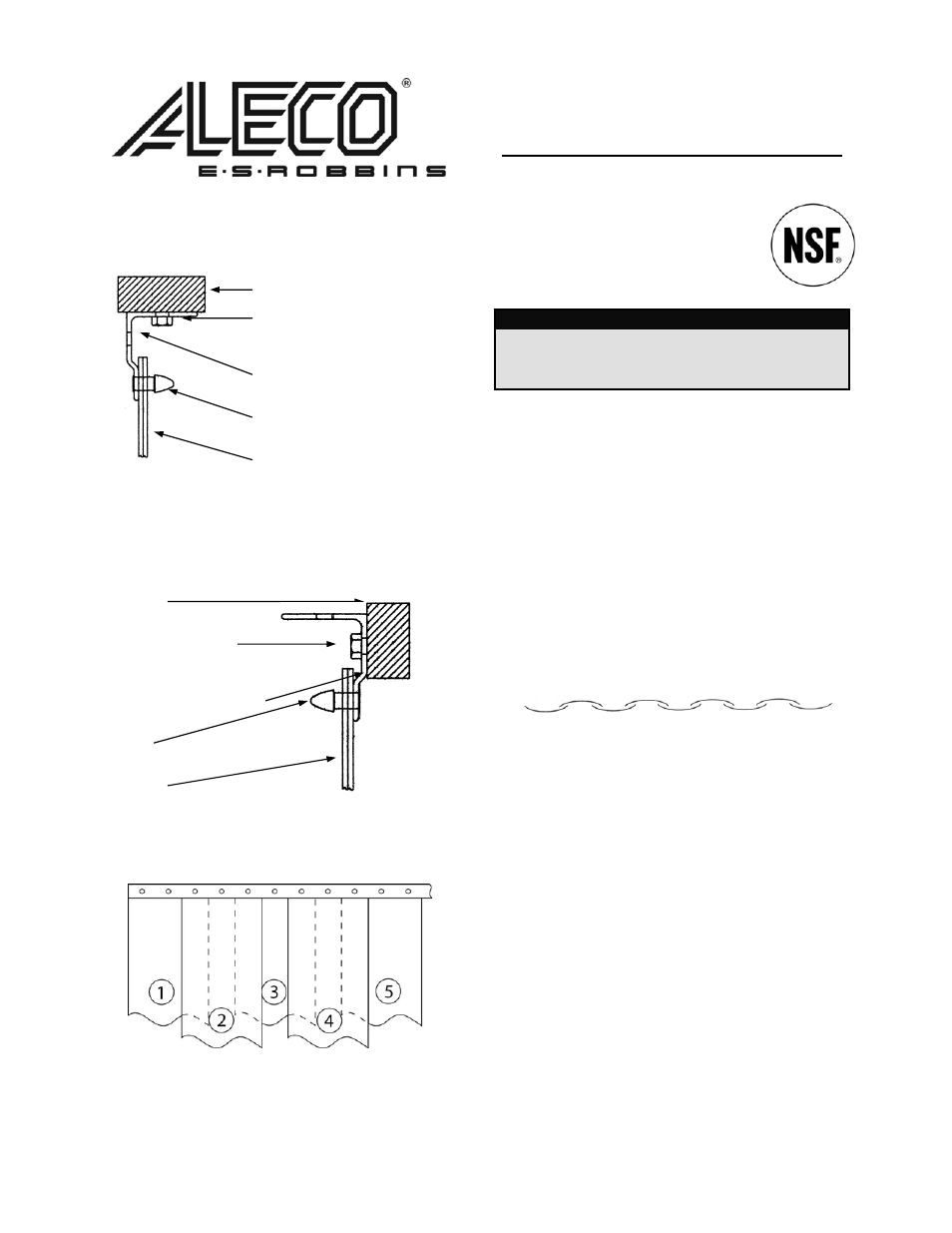

Diagram 1
Under Header (Lintel) Position
Wall
Fastener Supplied by
Others
MaxBullet
® Hardware
Bracket
Bullet
Strips
Diagram 2
Wall (Header) Position
Wall
Fastener Supplied
by Others
MaxBullet
® Hardware
Bracket
Bullet
Strips
Diagram 3
Front View Strip Spacing
Clear-Flex
®
II Strip Door
Installation Instructions
Using the Maximus System
®
Hardware
TOOLS NEEDED
• Pen or Pencil to Mark Drill Holes *
• Drill
• 5/16” Diameter Fasteners
• Step Stool or Ladder
• Utility Knife to Cut Strips
IMPORTANT
Prior to installation, unroll all door strips and place them on
a clean, flat surface in a warm atmosphere for a minimum of
twenty-four (24) hours. This will allow the strips to return to
their original form.
1. Mount the MaxBullet ® hardware bracket in
either the under header or wall position
shown in Diagrams 1 and 2 using
appropriate fasteners supplied by others
(recommended 5/16” diameter).
2. Press the door strips onto the “bullets” of the
hardware bracket making certain that the
concave sides are facing each other
(Diagram 4). Attach strip numbers 1 and 3
(see Diagram 3) with concave side toward
you, leaving desired spacing between strips
as indicated by the diagram on reverse side
of this sheet.
Diagram 4
3. Attach strip number 2 with concave side
away from you over strip numbers 1 and 3
(Diagram 3).
4. Attach all of the remaining door strips in the
same manner as in Steps 2 and 3 making
certain that the concave sides face each
other (Diagram 4).
5.
Once all of the door strips have been
attached, the strips can be trimmed to leave
¼” of clearance from the floor surface. Your
PVC door strips may be trimmed by using a
common utility knife to score and then be
torn by hand. The door strips need to
hang for 24 to 48 hours before final trim
to allow for proper alignment.
* NSF certification applies when hardware is installed with approved low-temp PVC strip material.
