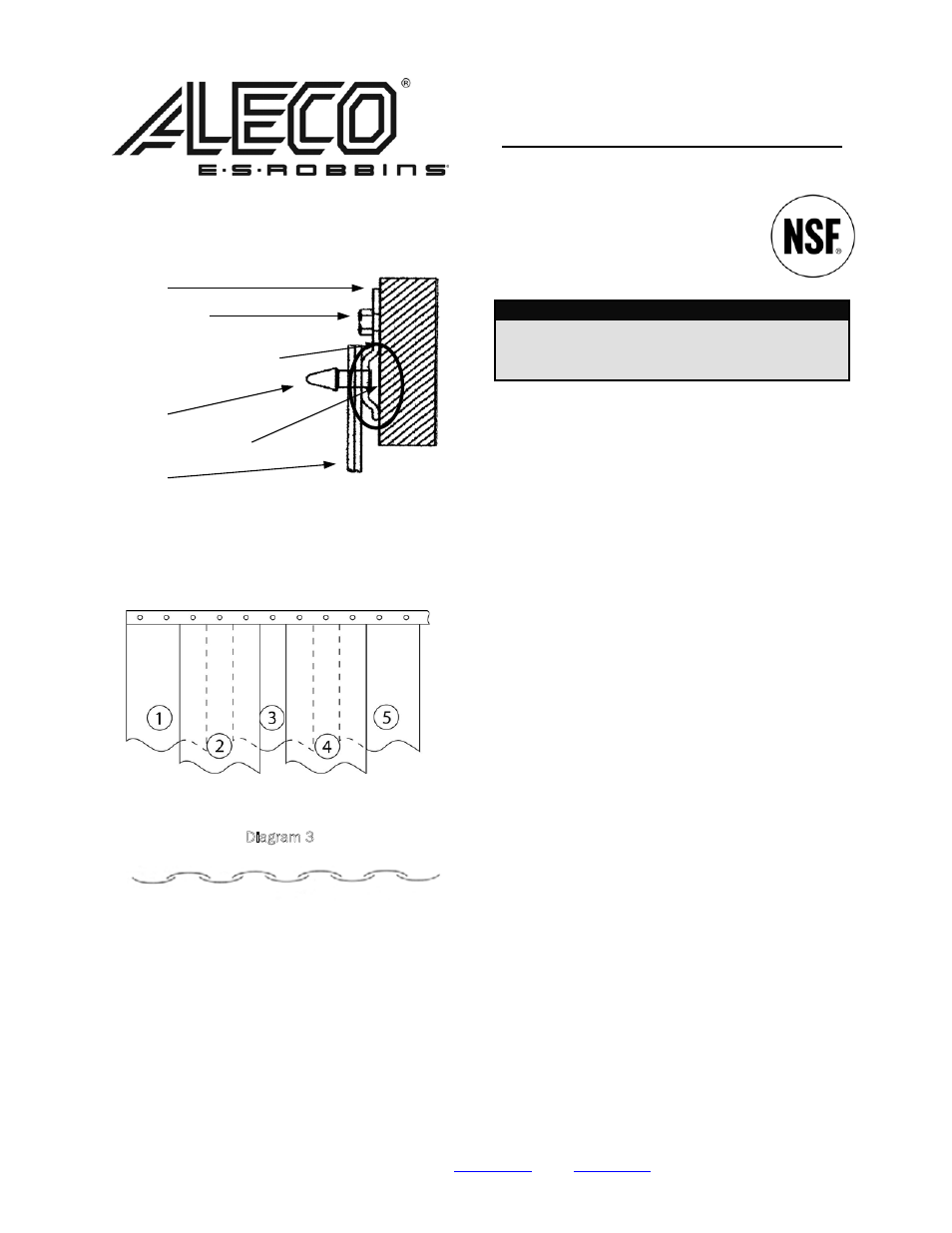

Diagram 1
Side View
Wall
Lag Screw
MaxBullet
®
Hardware
Bracket
Bullet
Seal opening here
Strips
Diagram 2
Front View w/ Strip Spacing
Diagram 3
Clear-Flex II ® Strip Door Installation
Instructions (Food Service Model)
Using the Maximus System Hardware
TOOLS NEEDED
• Pen or Pencil to Mark Drill Holes *
• Drill
• 5/16 Di ameter Fasteners
• Step Stool or Ladder
• Utility Knife to Cut Strips
IMPORTANT
Prior to installation, unroll all door strips and place them on
a clean, flat surface in a warm atmosphere for a minimum of
twenty-four (24) hours. This will allow the strips to return to
their original form.
1. Mount the MaxBullet ® hardware bracket
using lag screws provided on the inside wall
of walk-in, centered appropriately above
conventional door opening.
2. Seal opening at ends of MaxBullet
®
hardware bracket with NSF-approved
silicone sealant (Diagram 1).
3. Press the door strips onto the “bullets” of the
hardware bracket making certain that the
concave sides are facing each other
(Diagram 3). Attach strip numbers 1 and 3
(see Diagram 2) with concave side toward
you, leaving desired spacing between strips
as indicated by the diagram on reverse side
of this sheet. Then attach strip number 2
with concave side away from you. Proceed
with strip number 5 toward you, again
leaving the appropriate spacing as per
diagram on reverse side of this sheet.
Proceed until all strips are in place.
4. Once all of the door strips have been
attached, the strips can be trimmed to leave
¼” of clearance from the floor surface. Your
PVC door strips may be trimmed by using a
common utility knife to score and then be
torn by hand. The door strips need to
hang for 24 to 48 hours before final trim
to allow for proper alignment.
* NSF certification applies when hardware is installed with approved low-temp PVC strip material.
