Airedale Air Cooled Condensers R407C - Manual (Page 16)

C11-45 / CS50 - 105 CONDENSERS
16
Condensers
Installation and Maintenance Manual: 6259642 V1.2.0 02/2013

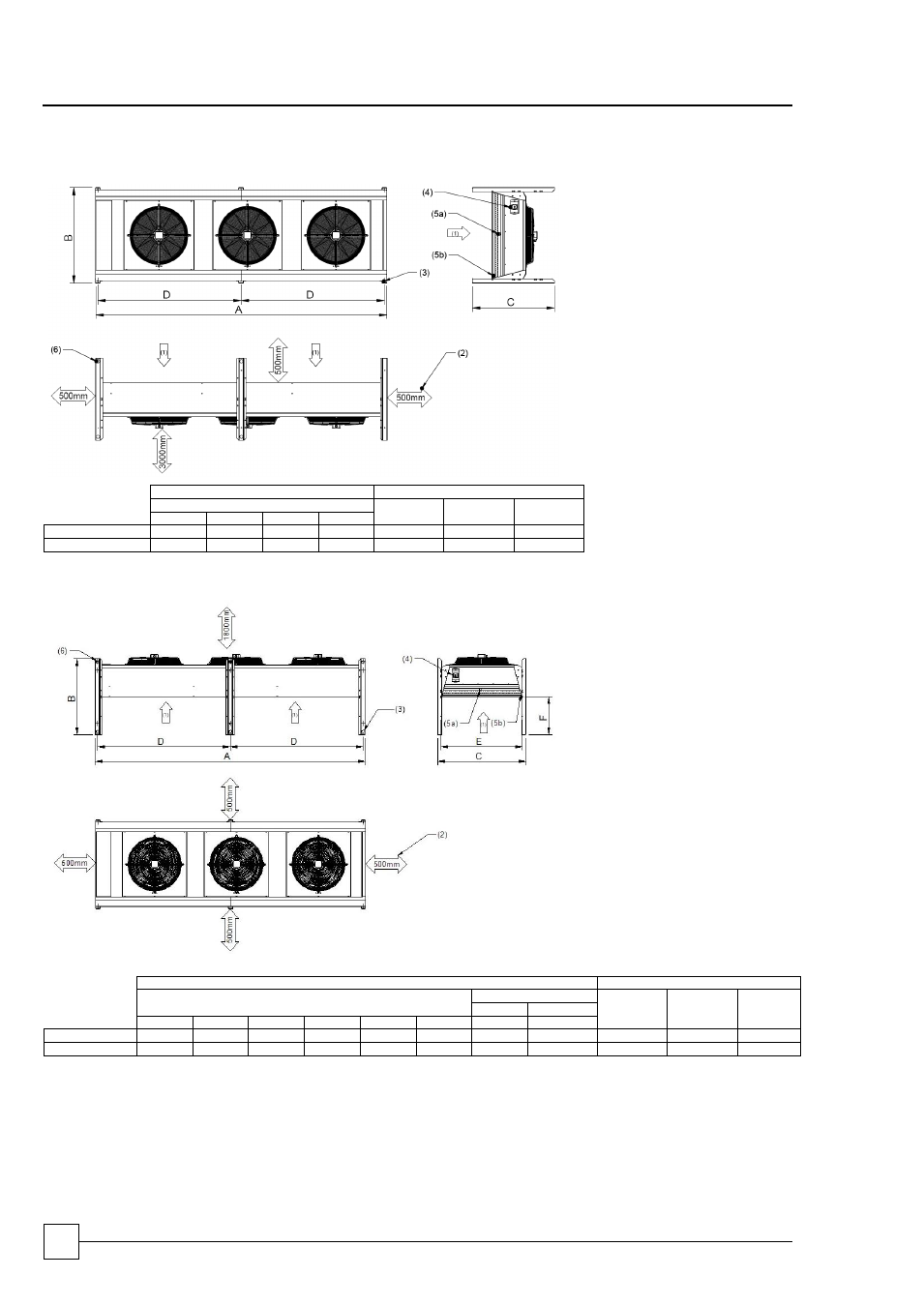

DIMENSIONS CS80 - 105
Horizontal Unit (mm)
(1) Airflow
(2) Minimum Clearances
(3) 12.7mm Fixing Holes
(4) Mains Electric Isolator.
(5) Service connections
a) Liquid Outlet
b) Discharge Inlet
(6) 40mm Lifting Holes
DIMENSIONS (mm) MASS (kg)
Standard Fan Standard
AC
Optional
EC
Optional
SCAF A B C D
CS80H-0 mm 3565 1167 1000 1752 208 228 242
CS105H-0 mm 3565 1167 1000 1752 260 280 294
Vertical Unit (mm)
(1) Airflow
(2) Minimum Clearances
(3) 12.7mm Fixing Holes
(4) Mains Electric Isolator.
(5) Service connections
a) Liquid Outlet
b) Discharge Inlet
(6) 40mm Lifting Holes
DIMENSIONS (mm) MASS (kg)
Standard Fan
Fan Options
Standard
AC
Optional
EC
Optional
SCA
F
EC Opt. SCAF Opt.
A B C D E F B B
CS80V-0 mm 3565 1090 1167 1753 1107 501 1130 1127 208 228 242
CS105V-0 mm 3565 1090 1167 1753 1107 501 1130 1127 260 280 294
