Multiple transmitter and temperature controller KS 816

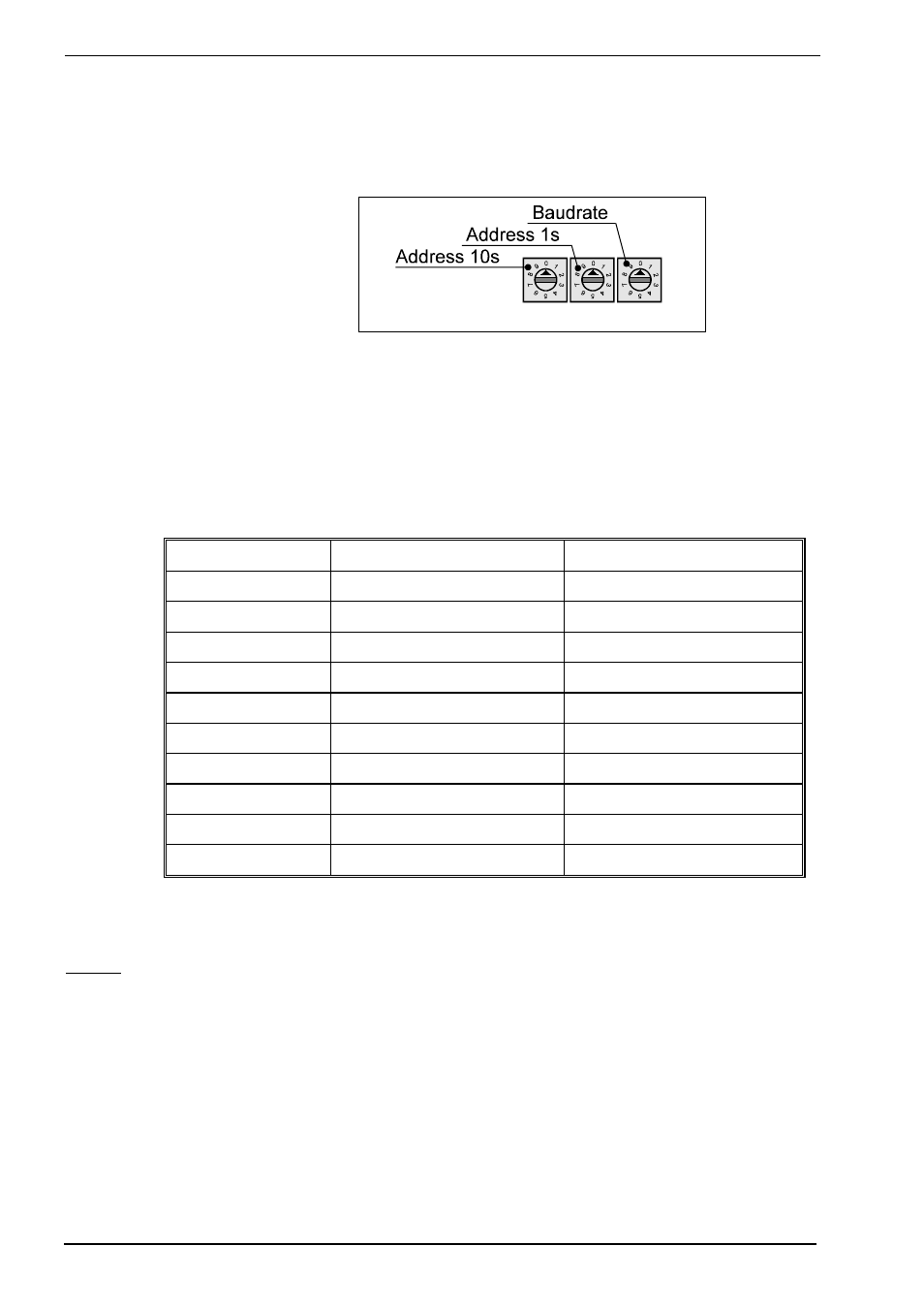

Address and Baudrate for the COM2 interface can be adjusted via hardware or
software for each KS 800.
Via hardware, the address is adjustable within ”01” and ”99”. In position ”00”, the
address stored in EEPROM which can be changed via software will be used when
switching on. Priority is given to the address adjusted via switch position. This
address cannot be changed via software.
The same applies to the Baudrate: in Position ”0”, the EEPROM Baudrate is effec-
tive at first. This address can be changed via software. The digits on the switch cor-
respond to the values used for determination of the Baudrate during configuration in
C902.
Switch position
RS485
CANbus
0
from EEPROM or via software
from EEPROM or via software
1
2400 Bd
20 kBd
2
4800 Bd
125 kBd
3
9600 Bd
500 kBd
4
19200 Bd
1 Mbd
5
invalid setting
10 kBd
6
invalid setting
50 kBd
7
invalid setting
250 kBd
8
invalid setting
800 kBd
9
invalid setting
invalid setting
As the baudrate is adjusted automatically with the PROFIBUS DP-version, manual
adjustment is omitted.
