iNFORmATiON PRESENT ON 322L LEvER vALvES
There is information present on each lever valve ranging in importance from the part
number and serial number to the color of the paint and casting numbers. This information is
important for identifying the valve, installing it correctly, and obtaining parts. An example
of the current factory serial number label used on 1-1/2 thru 3 inch 322L Lever Valves is
shown here. The accompanying table identifies the information present and where to find
it on the lever valve. There may also be other casting numbers and foundry marks present
that do not provide useful information. Customer specific tagging may also present. The
labels or plates used, and information present, on Warren Controls other product lines or
older valves may be different, contact the factory for details..

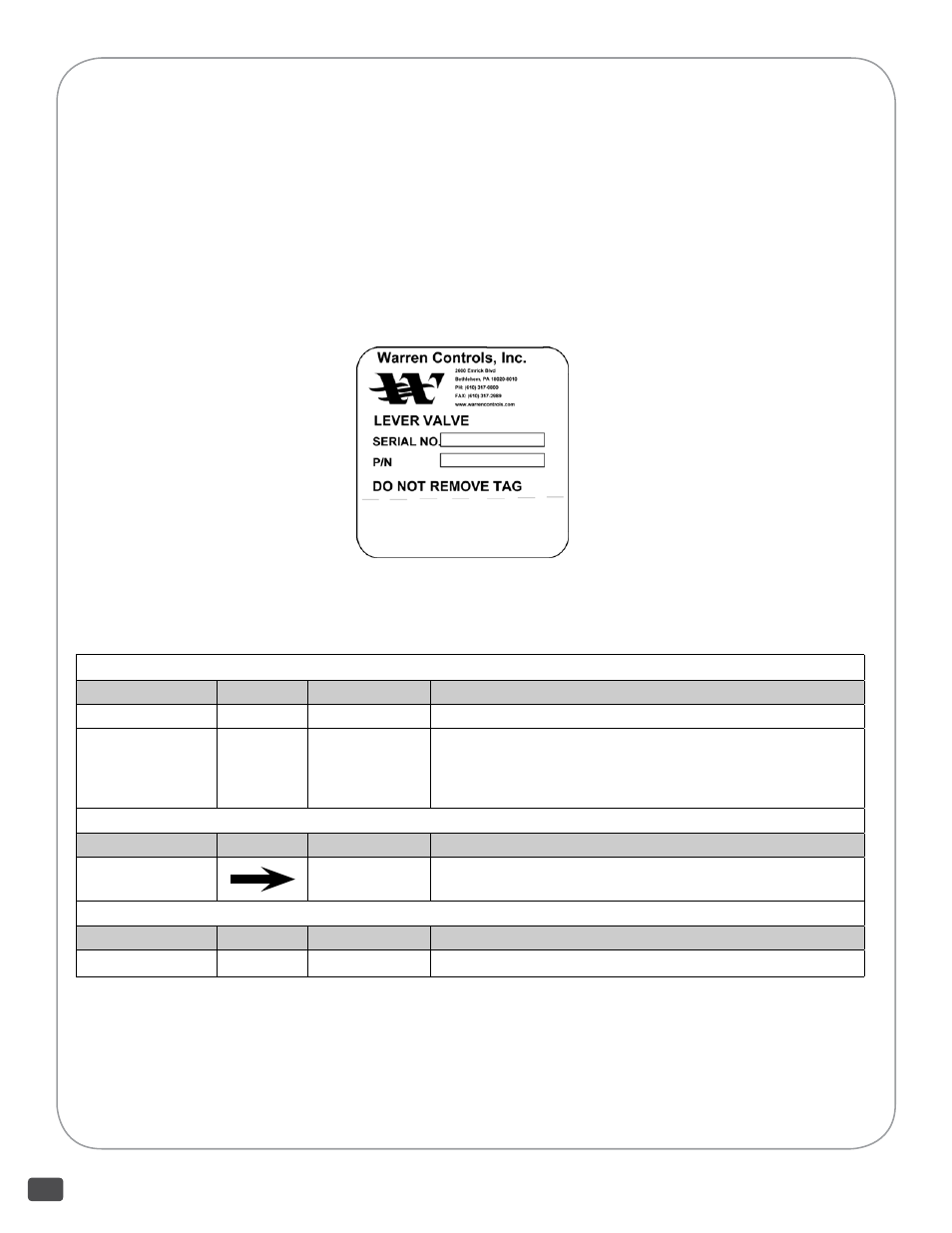

FACTOry SeriAL NumBer LABeL
iNFORmATiON PRESENT ON 322L LEvER vALvES
iRON 1-1/2 ThRU 3 iNCh
Information Present on 322L Lever Valves
There is a great deal of information present on each lever valve ranging in importance from the part number and serial
number to the color of the paint and casting numbers. This information is important for identifying the valve, installing it
correctly, and obtaining parts.
An example of the current factory serial number label used on 1-1/2 thru 3 inch
322L Lever Valves is shown here. The accompanying table identifies the information present and where to find it on
the lever valve. There may also be other casting numbers and foundry marks present that do not provide useful
information. Customer specific tagging may also present. The labels or plates used, and information present, on
Warren Controls other product lines or older valves may be different, contact the factory for details.
Factory Serial Number Label
INFORMATION PRESENT ON 322L LEVER VALVES
IRON 1-1/2 THRU 3 INCH
Part Number & Serial Number
Information
Symbol(s)
Location
Notes
Part numbers
P/N’s.
On actuator
•
On
Factory Serial Number Label attached to actuator.
Serial number
SERIAL
NO.
On actuator
and
valve body
•
On
Factory Serial Number Label attached to actuator.
•
Sales order number only stamped on top of valve body top cover or top of valve
body.*
* Number stamped using approximately 1/8 inch tall characters
Flow Direction
Information
Symbol(s)
Location
Notes
Flow direction
through valve
On valve body
•
Arrow cast on valve body between the end connections
Valve Attributes
Information
Symbol(s)
Location
Notes
Valve body
material
On valve body
•
If the factory applied paint is black the valve body material is iron.
PART NUmBER & SERiAL NUmBER
InformatIon
Symbol(S) locatIon
noteS
Part number
P/N
On actuator
• On Factory Serial Number Label attached to actuator.
Serial Number
SERiAL NO.
On actuator
and valve body
• On Factory Serial Number Label attached to actuator.
• Sales order number only stamped on top of valve bocy top cover
or top of valve body*
* Number stamped using approximately 1/8 inch tall characters
FLOw DiRECTiON
InformatIon
Symbol(S) locatIon
noteS
Flow direction
through valve
On valve body
• Arrow cast on valve body between the end connections.
vALvE ATTRiBUTES
InformatIon
Symbol(S) locatIon
noteS
Valve Body Material
On valve body
• If the factory applied paint is black the valve body material is iron.
