8
2600 Emrick Blvd • Bethlehem, PA 18020 • USA •800-922-0085 • www.warrencontrols.com

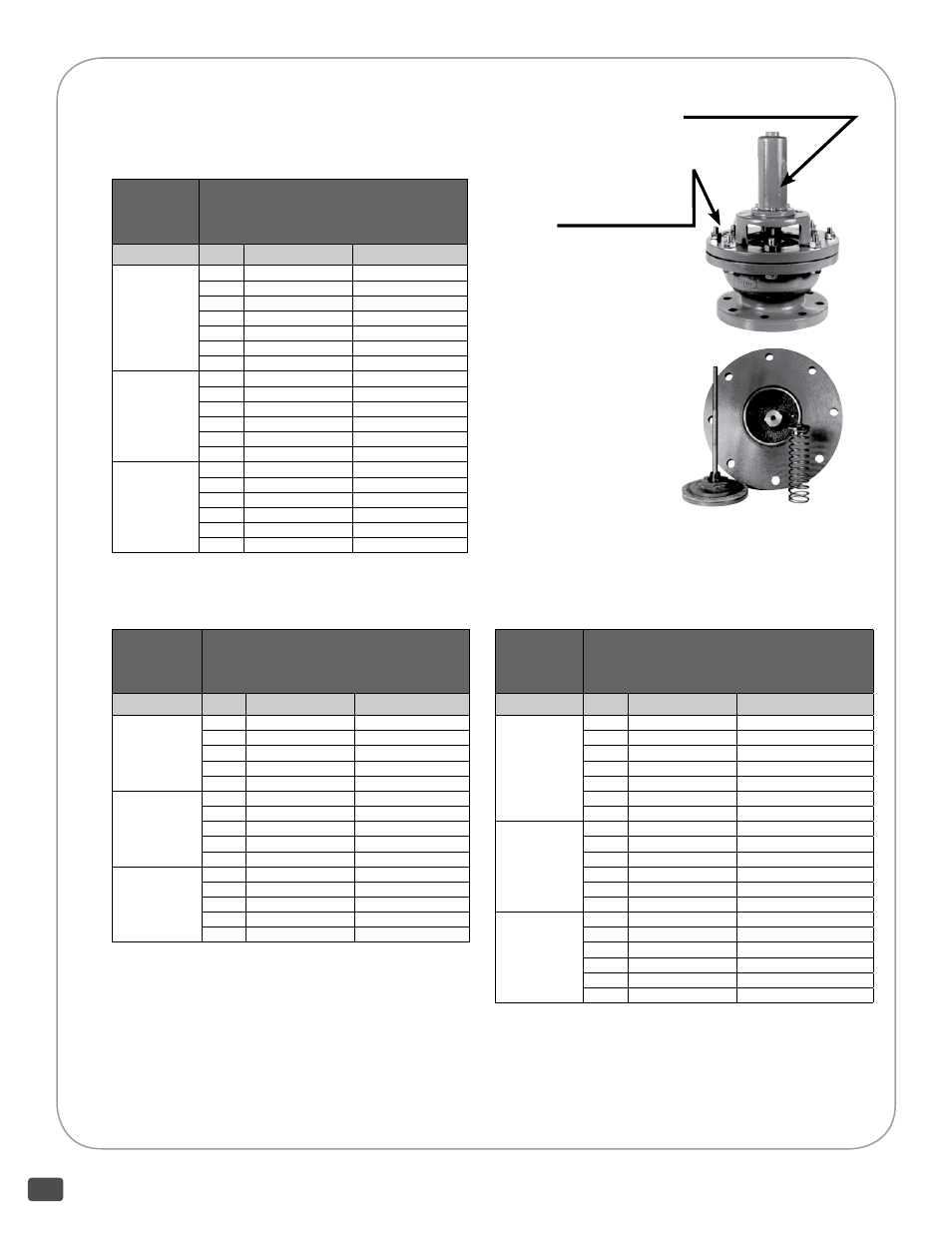

Serial number label located here
Sales order (serial)
number stamped here
4” Iron Type 200
Stainless steel stem and non-asbestos
disc assembly, Iron body with seat and
brass guide, and stainless steel spring
assembly shown separately
vACUUm BREAkERS wiTh NON-ASBESTOS DiSC
TyPE 200 vACUUm BREAkER SPECiFiCATiONS
200 With Standard trim
(Integral Seat, non-asbestos
Disc and Steel Discholder)
body material Size End Connection Part Number
IRON
2* 125FLG 020009EXX000
2* NPT 020009IXX000
4 125FLG 020013EXX000
6 125FLG 020015EXX000
8 125FLG 020017EXX000
10 125FLG 020019EXX000
12 125FLG 020020EXX000
STEEL
2* 150FLG 020009GXX000
4 150FLG 020013GXX000
6 150FLG 020015GXX000
8 150FLG 020017GXX000
10 150FLG 020019GXX000
12 150FLG 020020GXX000
STEEL
2* 300FLG 020009HXX000
4 300FLG 020013HXX000
6 300FLG 020015HXX000
8 300FLG 020017HXX000
10 300FLG 020019HXX000
12 300FLG 020020HXX000
* 2” Type 200 has stainless steel discholder - standard
200 With Integral Seat,
non-asbestos Disc and
Stainless Steel Discholder
body material Size End Connection Part Number
IRON
4 125FLG 020013EXX005
6 125FLG 020015EXX005
8 125FLG 020017EXX005
10 125FLG 020019EXX005
12 125FLG 020020EXX005
STEEL
4 150FLG 020013GXX005
6 150FLG 020015GXX005
8 150FLG 020017GXX005
10 150FLG 020019GXX005
12 150FLG 020020GXX005
STEEL
4 300FLG 020013HXX005
6 300FLG 020015HXX005
8 300FLG 020017HXX005
10 300FLG 020019HXX005
12 300FLG 020020HXX005
200 With non-asbestos Disc and Stainless
Steel trim (SS Discholder and
SS replaceable Seat)
body material Size End Connection Part Number
IRON
2 125FLG 020009EXX006
2 NPT 020009IXX006
4 125FLG 020013EXX006
6 125FLG 020015EXX006
8 125FLG 020017EXX006
10 125FLG 020019EXX006
12 125FLG 020020EXX006
STEEL
2 150FLG 020009GXX006
4 150FLG 020013GXX006
6 150FLG 020015GXX006
8 150FLG 020017GXX006
10 150FLG 020019GXX006
12 150FLG 020020GXX006
STEEL
2 300FLG 020009HXX006
4 300FLG 020013HXX006
6 300FLG 020015HXX006
8 300FLG 020017HXX006
10 300FLG 020019HXX006
12 300FLG 020020HXX006
