iNFORmATiON PRESENT ON TyPE 200 vACUUm BREAkER
There is information present on each vacuum breaker ranging in importance from the part number and serial
number to the color of the paint and casting numbers. This information is important for identifying the vacuum
breaker, installing it correctly, and obtaining parts. An example of the current factory serial number label
used on Type 200 Vacuum Breakers is shown here. The accompanying table identifies the information present
and where to find it on the vacuum breaker. There may also be other casting numbers and foundry marks present
that do not provide useful information. Customer specific tagging may also present. The labels or plates used,
and information present, on Warren Controls other product lines or older vacuum breakers may be different,
contact the factory for details.

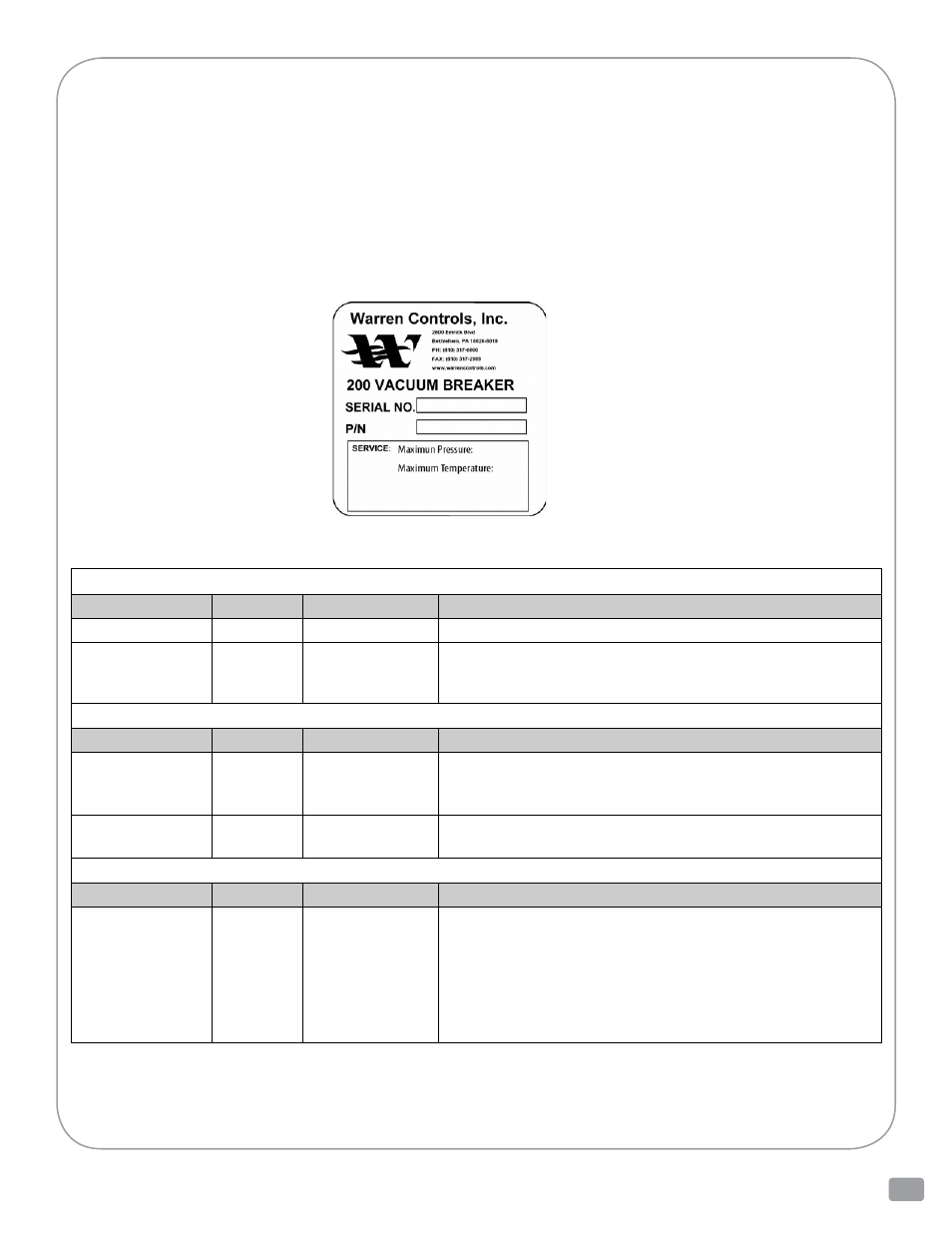

FACTORy SERIAL
NumBER LABEL
iNFORmATiON PRESENT ON Type 200
PART NUmBER & SERiAL NUmBER
InformatIon
Symbol(S) locatIon
noteS
Part number
P/N
On spring chamber
• On Factory Serial Number Label attached to spring chamber.
Serial Number
SERiAL NO.
On spring chamber
and valve body
• On Factory Serial Number Label attached to spring chamber.
• Sales order number only stamped on valve body end connection.*
* Number stamped using approximately 1/8 inch tall characters
SERviCE
InformatIon
Symbol(S) locatIon
noteS
Maximum
pressure rating
maximum
Pressure
On spring chamber
• On Factory Serial Number Label attached to spring chamber.
Maximum
temp. rating
maximum
Temperature
On spring chamber
• On Factory Serial Number Label attached to spring chamber.
vALvE ATTRiBUTES
InformatIon
Symbol(S) locatIon
noteS
Body material
On vacuum
breaker
• If the factory applied paint is black and the adapter
body is cast in one piece the body material is iron.
• If the factory applied paint is black and the adapter body is made
of three sections welded together the body material is steel.
• If there is no factory applied paint present and the adapter body
is made of three sections welded together the body material
is stainless steel.
