Operating Instructions Alpha RES 1000
2
2 Assembly and Installation

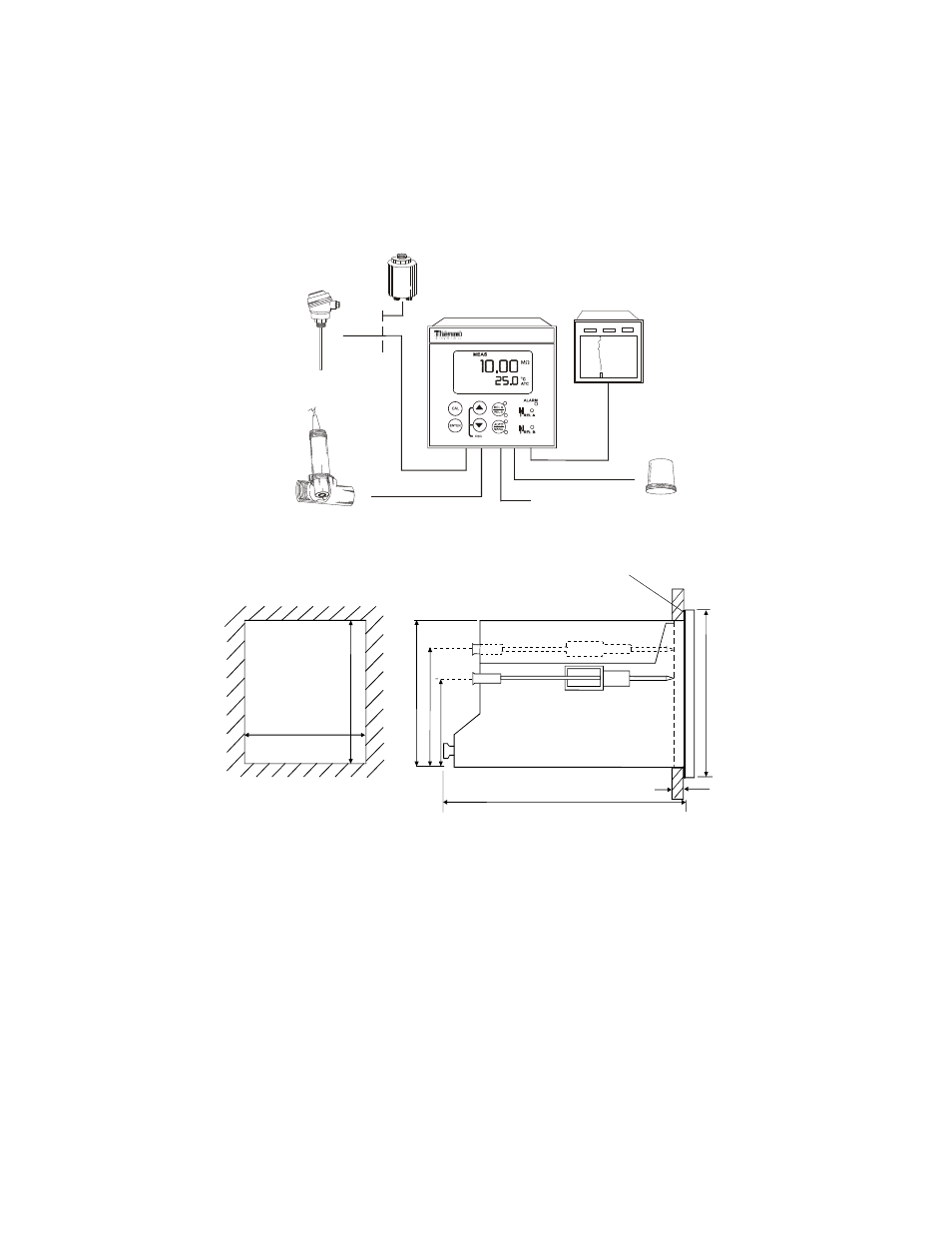

2.1 Measurement and Control System
A typical measurement system consists of:
• an Alpha RES 1000 process controller
• a suitable Resistivity electrode with the appropriate Cell constant and integrated temperature sensor Pt
1000 or Pt 100,
• an immersion, flow or process assembly
• a final control element such as pump or valve and
• a chart recorder
Power Mains
(220/110 VAC)
roller Alpha RES 1000 Cont
Flow Assembly
to Dosing Pumps
Process Assembly
with Electrode
Chart Recorder
Pt100/Pt1000
Temperature Sensor
Alpha RES 1000
Alarm / Siren
System
2.2 Unit Dimensions
The field-tested control panel housing is 96 x 96 mm; with protection class IP 54 (front).
max. 175
max. 45
Mounting Cut-Out
Flat Gasket (1mm)
(To be Inserted By Customer)
Note: The Taped Corners Have to Be On Top
92
32
56
96
92 + 0.5
92 + 0.5
