11 Appendices
Appendix 1 – Jumper Positions

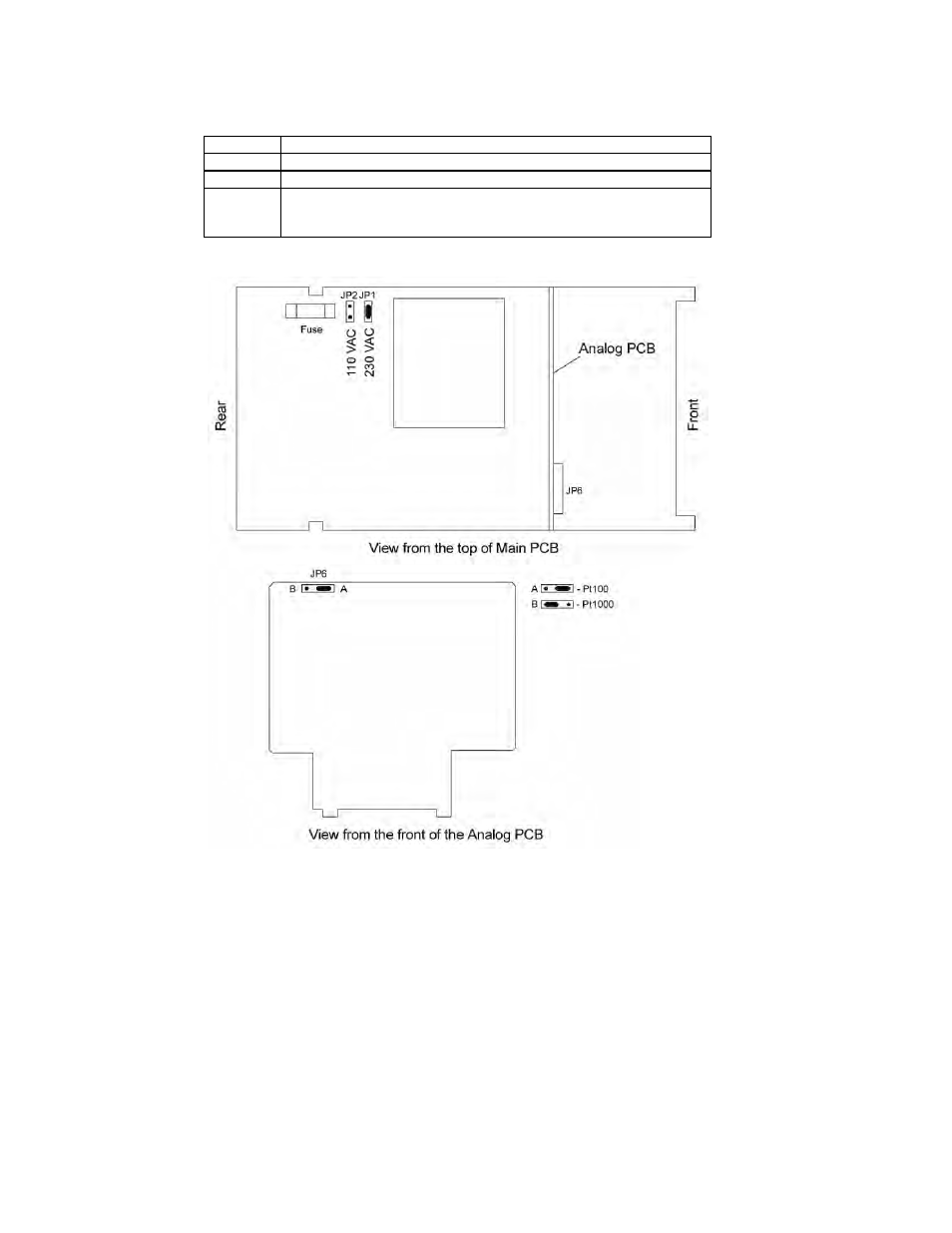

Jumper Positions - Internal to the controller
JP 1
Selects the input voltage 220 VAC.
JP 2
Selects the input voltage 110 VAC.
JP 6
Selects the temperature sensor for Pt1000/Pt100
Fuse
Note that there is a fuse (slow-blow 100mA) internal to the controller. Before
opening the unit, ENSURE that the power cable is physically separated from
the power supply. Replace fuse with the recommended type only.
