PREPARATIONS
CONNECTIONS
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is
120 V AC. Check that the rated voltage matches your local voltage.
1 1 1 1 1

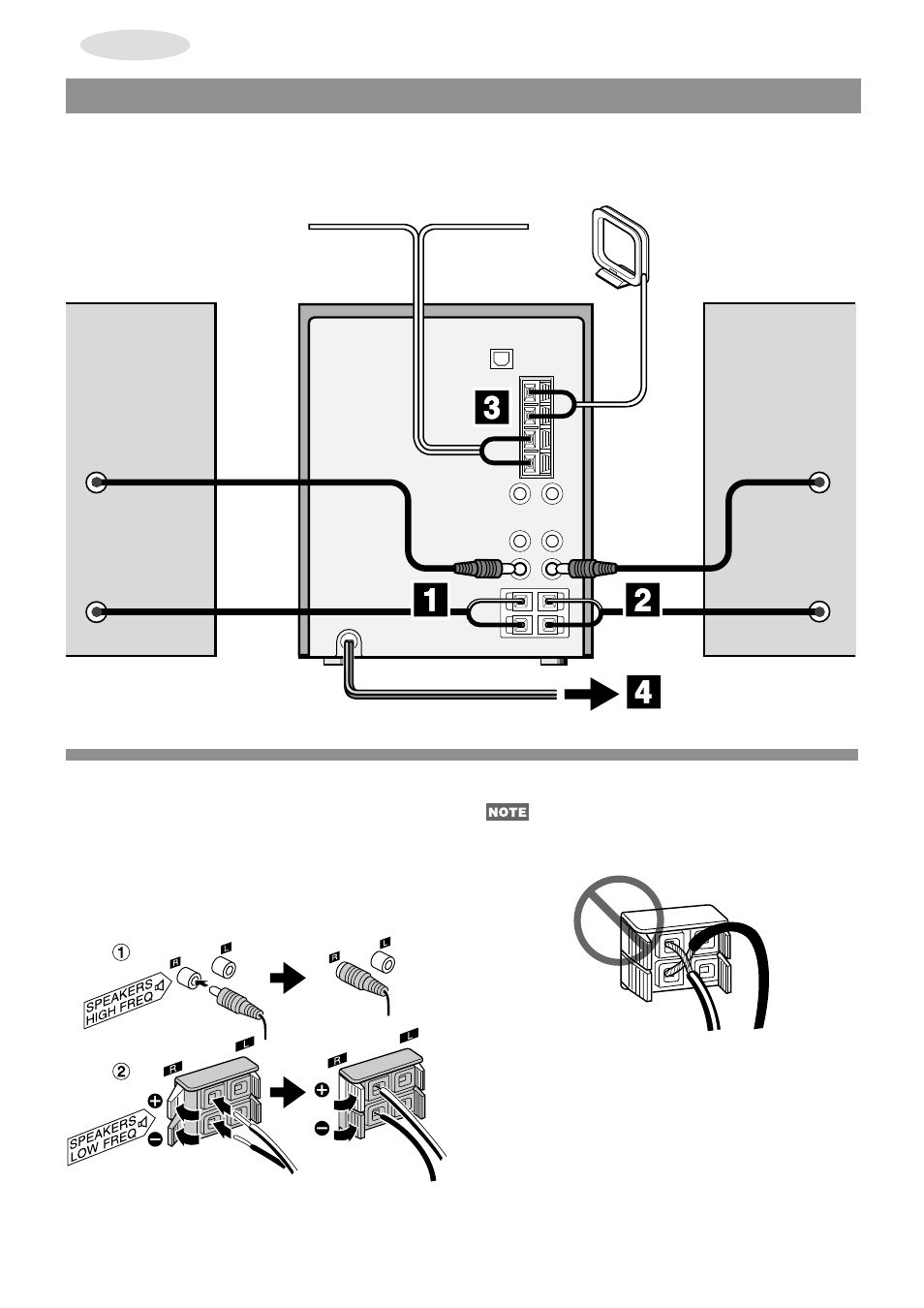

Connect the right speaker to the main unit.
1 Connect the speaker cord with the plug to the SPEAKERS
HIGH FREQ R terminal.
2 Connect the speaker cord with the white stripe to the
SPEAKERS LOW FREQ R 0 terminal and the black cord
to the 9 terminal.
• Be sure to connect the speaker cords correctly. Improper
connections can cause short circuits in SPEAKERS terminals.
2 2 2 2 2
Connect the left speaker to the main unit.
Connect the speaker cord with plug to the SPEAKERS HIGH
FREQ L terminal, and another speaker cord to the
SPEAKERS LOW FREQ L terminals in the same manner
as step 1.
IMPORTANT
Connect the speakers, antennas, and all optional equipment first.
Then connect the AC cord.
