Appendix A: AMX Lighting Curves
60 RE-DM4 and RE-DM6 RADIA Eclipse Dimmer Modules
Advance Mark VII Curve (6)
FIG. 58 shows the voltage output of Curve 6 applied to a dimmer. Curve 6 will smoothly dim the high end and
extend the low-end range of dimming. This curve can be useful for dimming applications using transformers
and requiring a more precise low end dimming range.
 Relay turn on level = 1%
 Dimming Range = 21 - 120 VAC.

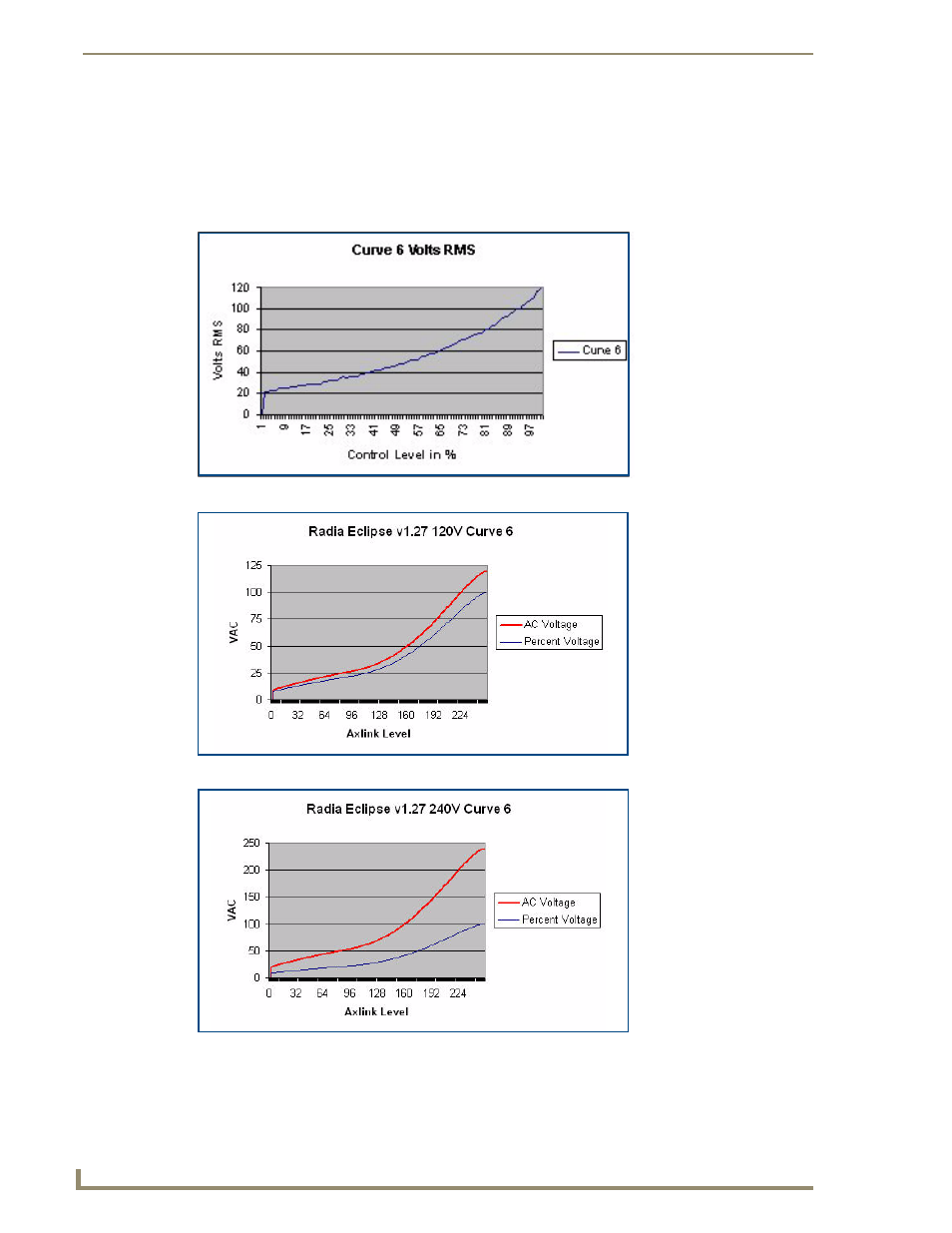

FIG. 58 Curve 6 Voltage output in Volts RMS
FIG. 59 Curve 6 at 120 VAC
FIG. 60 Curve 6 at 240 VAC
