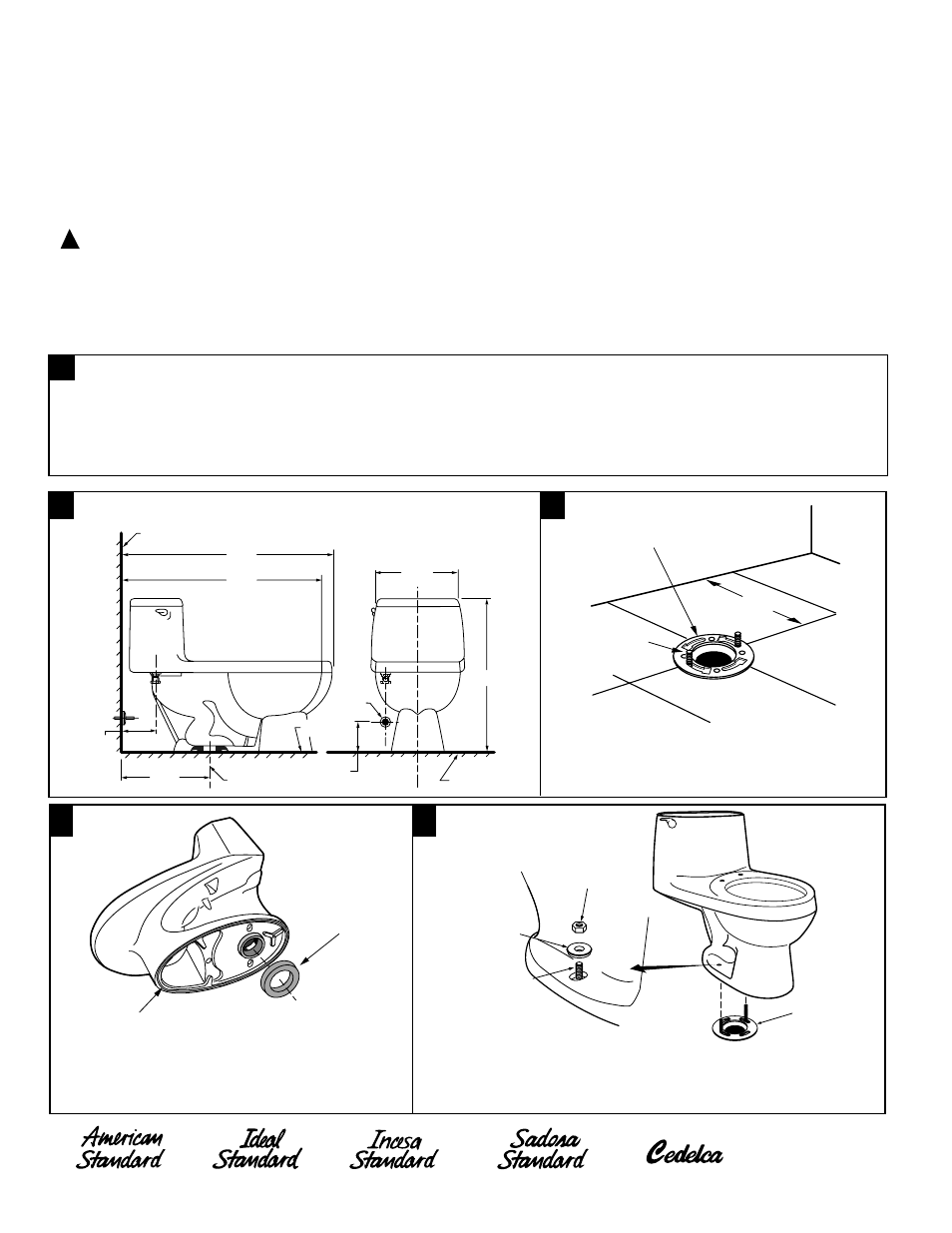

American Standard 2100 - Manual

RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver Adjustable Wrench Sealant Tape Measure
Hacksaw Wax Ring/Gasket Flexible Supply Tube Closet Bolts Carpenters Level
1 REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE:
Mounting surface must be clean and level before new toilet is installed!
INSTALL CLOSET BOLTS
Install closet bolts in flange channel, turn 90 , and slide
into place 6" (152 mm) apart and parallel to wall.
SAVE FOR FUTURE USE
3 2
CLOSET FLANGE
CLOSET BOLTS
7 3 0 4 8 1 - 1 0 0 R e v . C
A
Saniwares
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A m e r i c a n S t a n d a r d I n c .
© A m e r i c a n S t a n d a r d I n c . 2 0 0 2
!
NOTE: Pictures may not exactly define contour of china and components.
CADET 1.6 GPF ONE-PIECE TOILET
2099/2100
ROUGHING-IN DIMENSIONS:
NOTE:
Distance from wall to closet flange centerline must be as listed below:
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product
is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
INSTALLATION
INSTRUCTIONS
5 4
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent damage), and
install wax ring evenly around waste flange (horn), with
tapered end of ring facing toilet. Apply a thin bead of
sealant around toilet base. POSITION TOILET ON FLANGE
a.
Unplug floor waste opening and install toilet on closet flange so bolts project
through mounting holes.
b. Loosely install retainer washers and nuts. Side of washers marked "THIS
SIDE UP"
must face up!
WAX RING
SEALANT
WASHER
NUT
FLANGE
BOLT
T HIS SIDE U P
762mm
(30)
679mm
(26-3/4)
397mm
(15-5/8) 711mm
(28)
FINISHED WALL
305mm
(12)
C/L OF OUTLET
FINISHED
FLOOR
140mm
(5-1/2)
SUPPLY AS
REQ'D
*
FINISHED
FLOOR
79mm
(3-1/8)
Model 2100 - Elongated w/Seat, Model 2099 - Round Front, Seat Not Included
