Ar ch ive d – Seametrics EX80 Series v.1 User Manual
Page 6
INSTALLATION
Caution: These flow sensors are not recommended for installation down-
stream of the boiler feedwater pump where installation fault may expose
the flow sensor to boiler pressure and temperature. Maximum recom-
mended temperature is 130
°F (Plastic), 200°F (Metal).

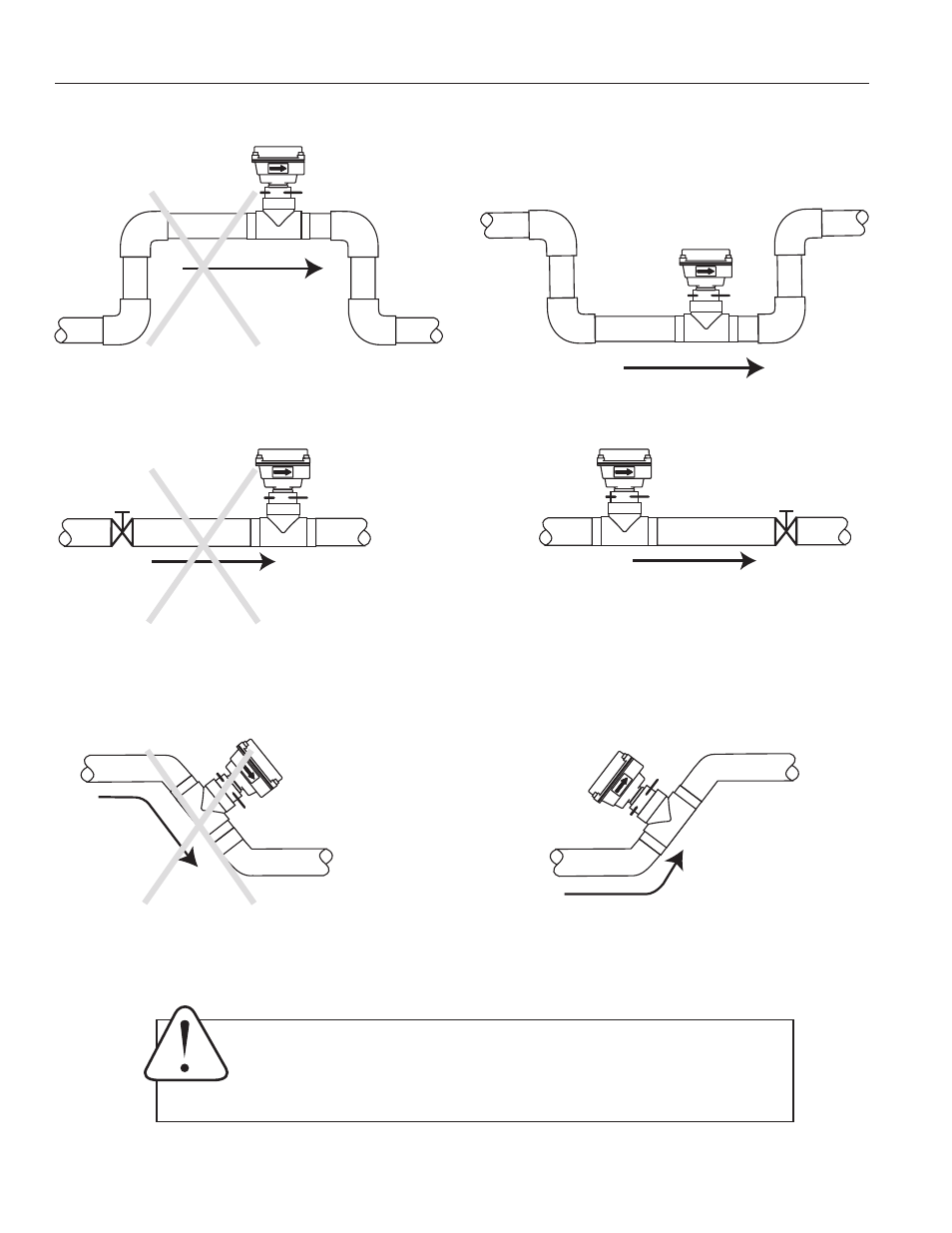

CORRECT AND INCORRECT INSTALLATIONS
CORRECT
INCORRECT
CORRECT
INCORRECT
Page 4
CORRECT
INCORRECT
Allows air pockets to form at sensor
Ensures full pipe
Post-valve cavitation can create air pocket
Keeps pipe full at sensor
Air can be trapped
Allows air to bleed off
AR
CH
IVE
D
(Includes Dates 6/14/04 to 5/05)
