Seametrics IP800-Series User Manual
Page 7

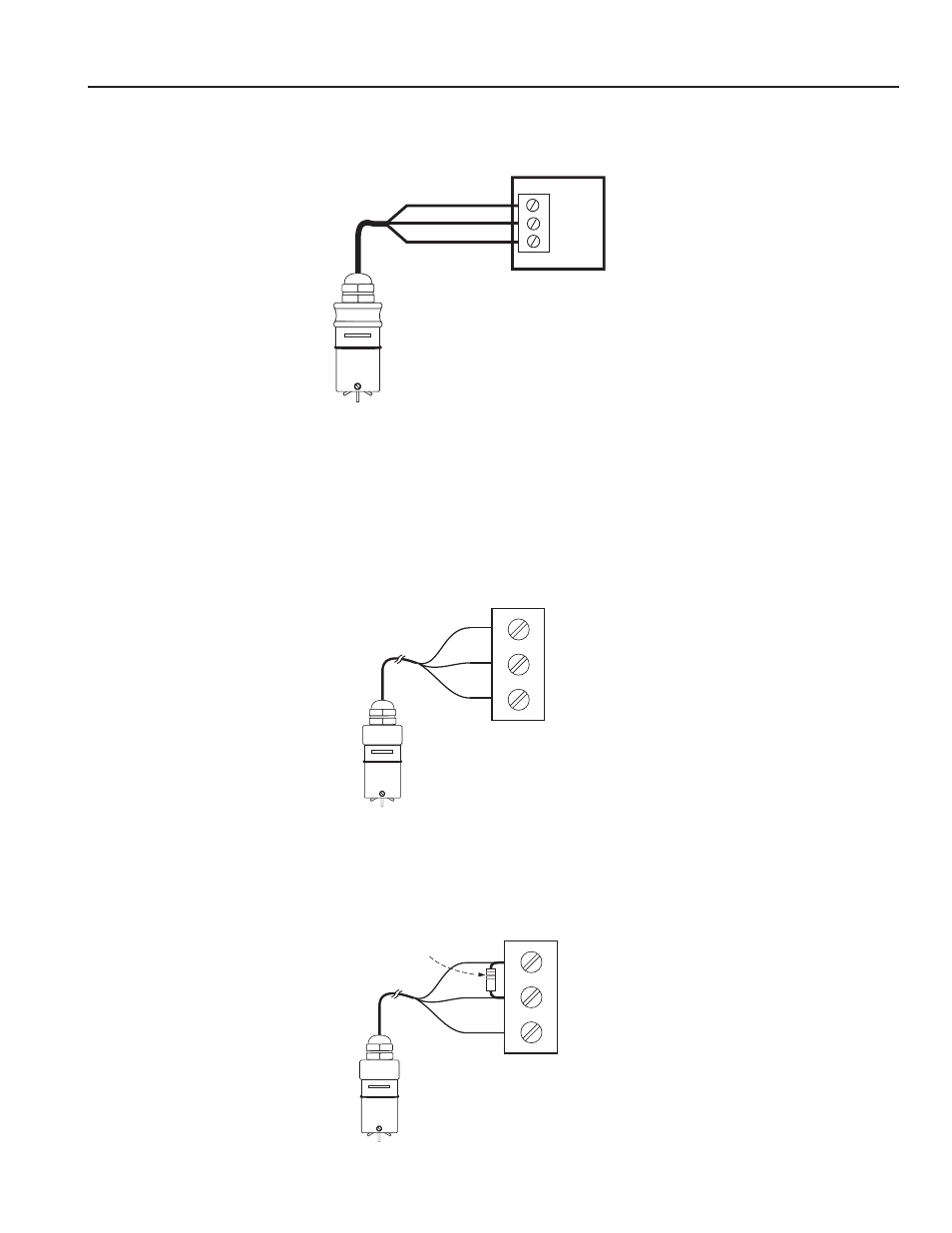

CONNECTION DIAGRAMS
PLC's and other non Seametric Controls
All Seametric Controls (FT415/FT420/AO55)
(Except FT520)
Red
White
Black
Signal
+DC
Voltage
Ground
Figure 2
Input Designed for Current
Sinking (NPN) Devices
NPN
Device
Red
White
Black
Signal
+DC
Voltage
Ground
Figure 3
Input Designed for Current
Sourcing (PNP) Devices
2.2k Ohm Pull-up
Resistor
NPN
Device
Page 7
Sensor
Inpu
t
+
-
s
Black (-)
White
(signal)
Red (+)
6-24 Vdc
Figure 1
