Ip800-series parts list – Seametrics IP800-Series User Manual
Page 10
OPTIONAL
12
13
15
5
6
7
11
7
8
9
10
4
1
2
3
MODEL
SERIAL
14
MODEL
SERIAL
16
HPS

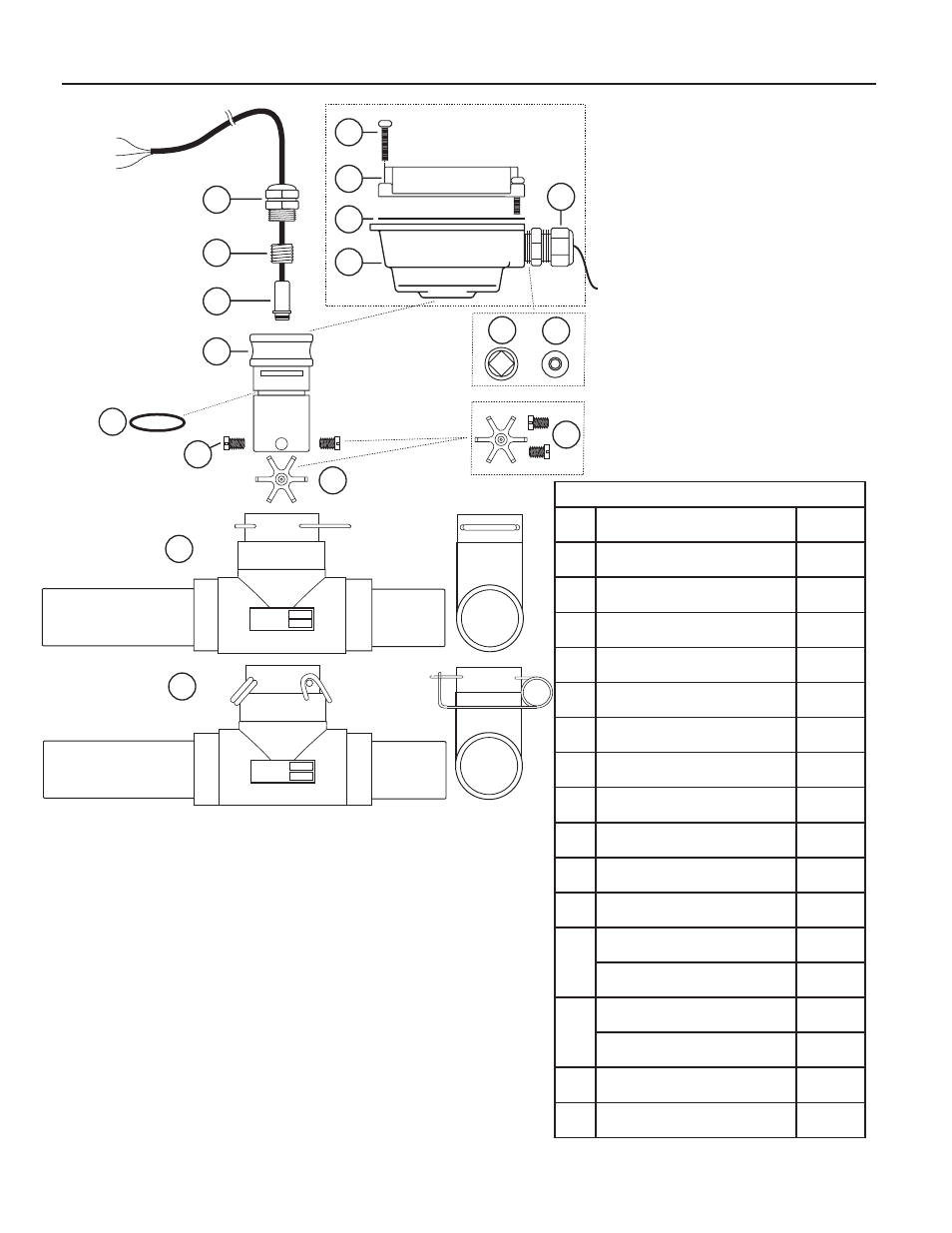

PARTS EXPLOSION
* Consult distributor
Page 10
IP800-Series Parts List
1
Upper Housing
100662
2
Gasket
100411
3
Lower Housing
100502
4
Housing Screw Assembly
100414
5
Plug, Steel
100360
6
Plug, Plastic
100364
7
Strain Relief
101850
8
Sensor Retainer
100298
9
Sensor, Low Power
100419
10 Body
*
11 O-Ring, EPDM
100264
12 Bearing Screws (2)
100316
13
Rotor (Nickel/Carbide Shaft)
100035
Rotor (Ceramic Shaft)
100036
14
Rotor Repair Kit (Kynar/Carbide)
100317
Rotor Repair Kit (Kynar/Ceramic
100043
15 Standard Fitting
*
16 High Pressure Fitting
*
