DMC-1400 Calibrator

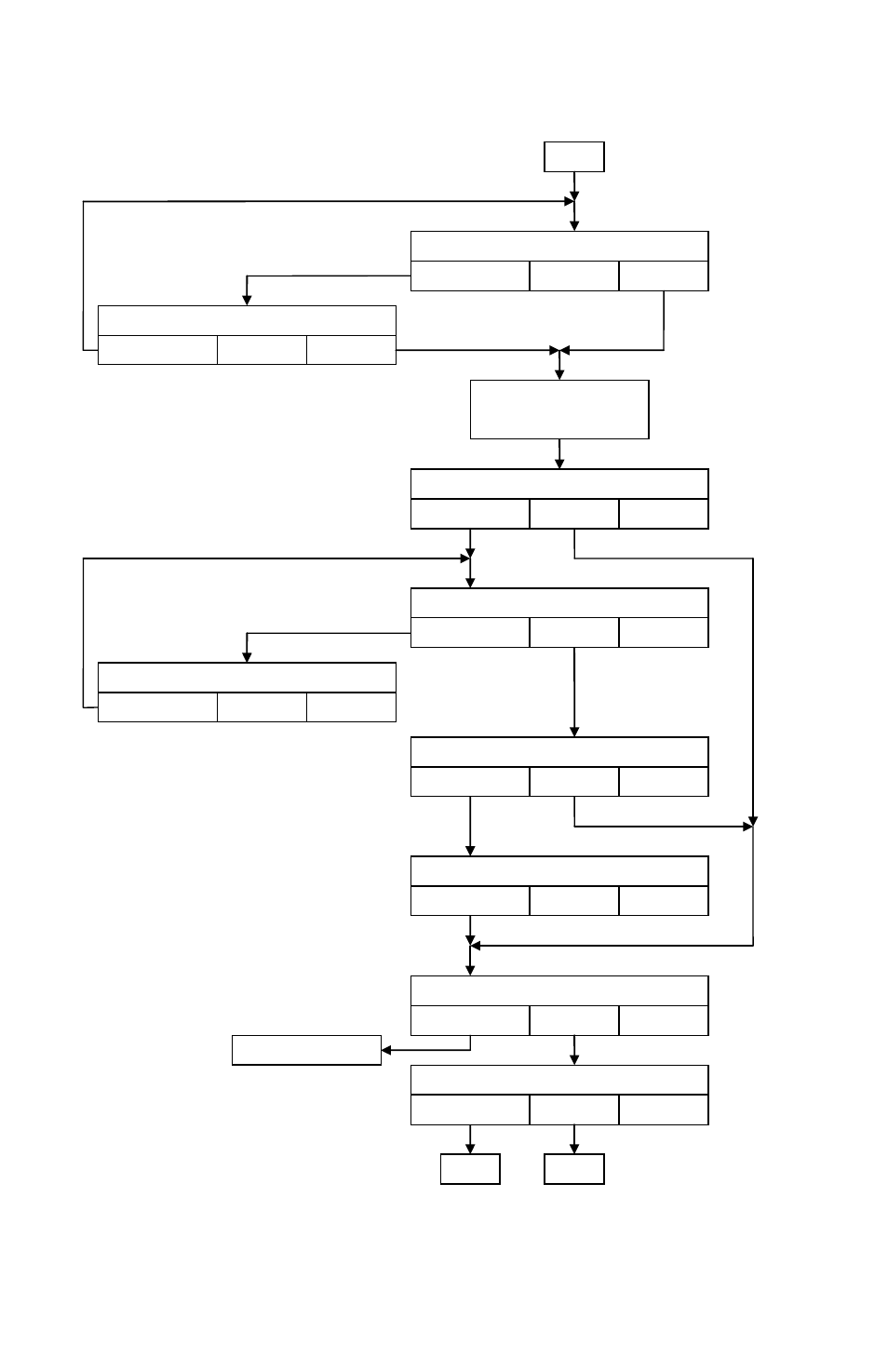

Revised Document Mode Flowchart
Version 3.00, August 26, 2007
Page 6 of 12
C
Tag ID field selection
SELECT NEXT SAVE
Tag field data entry
DONE NEXT SAVE
Save As Found data
and time stamp
Validate test results?
YES NO
Tolerance field selection
SELECT DONE
Tolerance field data entry
DONE
Show test results?
YES NO
View test results
DONE
D
Save AF results as AL?
YES NO
Adjust Instrument?
YES NO
Document Menus
E
DMC-1400 Calibrator
Revised Document Mode Flowchart
Version 3.00, August 26, 2007
Page 6 of 12
C
Tag ID field selection
SELECT NEXT SAVE
Tag field data entry
DONE NEXT SAVE
Save As Found data
and time stamp
Validate test results?
YES NO
Tolerance field selection
SELECT DONE
Tolerance field data entry
DONE
Show test results?
YES NO
View test results
DONE
D
Save AF results as AL?
YES NO
Adjust Instrument?
YES NO
Document Menus
E
