The entire length of the device is made up of the electrical connection (a), the transmitter
housing (e) and the process connection (k).
With cooling fins (optional) additional 32 mm / 1.26".

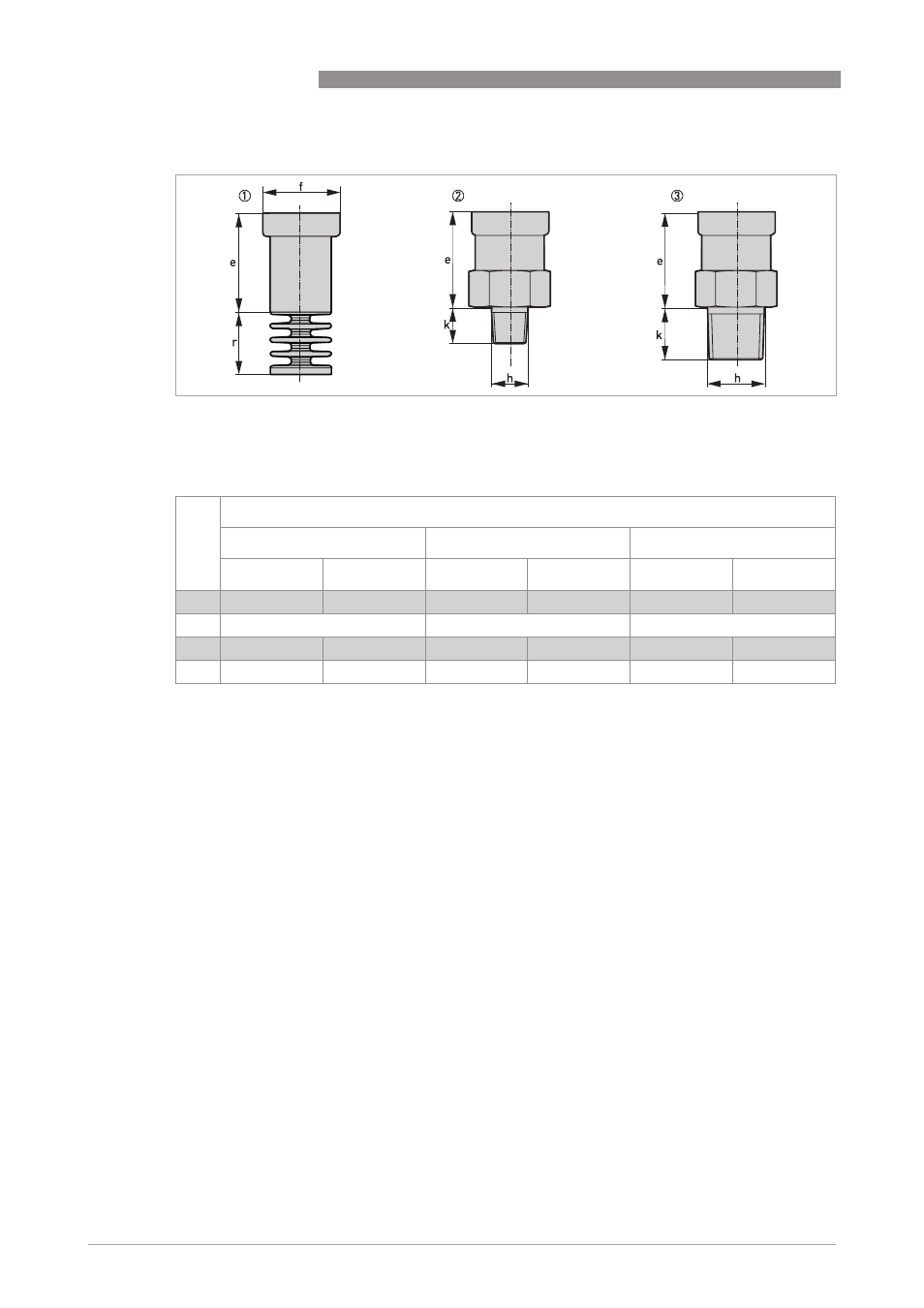

Pressure transmitter with cooling fins and threaded connection (ANSI)
Figure 6-3: Dimensions for pressure transmitter with cooling fins and threaded connection (ANSI)
1 Cooling fins (optional)
2 Thread ANSI 1/4 NPT-M
3 Thread ANSI 1/2 NPT-M
Dimensions
1 2 3
[mm] ["] [mm] ["] [mm] ["]
e 50 2 50 2 50 2
h - 1/4 NPT 1/2 NPT
k - - 14 0.55 20 0.79
r 32 1.26 - - - -
