TECHNICAL DATA
22
OPTIBAR P 1010 C
www.krohne.com 06/2014 - 4002622102 - MA OPTIBAR P1010C R02 en
6.2 Dimensions and weights
Connection plug and field housing

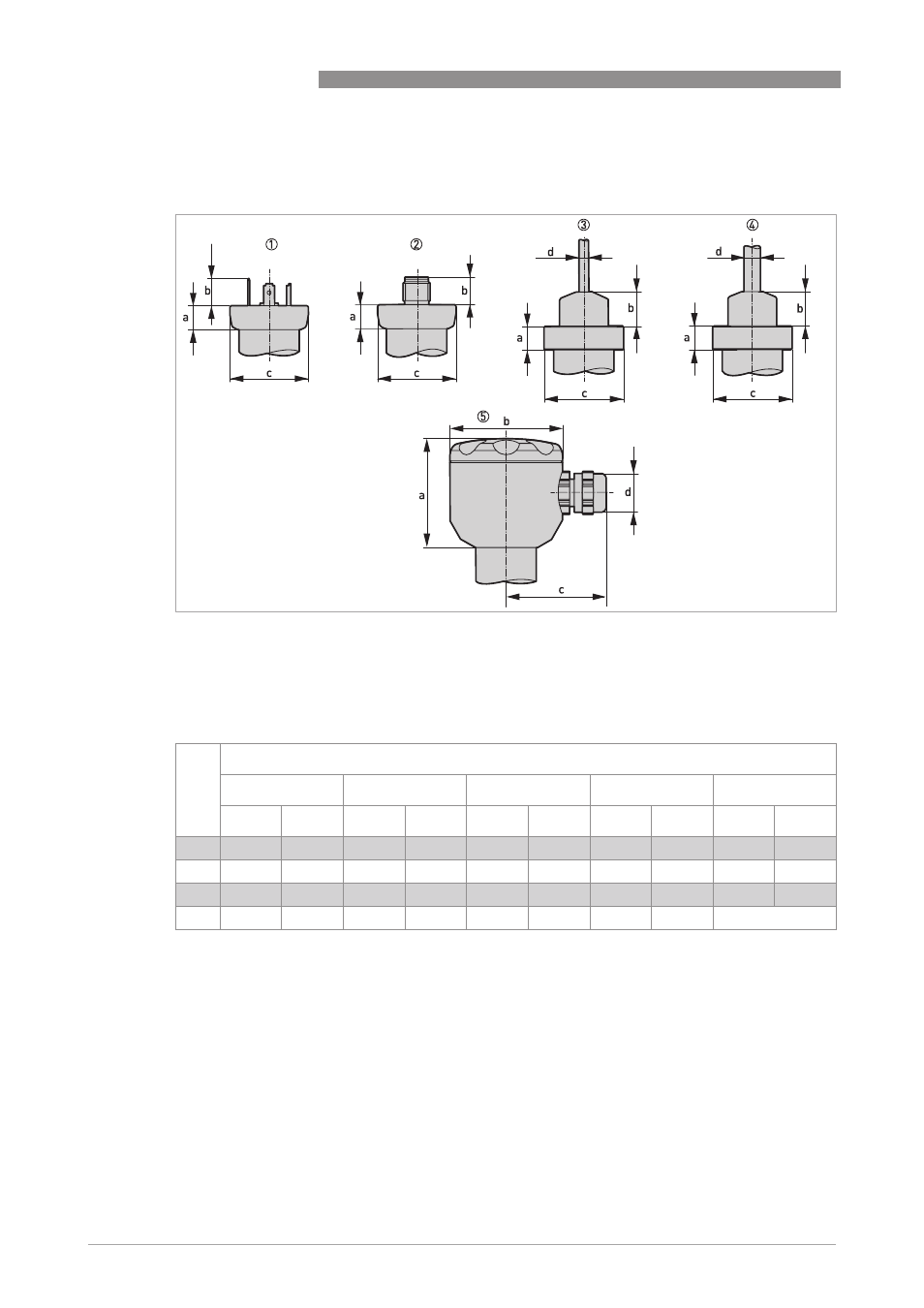

Figure 6-1: Dimensions for connection plug and field housing
1 ISO 4400 (cable connector is part of delivery)
2 M12x1 (4-pin)
3 Cable output
4 Cable output, cable with venting
5 Field housing
Dimensions
1 2 3 4 5
[mm] ["] [mm] ["] [mm] ["] [mm] ["] [mm] ["]
a 10.5 0.4 10.5 0.4 10.5 0.4 10.5 0.4 48 1.9
b 12 0.47 10 0.39 Ш4.3 Ш0.17 7.4 0.29 Ш49.5 Ш1.95
c Ш34.5 Ш1.36 Ш34.5 Ш1.36 Ш35 Ш1.38 Ш35 Ш1.38 44 1.7
d - - - - 15 0.59 15 0.59 M12x1.5
