ELECTRICAL CONNECTIONS
14
OPTIBAR P 1010 C
www.krohne.com 06/2014 - 4002622102 - MA OPTIBAR P1010C R02 en
4.1 Safety instructions
4.2 Terminal assignment
Devices with cable glands and cable connector
Ensure that the outer diameter of the cable used is within the permissible clamping range. Also
ensure that it is sitting firmly in the cable gland with no gaps!
DANGER!
All work on the electrical connections may only be carried out with the power disconnected. Take
note of the voltage data on the nameplate!
DANGER!
Observe the national regulations for electrical installations!
DANGER!
For devices used in hazardous areas, additional safety notes apply; please refer to the Ex
documentation.
WARNING!
Observe without fail the local occupational health and safety regulations. Any work done on the
electrical components of the measuring device may only be carried out by properly trained
specialists.
INFORMATION!
Look at the device nameplate to ensure that the device is delivered according to your order.
Check for the correct supply voltage printed on the nameplate.
WARNING!
Install the device only when depressurised and without power!

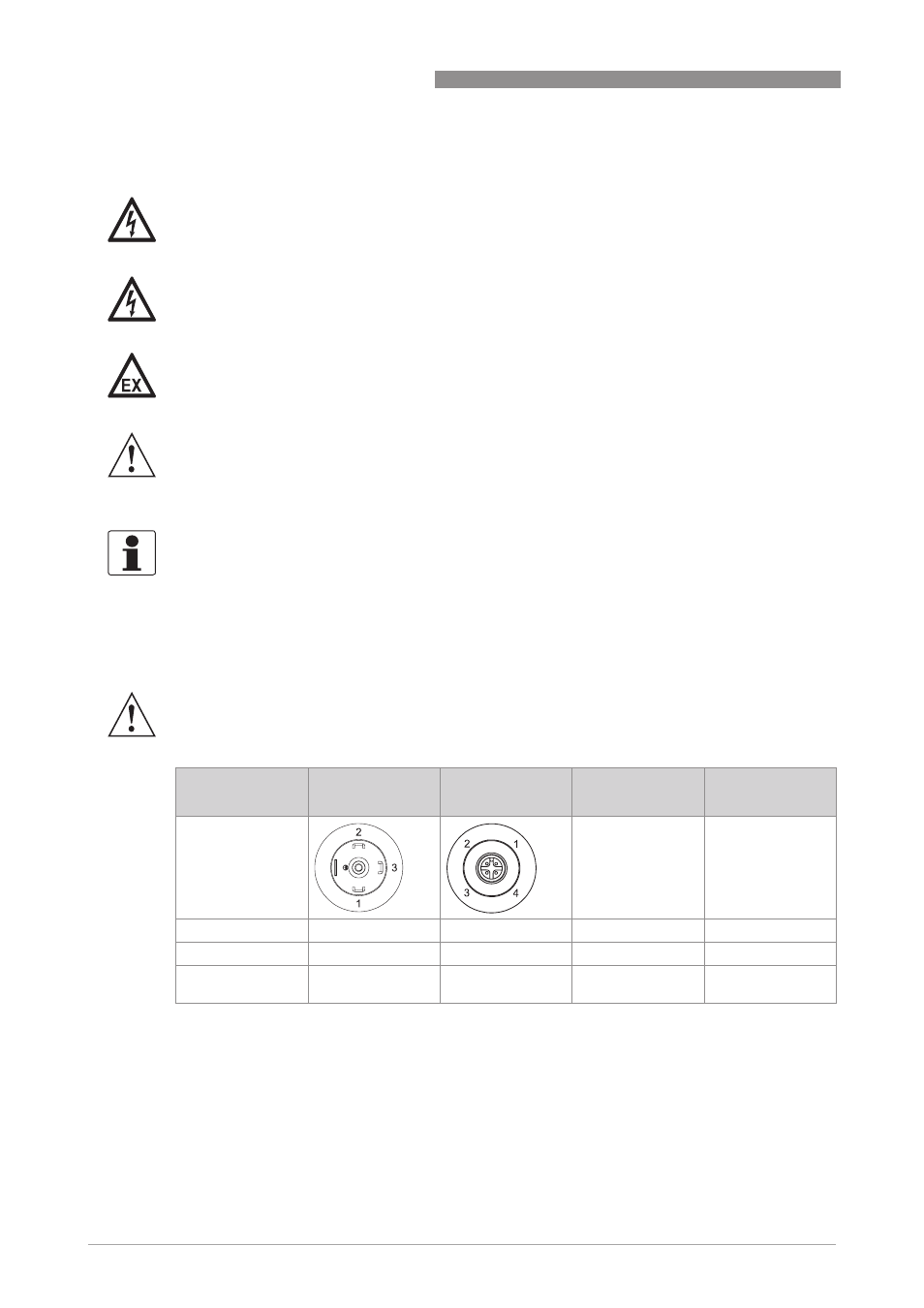

Electrical
connections ISO 4400 M12x1 (4-pin) Field housing Cable colours
(DIN 47100)
- - -
Supply + 1 1 IN + wh (white)
Supply - 2 2 IN - bn (brown)
Shielding Ground contact 4 - gn/ye
(green/yellow)
