4 ifc090-ff block description – KROHNE IFC 090 i Converter FOUNDATION FIELDBUS User Manual
Page 9

Supplementary Documentation
Page 9 of 44
IFC090, IFC090 i with FF
IFC090-FF Block Description
IFC090 FF 01/2006
KROHNE Messtechnik GmbH & Co. KG · Ludwig-Krohne-Str. 5 D-47058 Duisburg
Tel.: 0203-301 309 Fax: 0203-301389 · E-mail: [email protected]
4 IFC090-FF Block Description
The IFC090-FF consists of the following blocks (see figure 2):
• 1 Resource Block,
• 1 Transducer Block (standard flow),
• 1 Analog Input Block (flow value) and
• 2 Integrator Blocks (1 for positive- and 1 for negative flow integration)

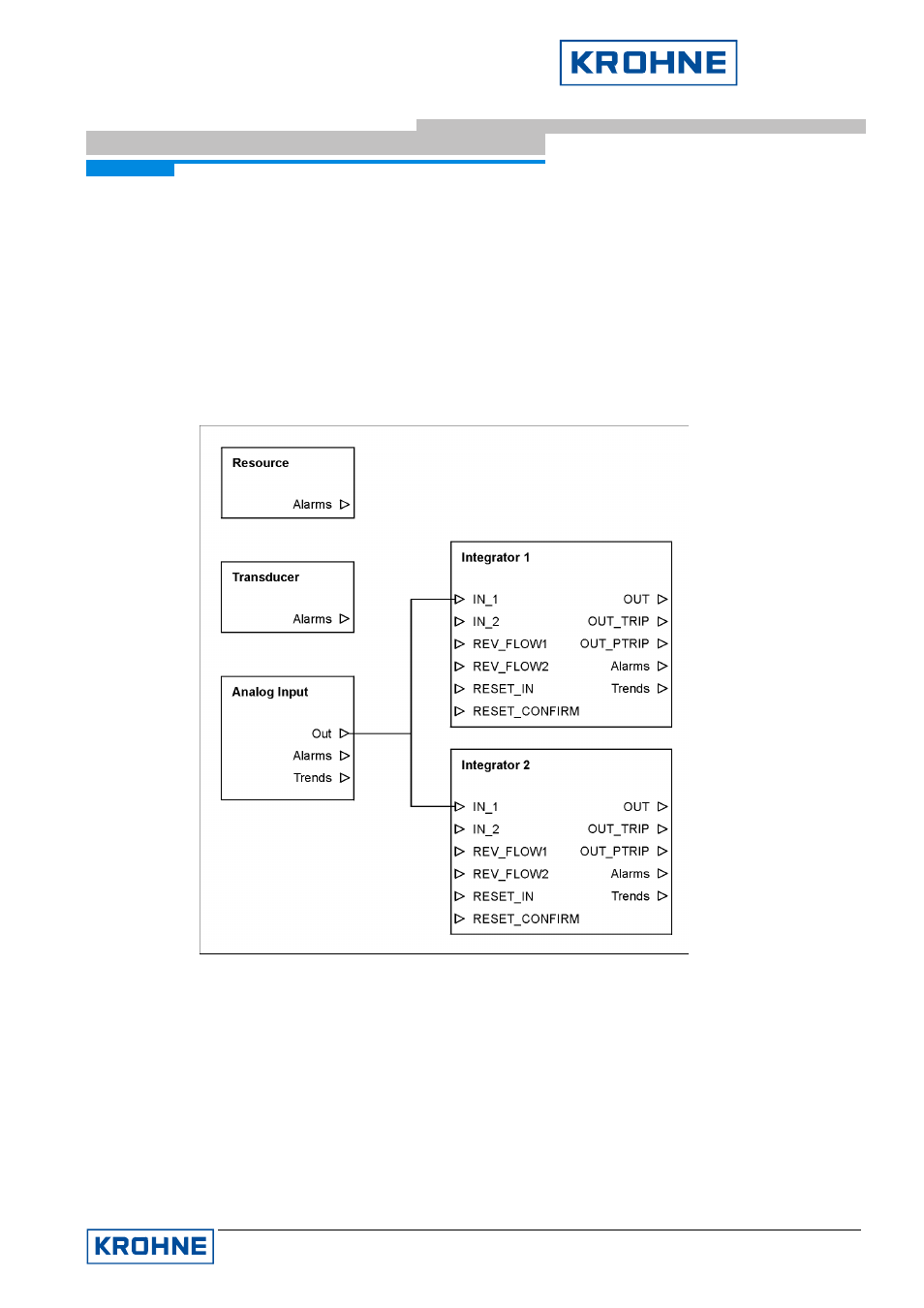

Figure 2: IFC090-FF block scheme
In the following, the different block parameters are described in detail.
