4.4 Integrator Blocks 1 and 2 (Flow(+)- and Flow(-)-Totalizer)
Table 4 lists the Integrator Blocks parameters in alphabetical order (this list gives a description of the various
parameters only; see chapter below for a detailed description of how to configure these parameters). The
descriptions are valid for both Integrators, ‘Flow(+) Totalizer’ and ‘Flow(-) Totalizer’ unless expressively pointed
out:

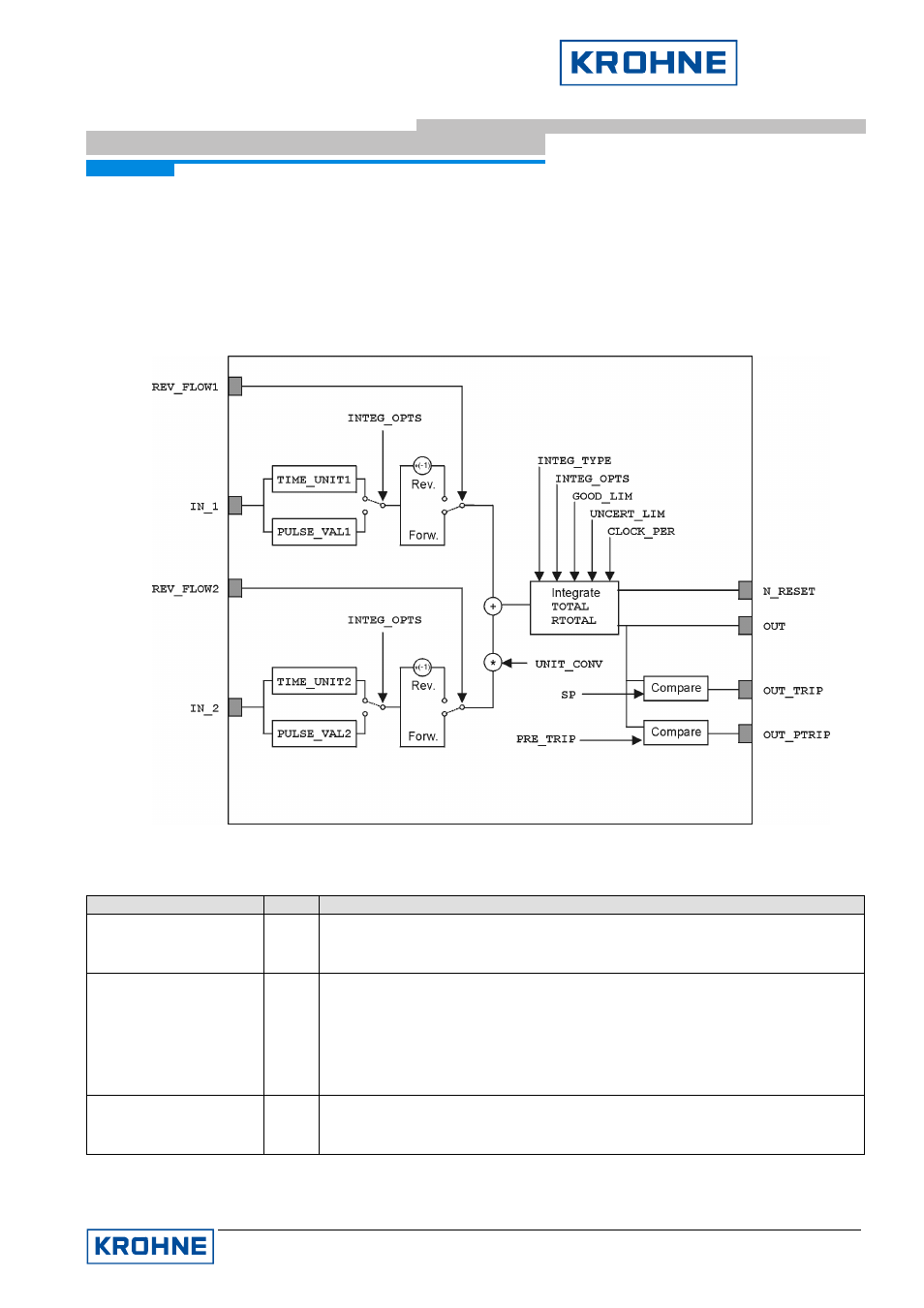

Figure 2: IFC090-FF Integrator Block
Parameter Access Description
ALERT_KEY R/W ALERT_KEY parameter contains the identification number of the plant unit. It
helps to identify the location (plant unit) of an event. The handling of this
parameter is up to the control system or control person, respectively.
BLOCK_ALM R
Display of current block state. Field subcode gives information about the state
current errors. The following errors can occur:
Configuration
Error
Block was put Out of Service
The remaining fields give information about the state and the occurrence of
this alarm.
BLOCK_ERR R
Display of active block errors. The following errors are possible:
Out of Service block is in Out of Service mode
Memory Failure memory of device has errors
