A.1 LAN port for server management
The ASUS server motherboards that support the ASMB-LE comes with two
LAN (RJ-45) ports: one for network connection and the other for server
management. You must identify and use the LAN port for server
management to connect the remote server to the local/central host (direct
LAN connection) or to the network hub or router.

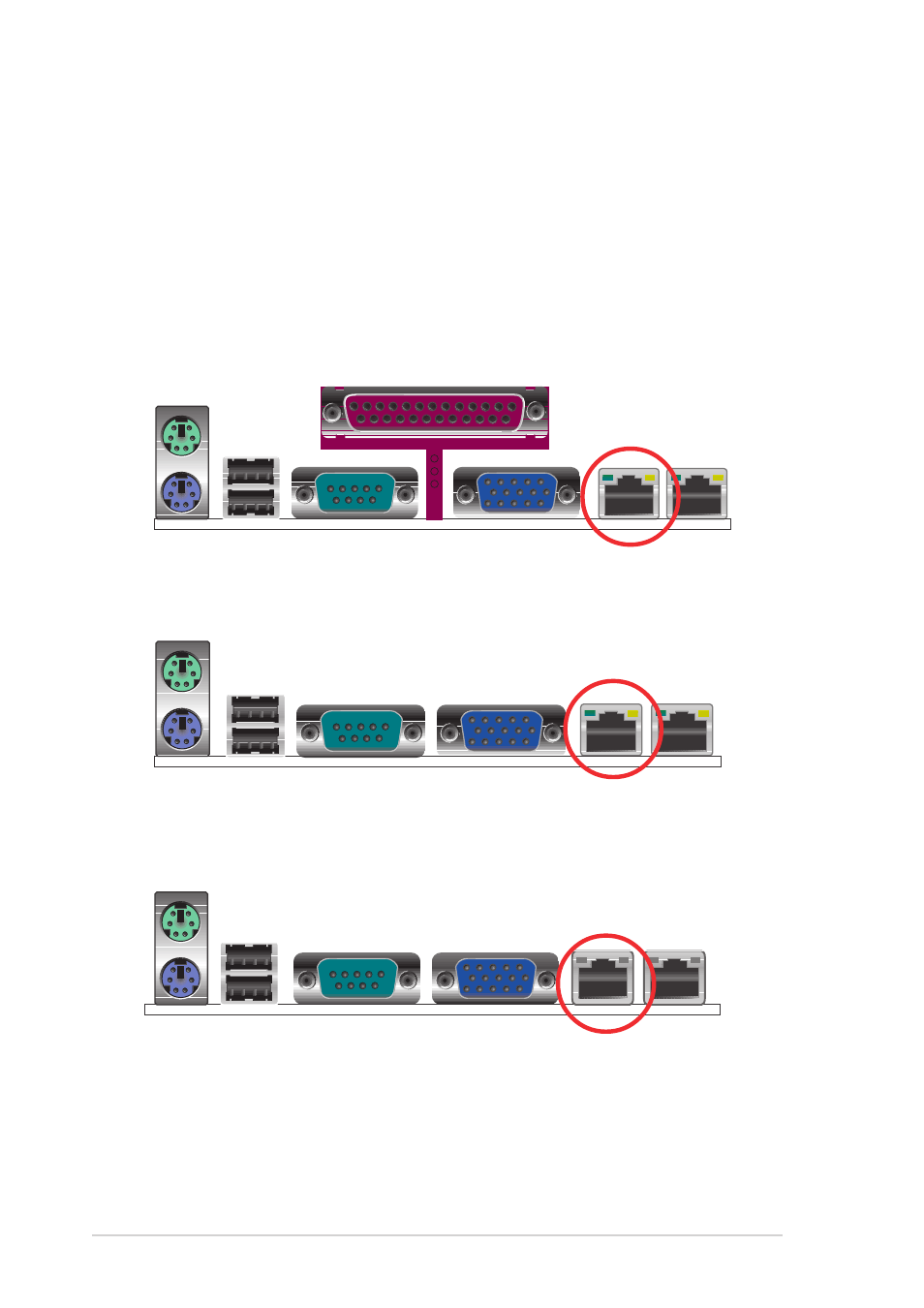

Refer to the illustrations below to identify the LAN port for server
management on different server motherboards.
NCL-DS motherboard NCL-DS motherboard NCL-DS motherboard NCL-DS motherboard NCL-DS motherboard
PCH-DR motherboard PCH-DR motherboard PCH-DR motherboard PCH-DR motherboard PCH-DR motherboard
NCCH-DR motherboard NCCH-DR motherboard NCCH-DR motherboard NCCH-DR motherboard NCCH-DR motherboard
