Asus ASMB-LE - Manual (Page 32)

3 - 8 3 - 8 3 - 8 3 - 8 3 - 8 C h a p t e r 3 : S o f t w a r e s u p p o r t C h a p t e r 3 : S o f t w a r e s u p p o r t C h a p t e r 3 : S o f t w a r e s u p p o r t C h a p t e r 3 : S o f t w a r e s u p p o r t C h a p t e r 3 : S o f t w a r e s u p p o r t

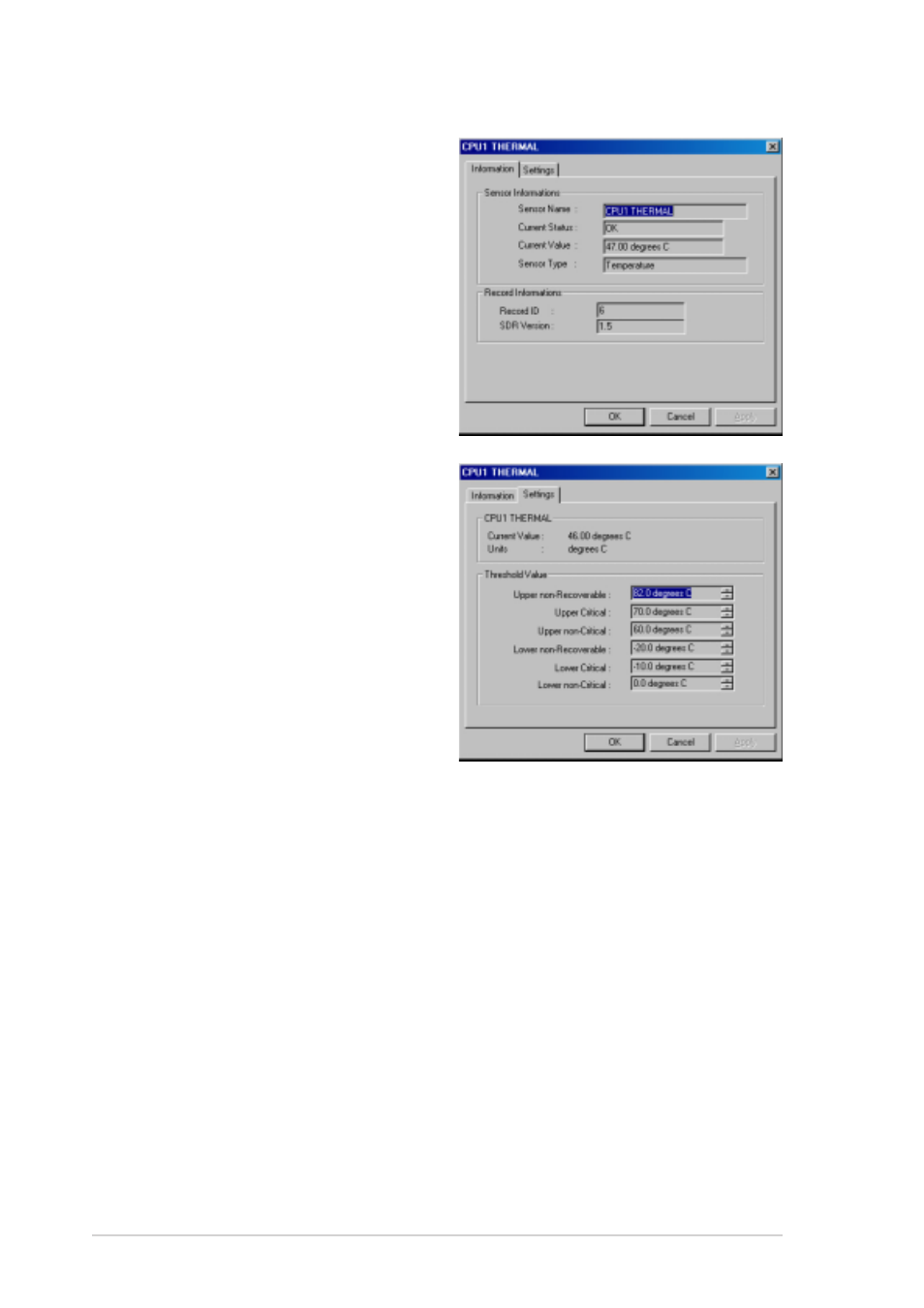

3. Click M o r e M o r e M o r e M o r e M o r e. A sensor window
appears displaying additional
information on the sensor.
The I n f o r m a t i o n I n f o r m a t i o n I n f o r m a t i o n I n f o r m a t i o n I n f o r m a t i o n tab displays
basic sensor information
including the sensor name,
current status, current value,
and sensor type.
The tab also displays the
sensor record ID and SDR
version.
4. Click the S e t t i n g s S e t t i n g s S e t t i n g s S e t t i n g s S e t t i n g s tab to
adjust the sensor threshold
values. Click on the up/down
arrow button after each
threshold value to adjust.
Click O K O K O K O K O K to close the window.
