INSTALLATION

2

11

OPTISWIRL 4070

www.krohne.com

06/2010 - 4000122102 - QS OPTISWIRL R04 en

2.3.5 Turning the connection housing

• Disconnect the power supply from the measuring device.
• Loosen the four screws 1 on the rear side of the connection housing.
• Lift the connection housing and turn it to the required position in 90° steps.
• Screw the connection housing back on.

DANGER!
All work on the device electrics may only be carried out by appropriately trained personnel. The
regional occupational health and safety directives must always be observed.

CAUTION!
Do not damage the electrical cable by overtwisting it.
Do not remove the electrical connector.

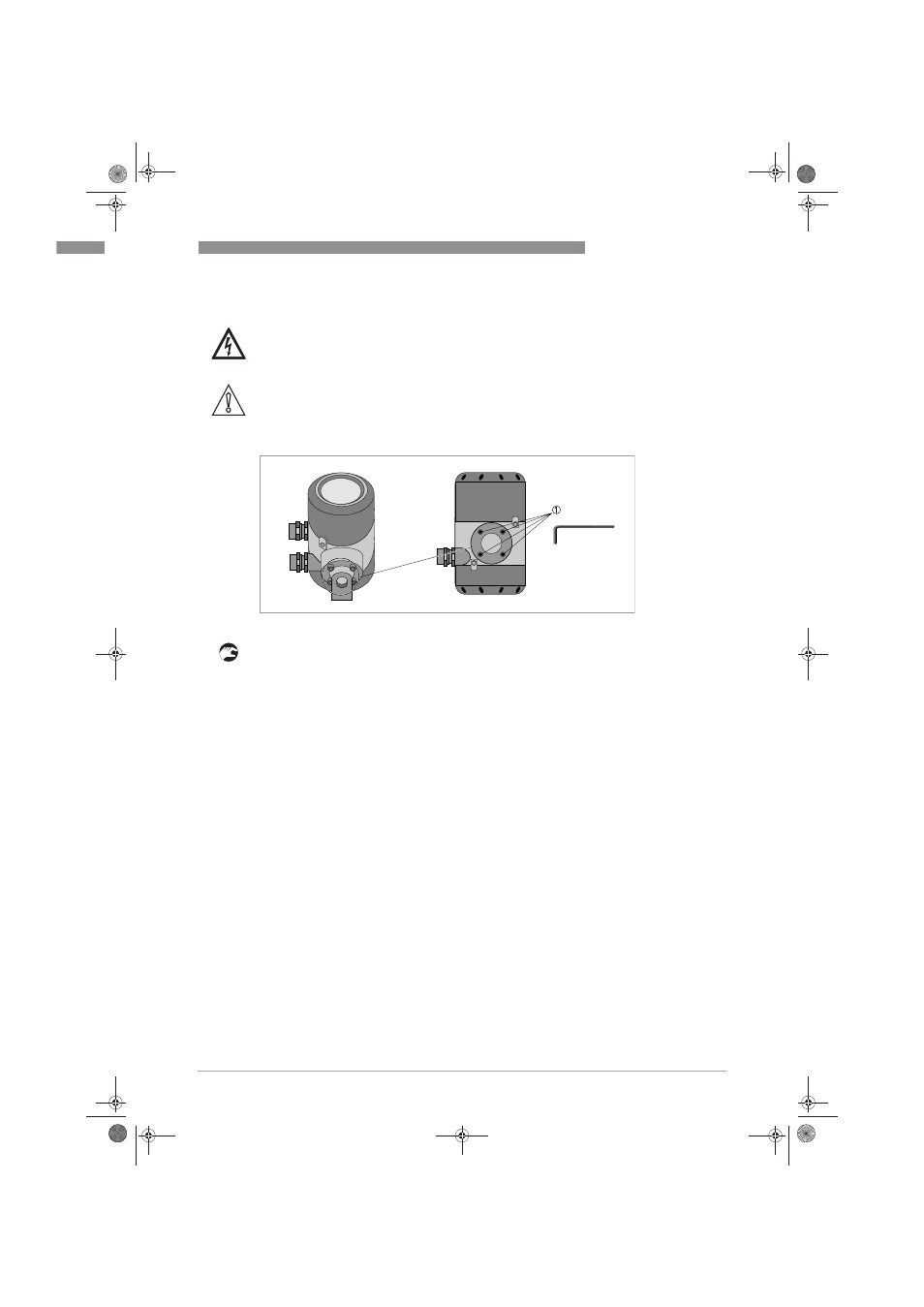

Figure 2-6: Allen screws on connection housing
