AT&T Partner II - Manual (Page 32)

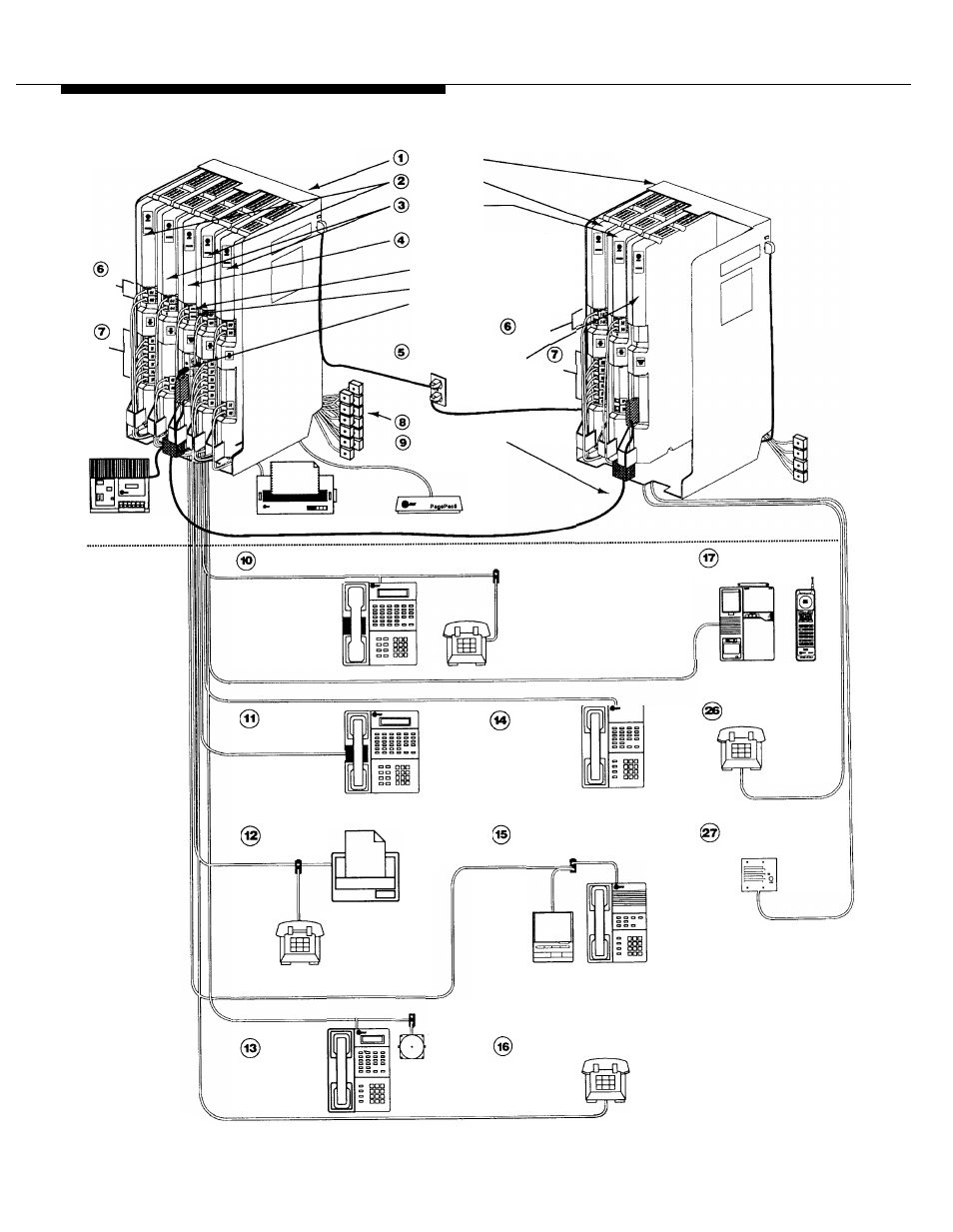

EQUIPMENT
CONTROLLER
Primary Carrier Backplanes
206 Modules
400 Modules
Expansion Carrier
Primary Processor Module
(center slot)
■ PAGE Jack
■ SMDR Jack
■ MUSIC ON HOLD Jack
Line
Jacks
Line
Jacks
Ext.
Jacks
Expansion Processor
Module (center slot)
Ext.
Jacks
Network Interface Jacks
Expansion Cable
AT&T Magic
on Hold ®
AT&T 572 Serial Printer AT&T PagePac6 ® Plus
Extension Jack 10 Extension Jack 17
EXTENSIONS 267F2
Bridging Adapter
MLS-34D
Display
Phone
Standard Phone
for Power
Faillure Operation
MLC-6
Cordless Phone
Extension Jack 26
Extension
Jack 11 Extension
Jack 14
MLS-34D
Display
Phone
MLS-12
Phone
Hotline
Phone
Extension
Jack 12
Extension
Jack 15 Extension
Jack 27
267F2 Bridging
Adapter
267F2
Bridging
Adapter
Doorphone
Fax Machine
Personal
Answering
Machine
Standard
Phone MLS-6
Phone
267F2
Bridging
Adapter
Extension
Jack 13
Extension
Jack 16
Bell
MLS-12D
Standard
Phone
Phone
Installing the Equipment 2-7
