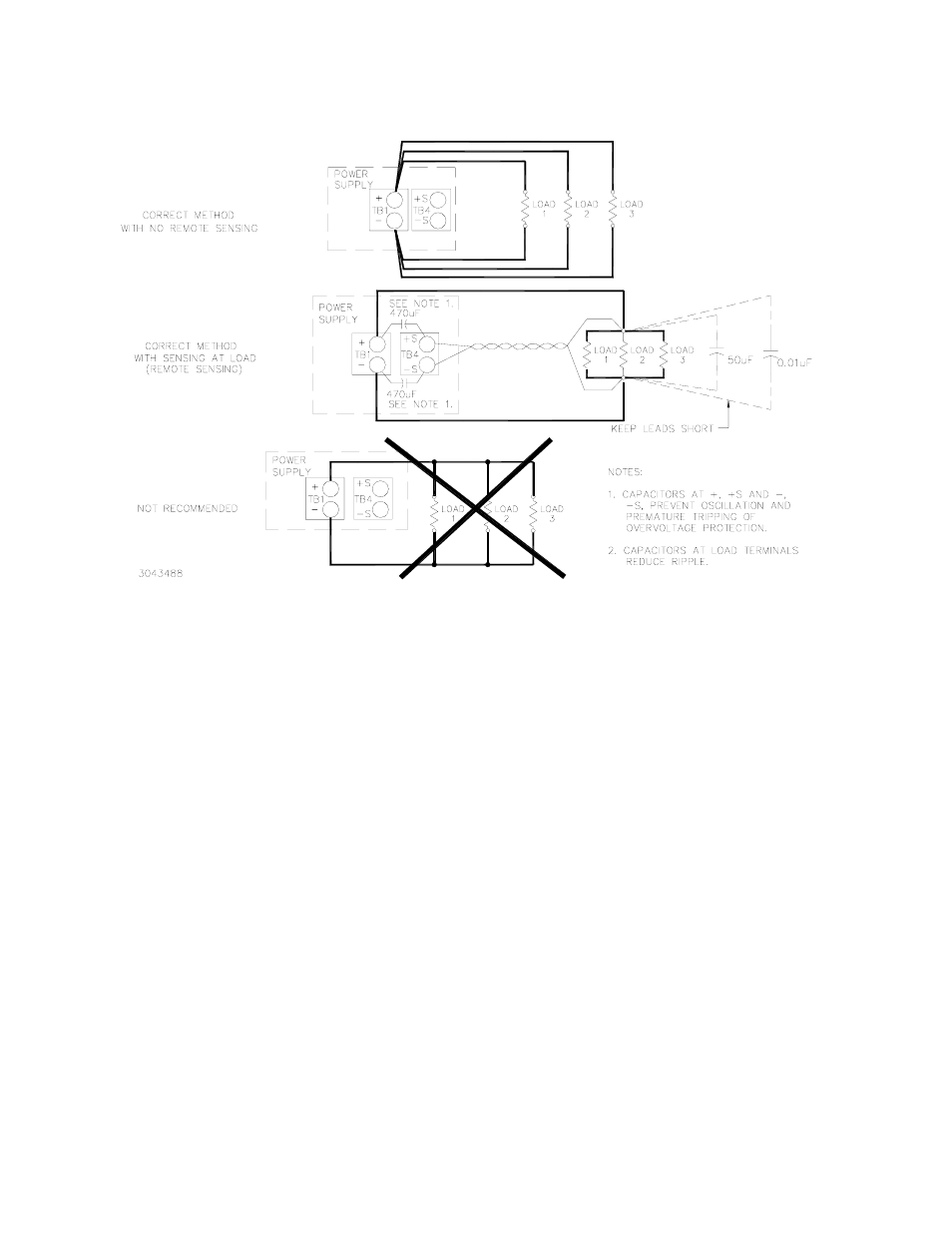

FIGURE 1. LOAD CONNECTIONS
V — OPERATION
POWER OK: When output voltage is available, the out-
put at TB5 is available to directly drive an external LED to
indicate power is on.
AUXILIARY FAN: When output voltage is available,
the +12V output at TB3 is available to drive an external
cooling fan.
VOLTAGE ADJUST: The Output Voltage Adjust trim-
mer (see Figure 2) allows adjustment of the primary out-
put voltage within the range specified in Table 1.
PARALLEL OPERATION: Parallel connection of
RMW 300W units is not supported.
