228-1410 REV 2 051006
KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL (718) 461-7000 " FAX (718) 767-1102
http://www.kepcopower.com " email: [email protected]

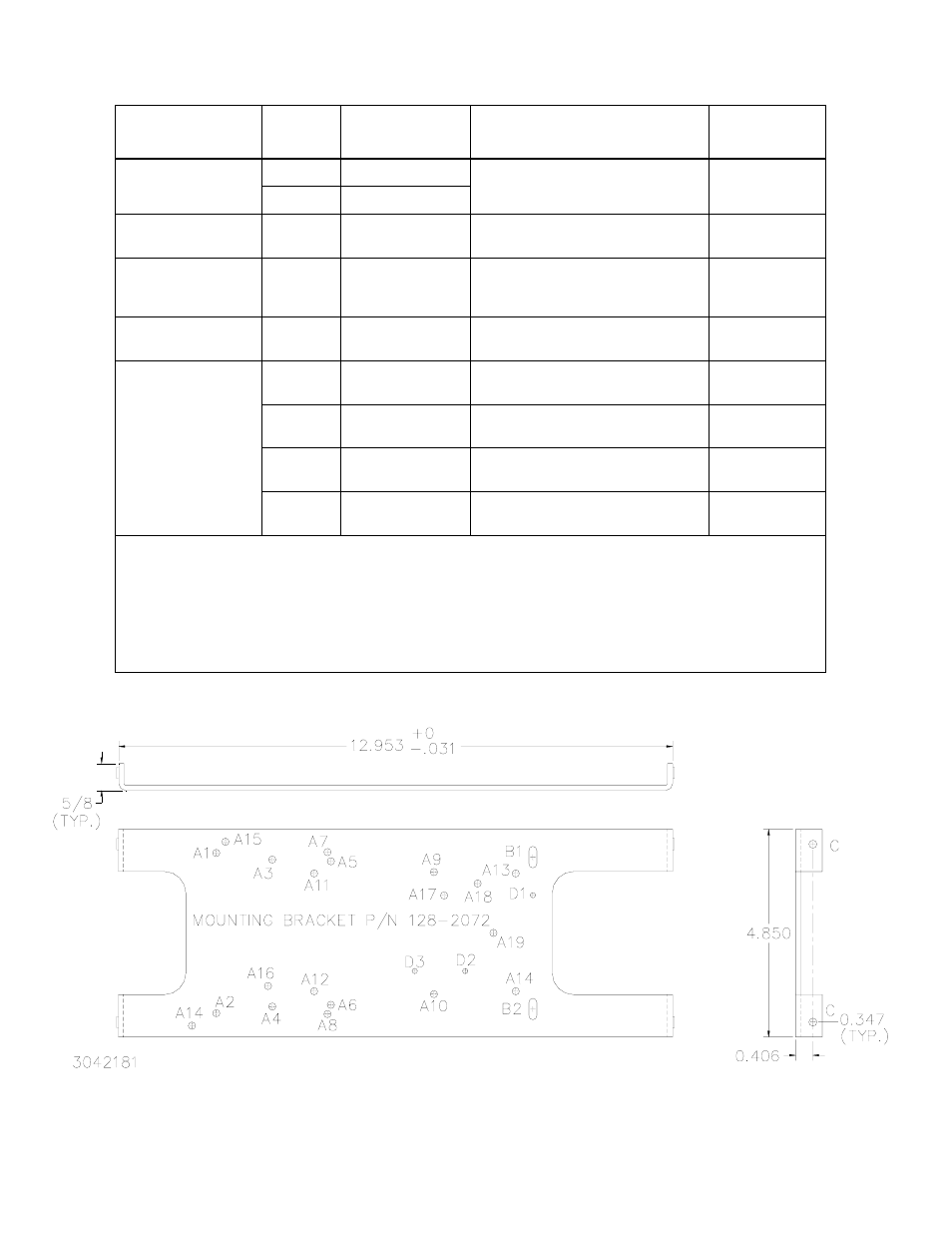

FIGURE 1. MECHANICAL OUTLINE OF KEPCO MOUNTING BRACKET
MODEL RAB 39-40FMP, RAB 39-40MRW, RAB 39-40KRW, RAB 39-40RKW3 AND RAB 39-40RTW
TABLE 2. MOUNTING POWER SUPPLY TO BRACKET
POWER SUPPLY
SERIES
MODELS
USE HOLES
(see Figure 1)
HARDWARE
(Mount power supply to bracket)
KEPCO P/N
FCP, FMP
3 Watts D1, D2
(2) Machine Screws (4-40 x 5/16)
(2) Int. Lock Washers (#4) 101-0092
103-0014
10 Watts D1, D3
KRW
(See Note 1.)
ALL A9, A10
(2) Machine Screws (8-320 x 3/8)
(2) Int. Lock Washers (#8) 101-0290
103-0017
MRW
(See Notes 2 and 3.)
ALL A7, A8, B1, B2
(4) Machine Screws (8-320 x 3/8)
(4) Washer, #8, Flat Metal, Steel
(4) Int. Lock Washers (#8) 101-0290
103-0137
103-0017
RKW 300 Watts A11, A12, A13, A14
(4) Machine Screws (M4 x 8) (with inte-
gral lock washer)
101-0463
RTW
(See Notes 4 and 5.)
50 Watts A9, A16
(2) Machine Screws (M4 x 8) (with inte-
gral lock washer)
101-0463
100 Watts A2, A17
(2) Machine Screws (M4 x 8) (with inte-
gral lock washer)
101-0463
150 Watts A2, A18
(2) Machine Screws (M4 x 8) (with inte-
gral lock washer)
101-0463
300 Watts A14, A15, A19
(3) Machine Screws (M4 x 8) (with inte-
gral lock washer)
101-0463
NOTES:
1. Series KRW requires case CA 29 (supplied separately) for mounting in RA 39 or RA 40 rack adapters.
2. Series MRW 150/151KV requires case CA 19 (supplied separately) for mounting in RA 39 or RA 40 rack adapters.
3. Series MRW 160/161KV and MRW 170/171KV requires case CA 20 (supplied separately) for mounting in RA 39 or
RA 40 rack adapters.
4. Series RTW 50W, 100W, 150W requires factory-installed cover, indicated by a “C” suffix followIng the model number (e.g.,
RTW 5-30KC).
5. Series RTW 300W requires factory-installed cover (standard “C” suffix following the model number).
