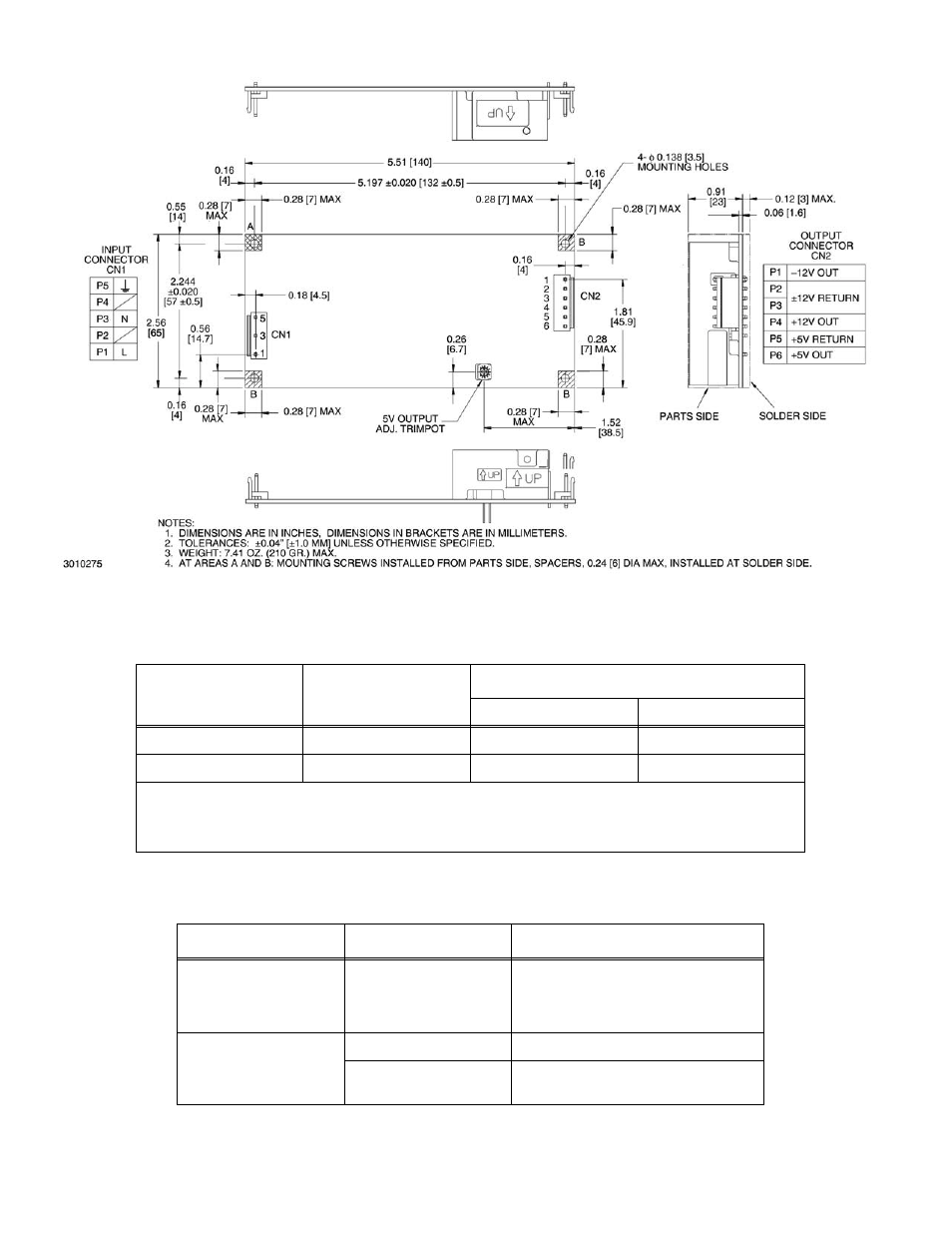

FIGURE 4. MTW 30W MECHANICAL OUTLINE DIAGRAM
TABLE 2. INPUT/OUTPUT MATING CONNECTORS
Connector MTW 30W Connector
Mating Connector(2)
Socket Housing Terminal Pin
Input B3P5-VH-B(1) VHR-5N(1) SVH-21T-P1.1(1)
Output B6P-VH-B(1) VHR6N(1) SVH-21T-P1.1(1)
NOTES:
1. Manufacturer: Japan, Solderless Terminal Mfg. Co. Ltd, VH Series
2. Optional cable kit (KIT 219-0486) includes one input and one output cable (one meter long) with mating connectors
for CN 1 (input) and CN2 (output), unterminated at other end.
TABLE 3. ACCESSORIES
Accessory Part Number Description
Cable Kit KIT 219-0486 Includes one input and one output cable
(one meter long) with mating connectors
for CN1(input) and CN2 (output), untermi-
nated at other end
Enclosure CA 40 Galvanized Steel
CA 40-R Cold Rolled Steel with RoHS Compliant
Zinc finish
