KEPCO KIT 219-0526, ATE-DMG Fast Mode Kit User Manual
Page 4
4
228-1632
072307
KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11355 U.S.A. " TEL (718) 461-7000 " FAX (718) 767-1102
http://www.kepcopower.com " email: [email protected]
2.8 FINAL REASSEMBLY
1.
Install top cover using 20 screws removed during disassembly.
2.
Mark new model number as follows: add -26857 if both standard and optional changes were installed. Add-26858 if the
optional components were not installed.

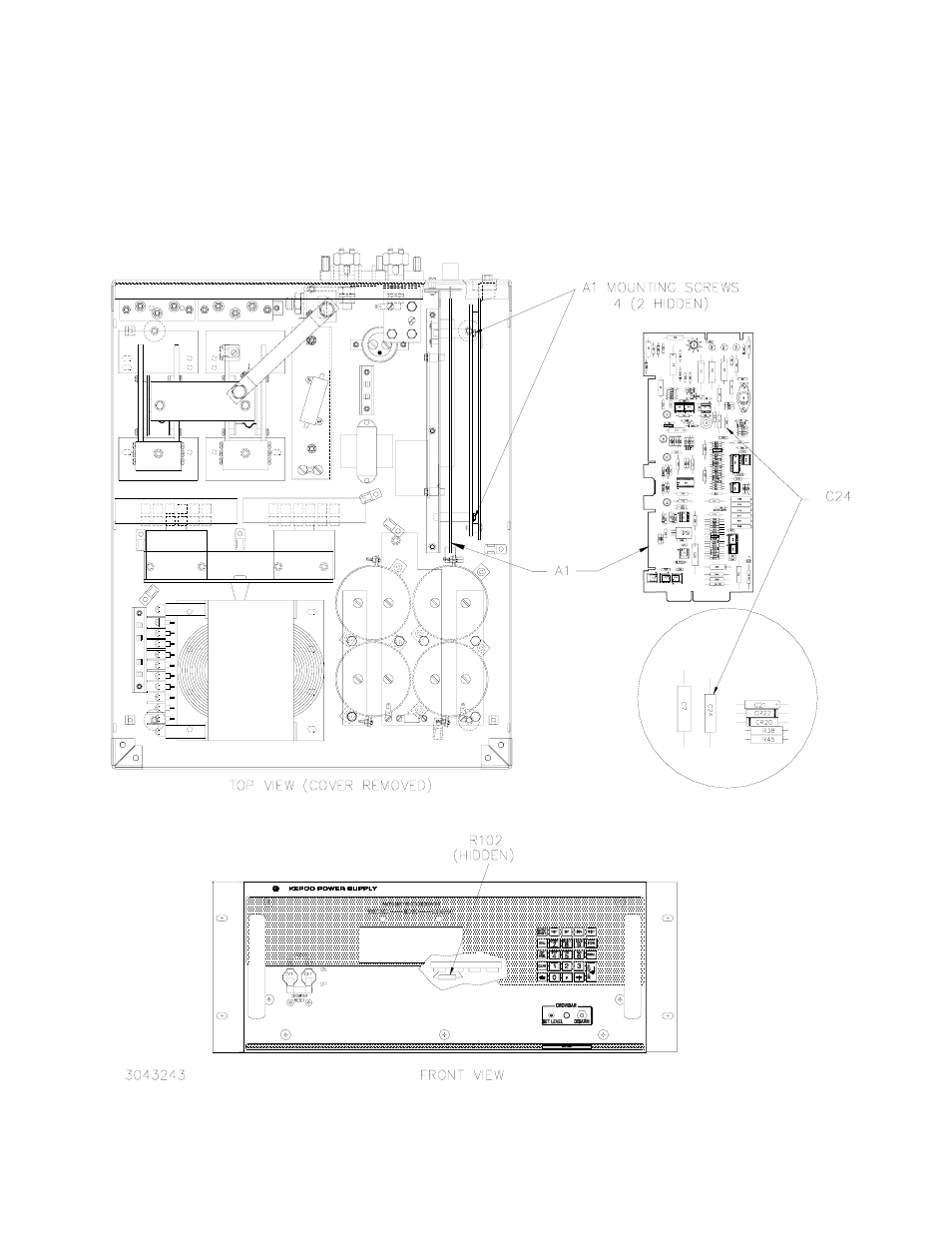

FIGURE 3. COMPONENT LOCATIONS, RESISTOR R102 AND CAPACITOR A1C24
