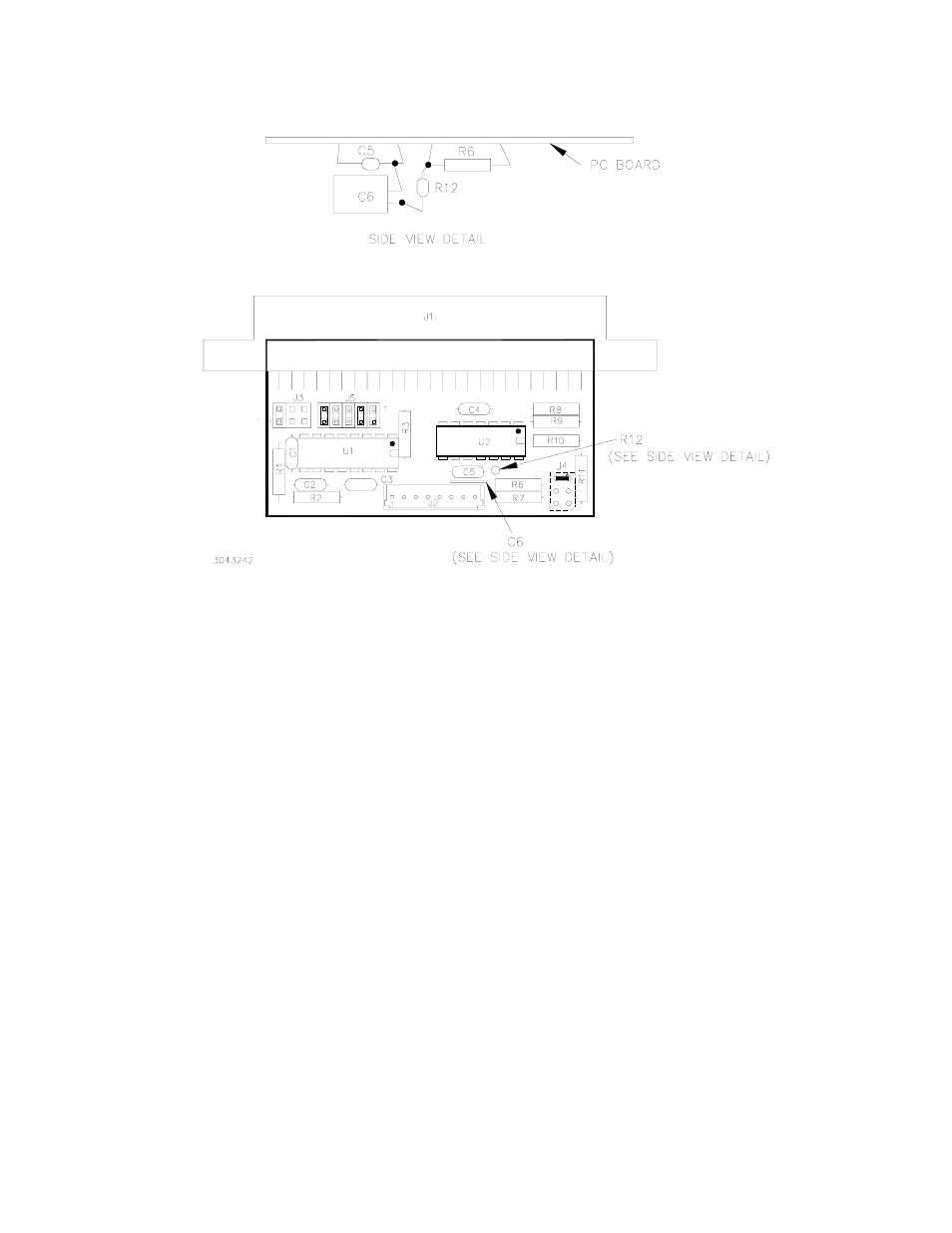

FIGURE 2. ADAPTER ASSEMBLY A11, COMPONENT LOCATION
2.5 REASSEMBLY
1. Attach the adapter assembly cover to adapter assembly A11 using two screws.
2. Attach the cover to the chassis using 20 screws.
3. Install the power cord and connect the unit to source power, then refer to ATE-DMG Technical Manual to initialize and cal-
ibrate the unit.
2.6 INITIALIZATION AND CALIBRATION
Refer to ATE-DMG Power Supply technical manual.
2.7 OPTIONAL UPGRADE PROCEDURE (SEE FIGURE 3)
This procedure is not required, however replacing the components indicated will ensure that full output current capability is not
influenced by component tolerances.
1. At the front panel, remove seven screws and separate the front panel from the chassis.
2. Locate resistor R102 and replace with new resistor R102 (P/N 115-2176, 1.1K, 1%, 1/8W).
3. Reattach front panel to chassis using six screws.
4. Remove four screws and unplug A1 assembly from chassis.
5. Replace C24 with new capacitor C24 (P/N 117-0377, 0.022UF, 200V, 10%
6. Reinstall A1 assembly and secure using four screws.
