2. Attach two end brackets (128-1849) and two extended end brackets (108-1699) to the two cabinet sec-
tions of slides (108-0318) using eight screws (101-0311), flat washers (103-0031), lockwashers (103-
0019), and nuts (102-0008) (see Figure 2).

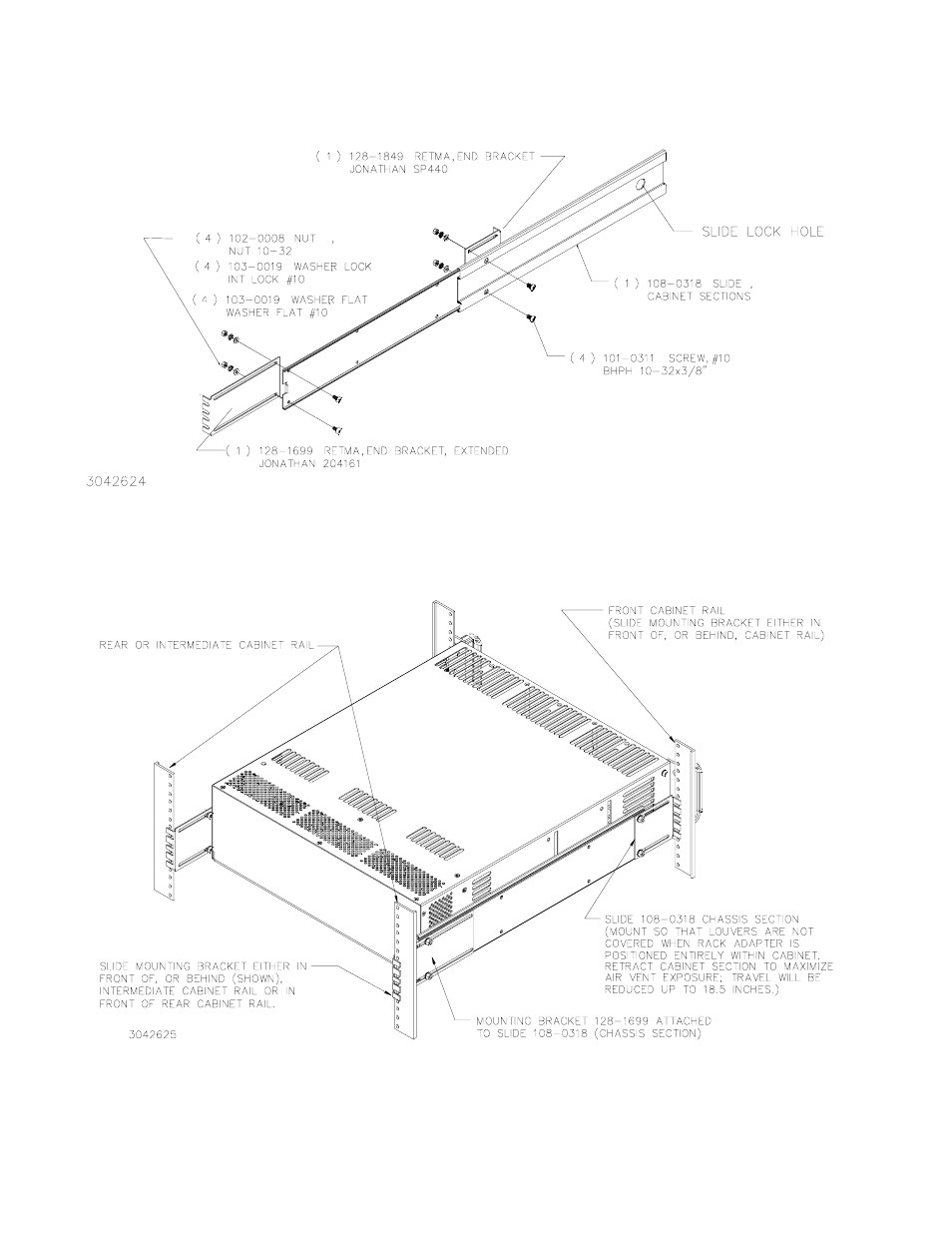

FIGURE 2. ATTACHING END BRACKETS TO SLIDE (CABINET SECTION)
3. Attach mounting brackets (with cabinet section of slide attached) to the cabinet rail (attaching hardware
not supplied) (see Figure 3).
FIGURE 3. ATTACHING CABINET SECTION TO RAIL
4. Insert rack adapter into rack (insert chassis-mounted slide section into the cabinet mounted slide sec-
tion).
