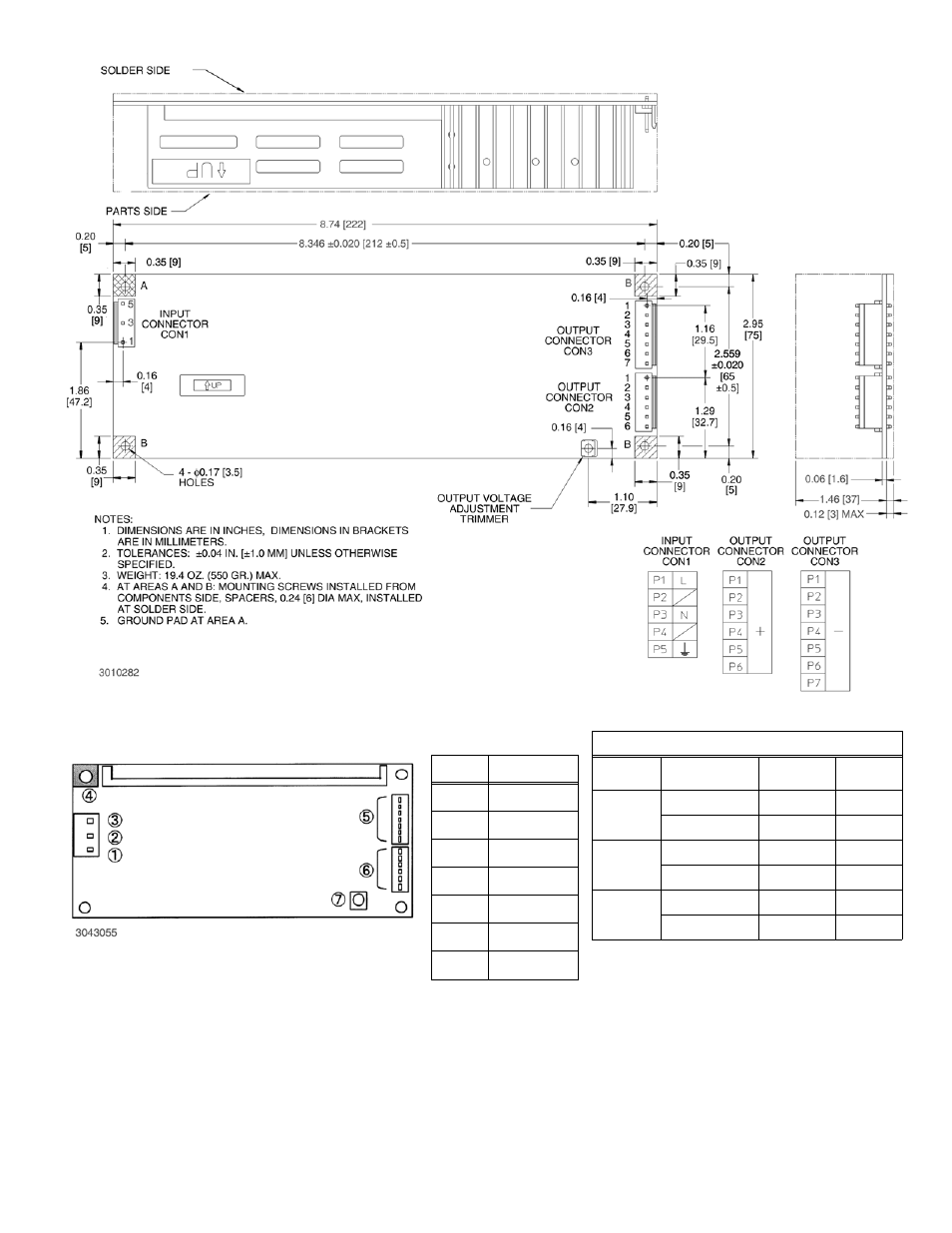

FIGURE 4. JBW 150W MECHANICAL OUTLINE DIAGRAM
FIGURE 5. INPUT/OUTPUT CONNECTIONS
Item Function
1 Input L
2 Input N
3 Ground
4 Ground Pad
5 Output (-)
6 Output (+)
7 Vadj control
Mating Connectors(3)
Connector Terminal Pin
Socket
Housing
MFR
Input
SVH-21T-P1.1 VHR-5N JST(1)
T101 H101-05 LCE(2)
Output (–)
SVH-21T-P1.1 VHR-7N JST(1)
T101 H101-07
LCE(2)
Output (+)
SVH-21T-P1.1 VHR-6N JST(1)
T101 H101-06
LCE(2)
(1) JST= Japan Solderless Terminal Mfg. Co.
(2) LCE= Long Chu Electronics Co.
(3) Optional cable kit (P/N 219-0496) includes
one input and two output cables (one meter
long) with mating connectors for Input and
Output (+) and (–) connectors, unterminated
at other end.
INPUT
OUTPUT (–)
OUTPUT (+)
