V — RESTORING NV RAM CALIBRATION DATA
The following procedure restores calibration data that has
been previously saved, but can also be used to restore
factory calibration. To restore factory calibration, a calibra-
tion data file specific to that particular serial no. must first
be obtained from Kepco, and saved at c:\Program
files\kepco\el_restore. Factory calibration data is available
for two (2) years from date of purchase (10 years if a Cer-
tificate of Volatility has been ordered).
1. To restore NV RAM calibration data, launch the Pro-
gram from the Windows Start menu, by selecting All
programs - Kepco - calsave.

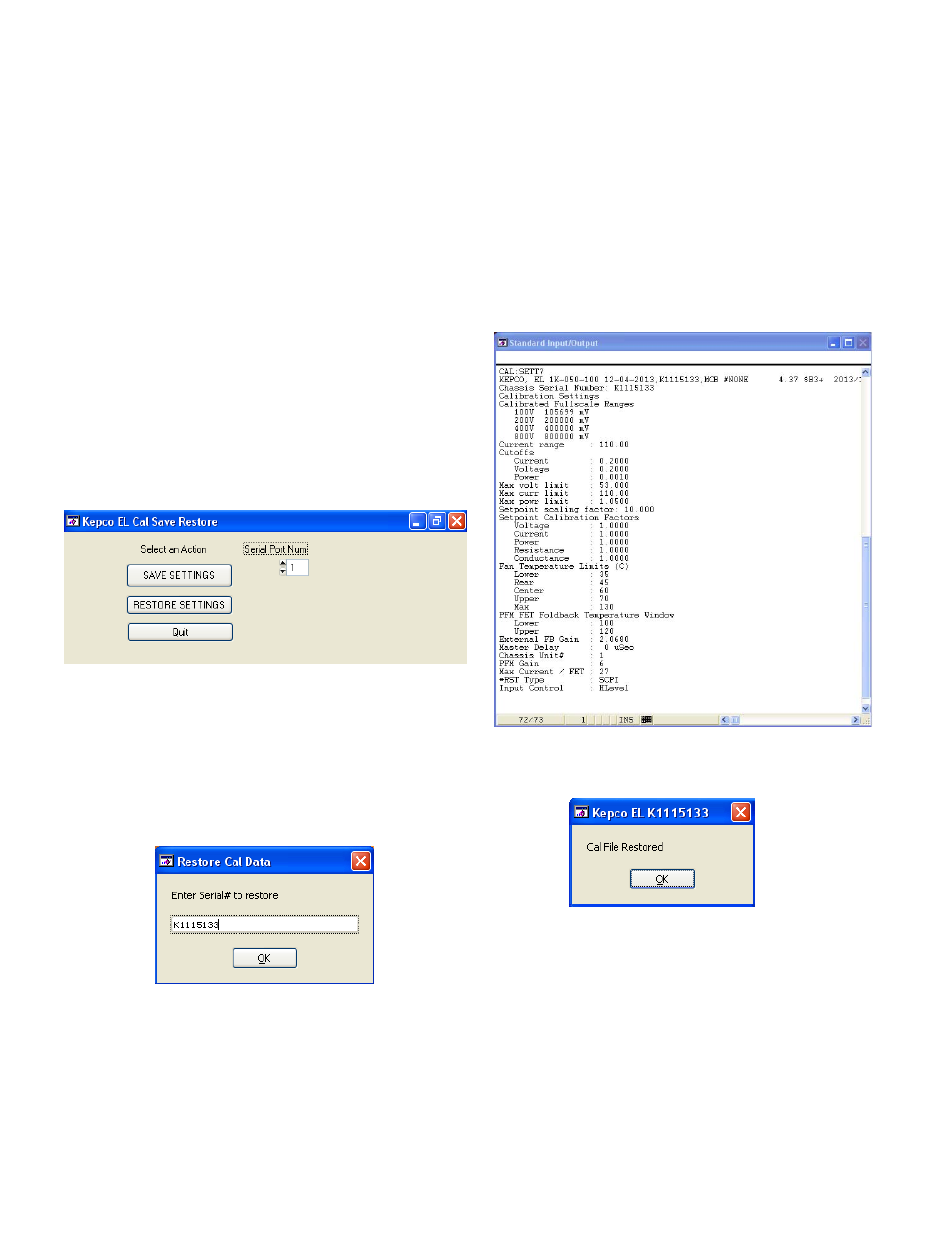

When the Kepco EL Cal Save Restore window (Figure 5)
appears, select the serial port to which the EL
load is connected.
NOTE: The EL must be connected to the same computer
used to save the data.
FIGURE 5. KEPCO EL CAL SAVE RESTORE WINDOW
2. Click the RESTORE SETTINGS button (see Figure 5).
The Restore Cal Data window opens (Figure 6. Enter
the serial number of the unit to be restored and click
OK.
FIGURE 6. RESTORE CAL DATA WINDOW
3. The Standard Input/Output window opens (see Fig-
ure 7) showing that the restore process is started, list-
ing the new settings.
4. When done, the Cal File Restored window opens (see
Figure 8), entitled Kepco EL xxxxxxxx where xxxxxxxx
is the serial number of the EL Load, and the message
Cal File Restored
is displayed. Click OK to end
the program.
FIGURE 7. STANDARD INPUT/OUTPUT WINDOW,
RESTORING CALDATA
FIGURE 8. CAL FILE RESTORED WINDOW
