III — SAVING CALIBRATION DATA
Once the Calibration Data Save and Restore Program has
been installed (see Section II), the calibration data can be
saved.
Performing this procedure generates a copy of the current
values of the non-volatilie memory. This copy, if used to
restore the unit, does not meet the requirements of the
Certificate Of Volatility of the US government. By provid-
ing the model and serial number of the unit, the factory
non-volatile ram contents file can be obtained from Kepco
Application Engineering support for the first two years
after manuafacture. If a Certificate Of Volatility is ordered
for the unit, the file will be available for 10 years mininum.
1. Launch the Program from the Windows Start menu, by
selecting All programs - Kepco - calsave.
2. When the Kepco EL Cal Save Restore window (Fig-
ure 1) appears, select the serial port to which the EL
load is connected.

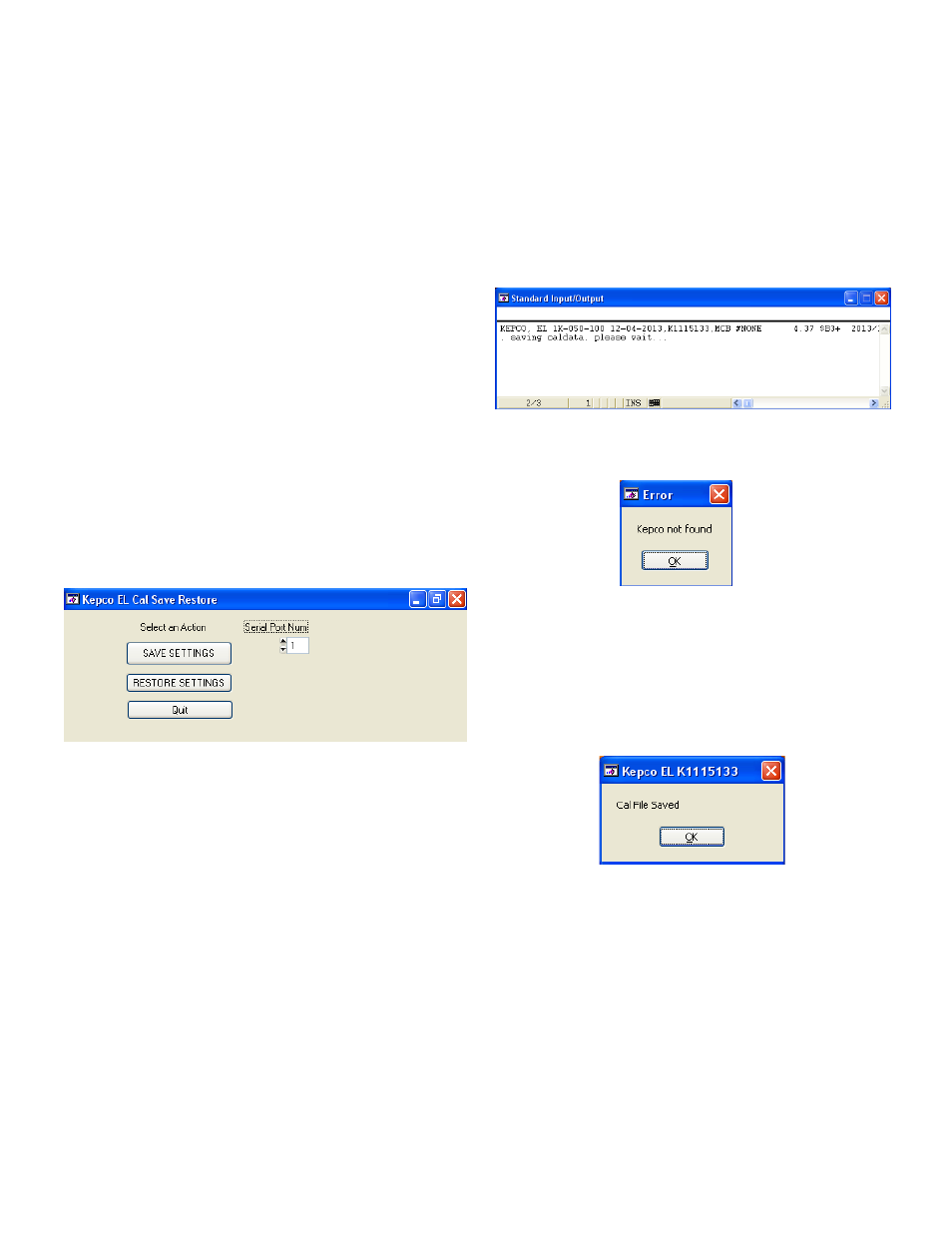

FIGURE 1. KEPCO EL CAL SAVE RESTORE WINDOW
3. Select SAVE SETTINGS to save the EL calibration
data.
4. If the connection is made, the Standard Input/Output
window opens (Figure 2), showing the Identifier string
of the Kepco EL load with the message:
saving caldata, please wait ...
If there is a connection problem, an Error window (Fig-
ure 3) will appear, which will display:
Kepco not
found
. Click OK to continue.
FIGURE 2. STANDARD INPUT/OUTPUT WINDOW,
SAVING CALDATA
FIGURE 3. ERROR WINDOW
5. When the data has been saved, the Cal File Saved
window opens (see Figure 4), entitled Kepco EL
xxxxxxxx where xxxxxxxx is the serial number of the
EL Load, and the message
Cal File Saved
is dis-
played. Click OK to end the program.
FIGURE 4. CAL FILE SAVED WINDOW
