Figure 4. outline drawing – KEPCO DIN KIT FCP-10 (P) User Manual
Page 2
2
228-1368 (REV 3)
101801
KEPCO, INC. " 131-38 SANFORD AVENUE " FLUSHING, NY. 11352 U.S.A. " TEL (718) 461-7000 " FAX (718) 767-1102
http://www.kepcopower.com " email: [email protected]
REMOVING POWER SUPPLY FROM DIN RAIL. While grasping the power supply with one hand, Insert a screwdriver
into the access holes provided and apply leverage towards the left as shown in Figure 3B to disengage each clip from
the rail. Since mounting clips are close together, it may be necessary to apply leverage with two screwdrivers simulta-
neously.

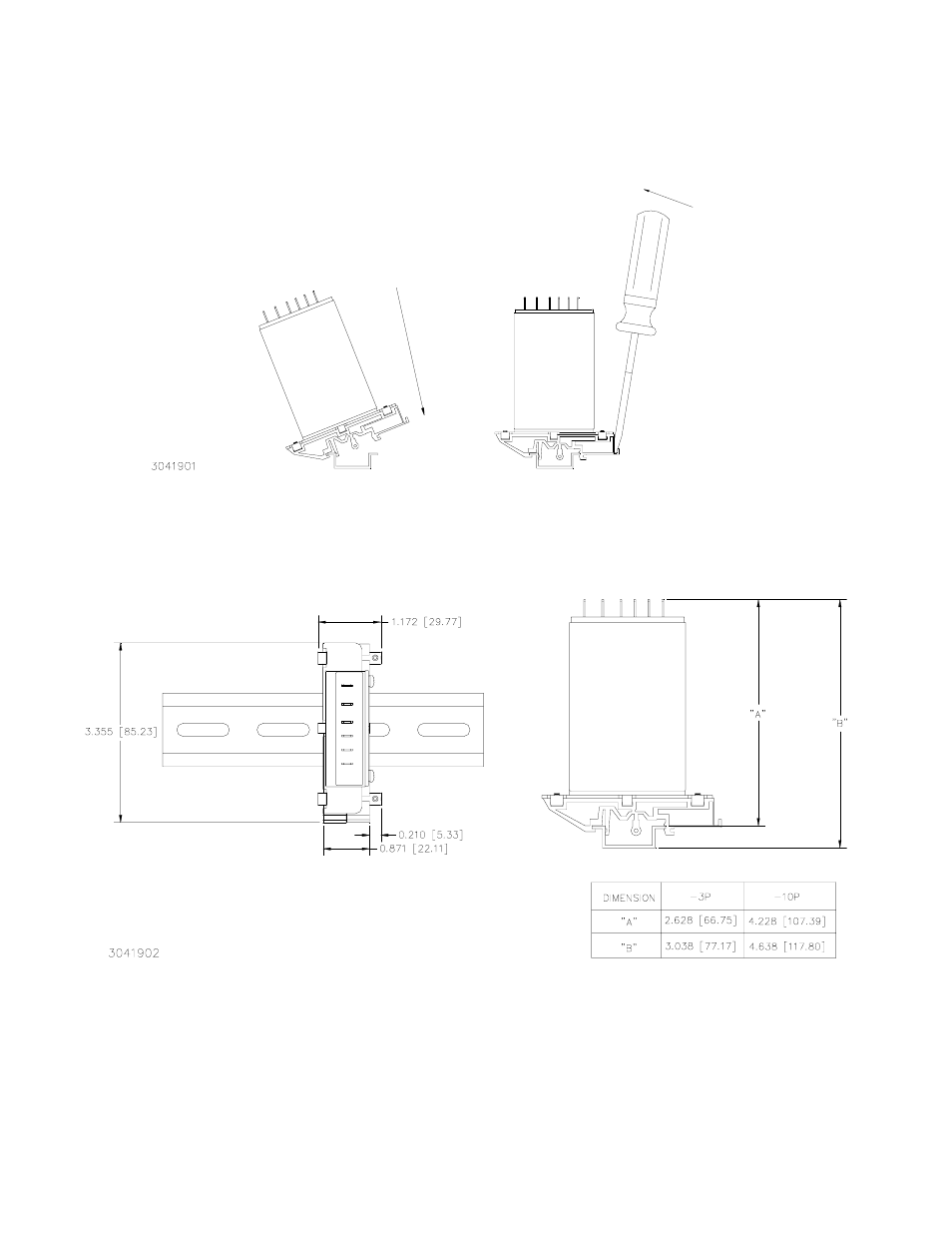

FIGURE 3. INSTALLATION AND REMOVAL OF POWER SUPPLY FROM DIN RAIL
FIGURE 4. OUTLINE DRAWING
B
REMOVAL
INSTALLATION
A
