Figure 12. LAN Connector and cable.
Failure detection in the Ethernet interface is indicated by the analog output
activating.
II - 6. Console
An asynchronous console is available for configuration / monitoring tasks.
The IPDACT-2(UD) has a black RJ45 connected labeled CN1 for console
connection. Consequently you will need a DB9 to RJ45 converter for the said
connection which is provided by Teldat. The following figures show both the
converter and the connector respectively.

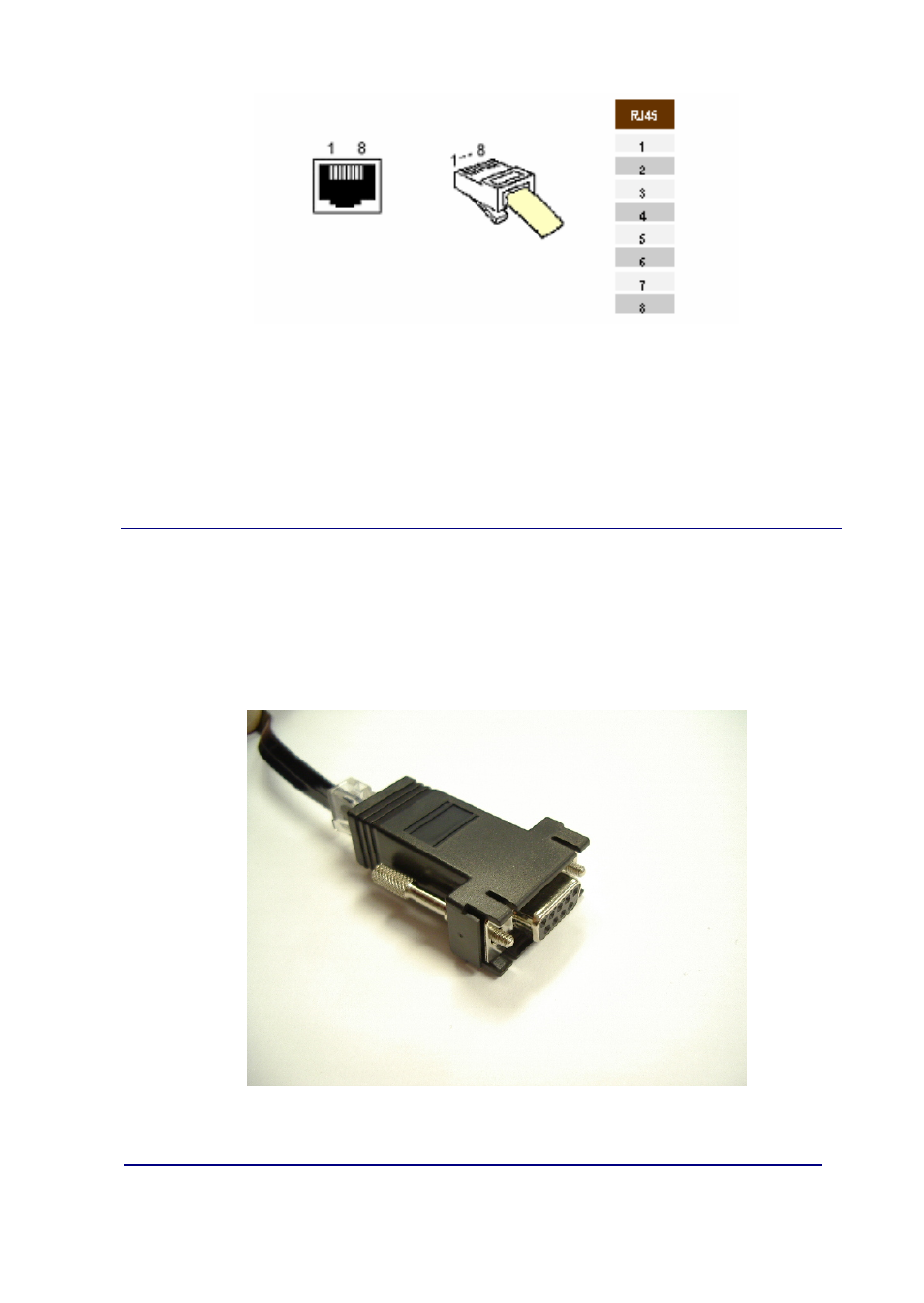

Figure 13. DB9-RJ45 converter for the console connection
IPDACT-2(UD) - Description
