1.2 Installation
1.2.1 ASSEMBLY
NOTE: If the duct mount and sensor are already assembled as one unit, skip to the “Installation” instructions
(section 1.2.3). If the duct mount was purchased as a kit, follow the steps below to assemble the sensor to the
duct mount before installation to the duct.

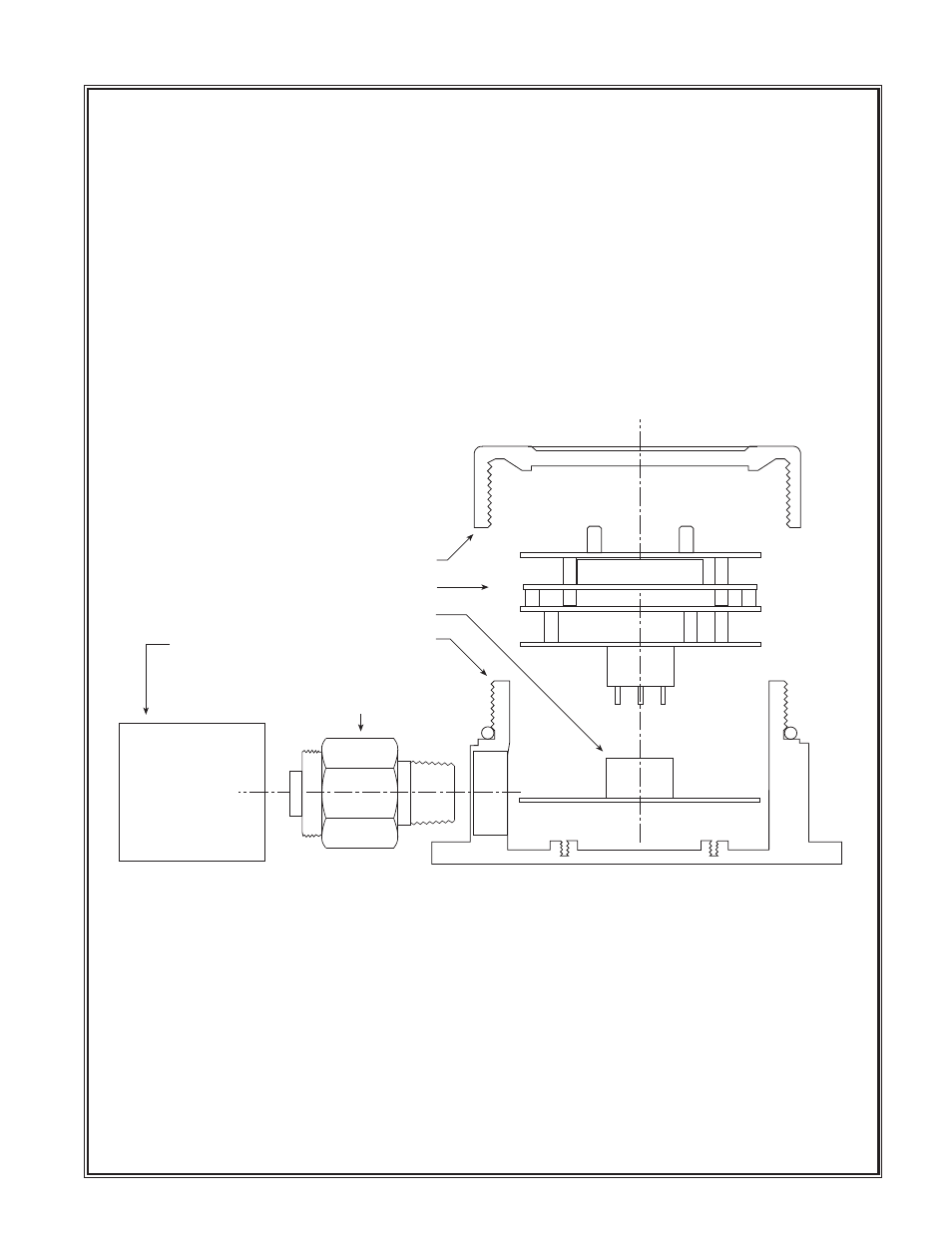

1 - Disassemble the sensor assembly.
a) If applicable, unscrew and remove the splash guard or rain shield from the sensor housing.
b) Unscrew and remove the sensor enclosure cover and unplug the control circuit.
c) Disconnect the sensor housing wiring from the f ield connector board.
d) Unscrew and remove the sensor housing from the sensor enclosure.
Detcon Duct Mount Kit PG.3
Rain Shield /Splash Guard Enclosure
Field connector Board
Sensor enclosure cover
Control circuit
Sensor Housing
