Model AV2-N4X
AV2-N4X Instruction Manual Rev. 1.1 Page 4 of 6

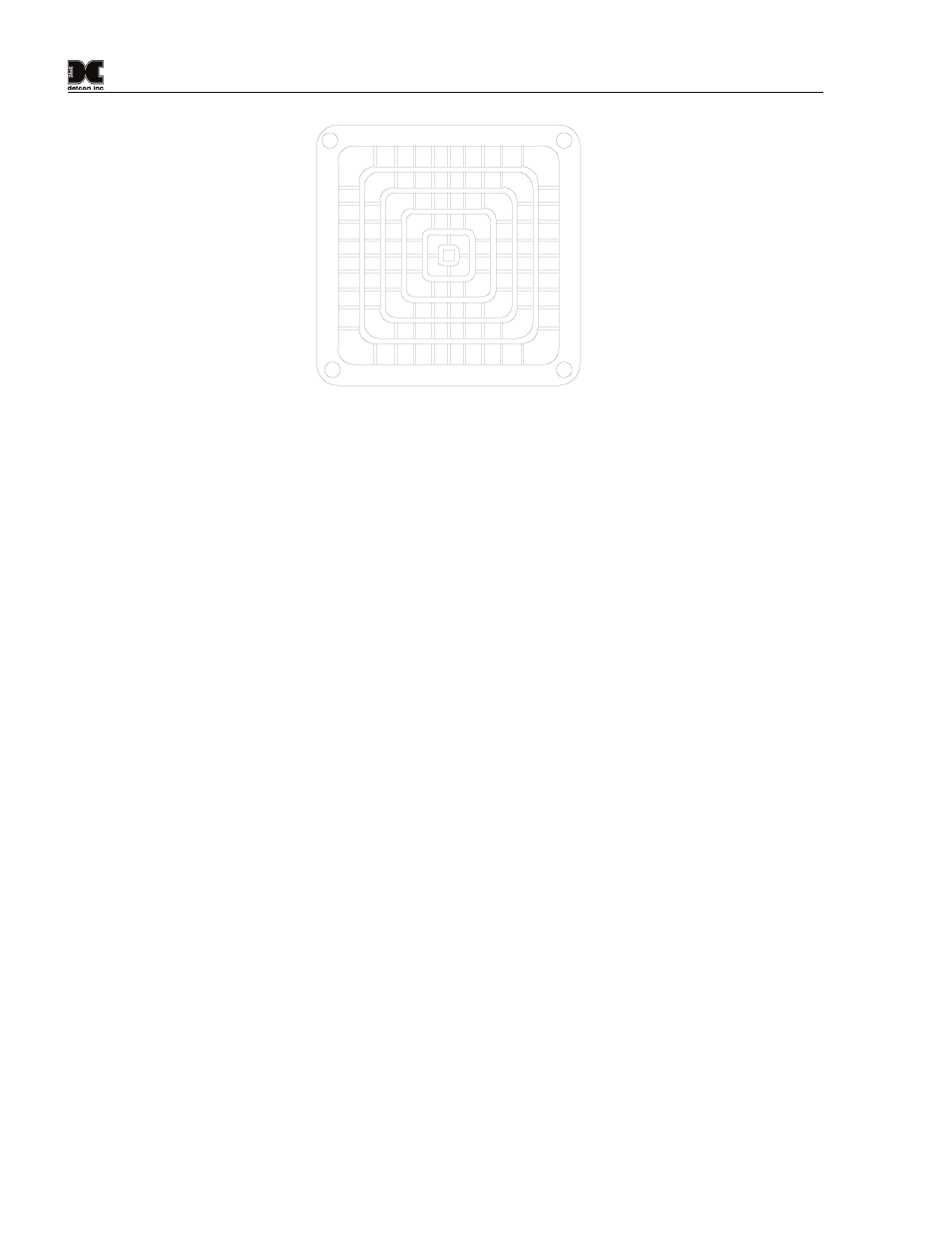

3.2 Horn
Specifications:
Voltage: 12VDC, 24VDC, 50/60HZ,
120VAC 50/60HZ,
240VAC 50/60HZ,
(See specifications label for voltage rating)
Mount: Surface / Panel
Operating Current: 0.50 Amps at 12VDC,
0.25 Amps at 24VDC,
0.18 Amps at 120VAC,
0.09 Amps at 240VAC
Temperature Rating: -65°F to +150°F
Sound Output:
99db @ 10 feet,
109dB @ 1 meter
Enclosure Rating: Type 4
Approvals: UL Listed, CSA certified, FM Approved
Height: 4 in.
Width: 4 in.
Depth: 2.5 in
Warranty: 1 Year
Overall dimensions: 17"H x 10"W x 7-7/8"D.
