Model AV2-N4X
AV2-N4X Instruction Manual Rev. 1.1 Page 2 of 6
2.0 Installation
Securely mount the alarm station enclosure in accordance with the drawing in figure #1.
Connect wiring in accordance with the drawing in figure #2. To determine the proper voltage of the strobe and
siren, refer to the specifications label inside the enclosure.
7"
11.25"
10"
16.25"
11.75"

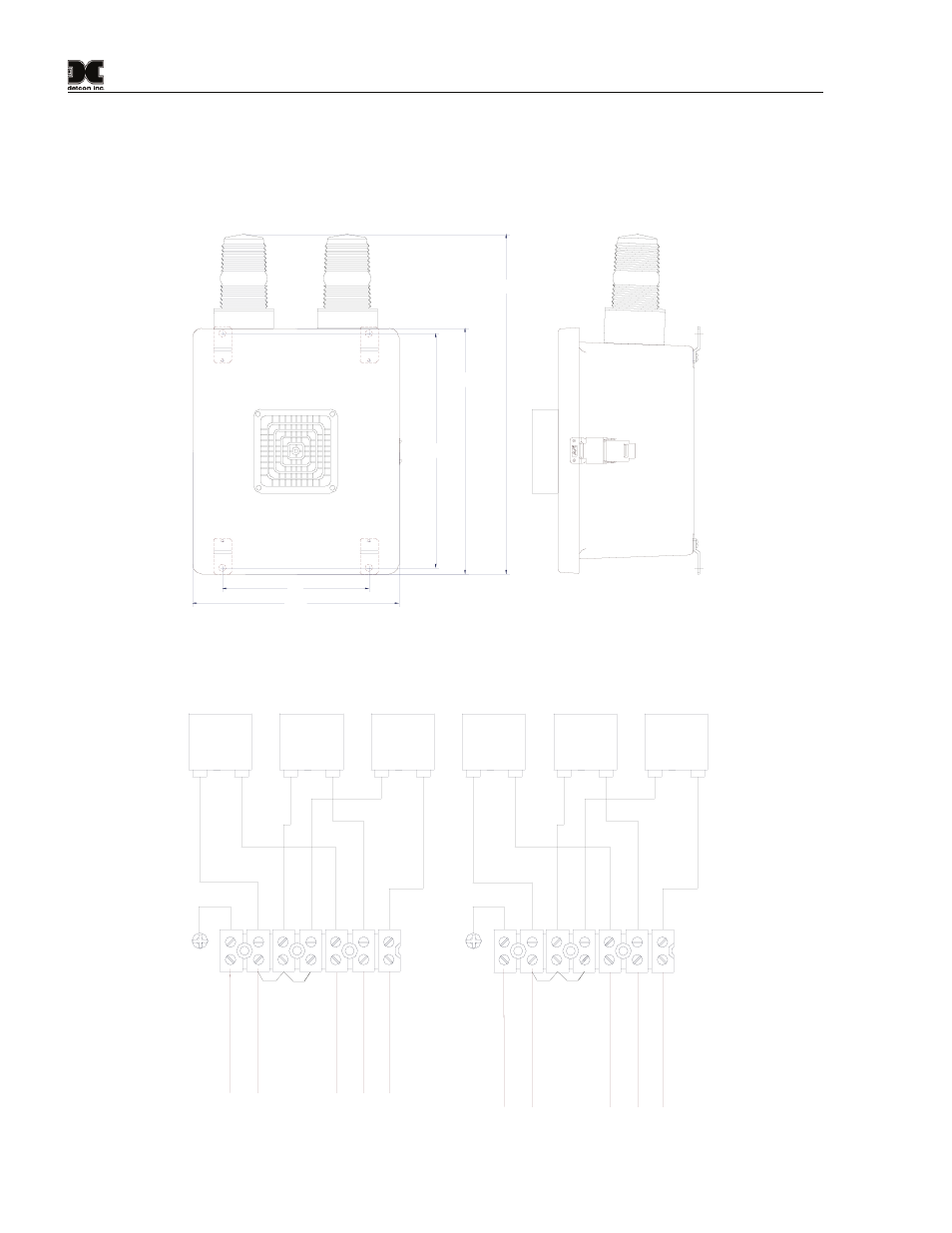

Figure 1 Alarm Station Dimensions
STROBE 1 SIREN STROBE 2
N L1 N N L1 L1
VDC Earth Ground Switched VDC+ to Siren Switched VDC+ to Strobe2 Switched VDC+ to Strobe1
12 OR 24
VDC WIRING
STROBE 1 SIREN STROBE 2
N L1 N N L1 L1
L2 Neutral Earth Ground Switched L1 to Siren Switched L1 to Strobe2 Switched L1 to Strobe1
120 OR 240
VAC WIRING
Figure 2 Wiring Diagram
