1.5 SPARE PARTS
Part# Description
3254 & 3254-BT2 Power switch (need both parts)
2831-G Power indicator lamp
2831-R Flow fault indicator lamp
500-01937-0 Flow fault/liquid level circuit assembly
3518 24 VDC pump
3489 1000 ml/m flow meter with valve
3606-SD1/SD2 117VAC to 24VDC power supply assembly
8236 External moisture filter pot
823-6LL280-000 Internal Liquid Level Module
1.6 WARRANTY
Detcon Inc., as manufacturer, warrants under intended normal use each new Model 971-071170-LRY gas
detection system to be free from defects in material and workmanship for a period of one year from the
date of shipment to the original purchaser. Sensor assembly warranties are explained in their respective
instruction manuals. All warranties and service policies are FOB the Detcon Inc. facility located in The
Woodlands, Texas.
Detcon Model 971-071170-LRY Gas Detection System PG.6
6" of
vent
tube
0
100
200
300
400
500
CAL PORT
SET
FLOW
SAMPLE
PORT
detcon inc.
HOUSTON, TEXAS

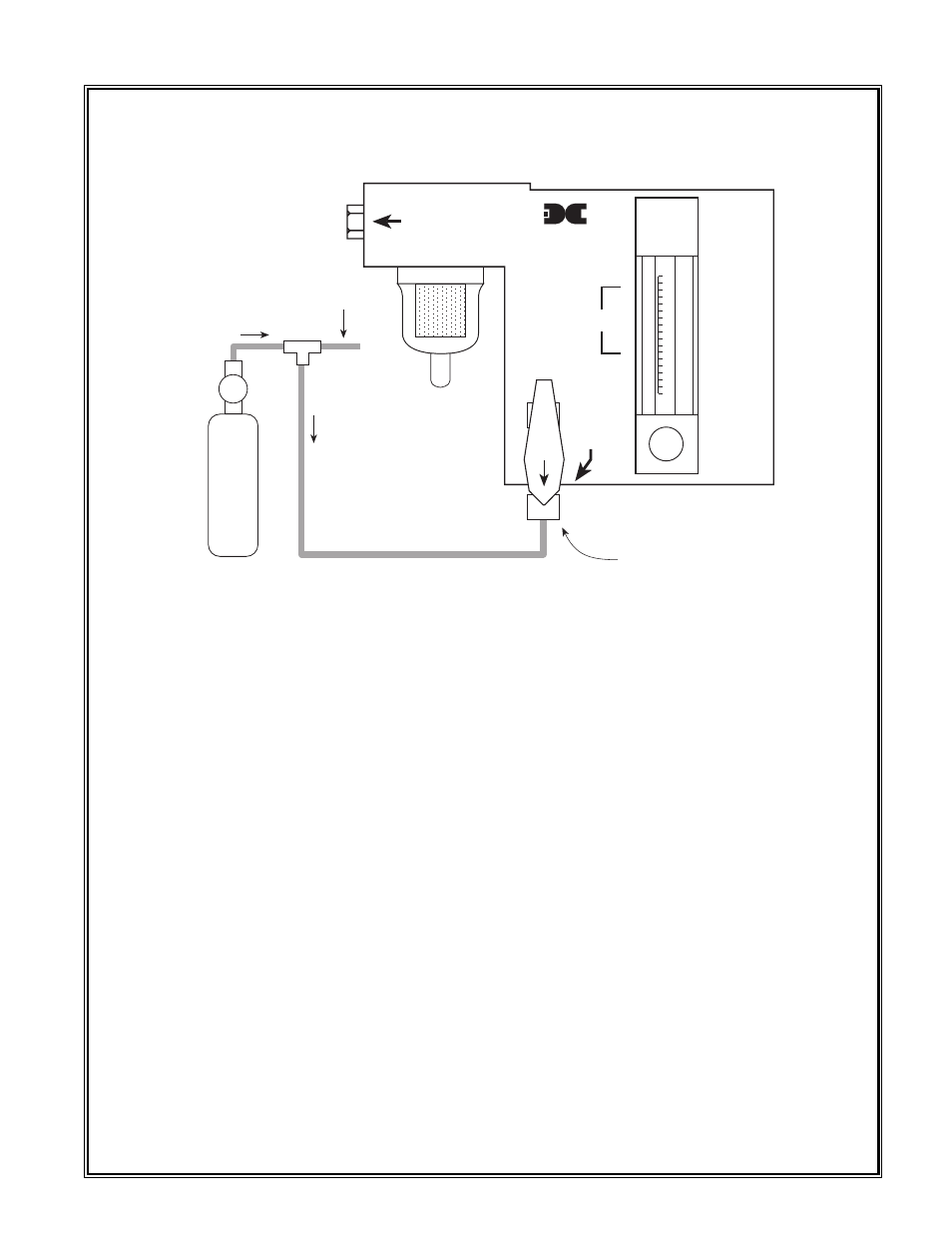

SAMPLE DRAW
GAS DETECTION SYSTEM
Calibration
Port
Fixed flow
regulator
Span gas
cylinder
Teflon
tubing
1/4"
Tee
500 ml/m
1000
ml/m
