Model 1610-N4X
NOTE: If the Battery Option is installed (1610-N4X-BBU), the batteries are connected to P15 (VDC IN).
Do not use the DC output of “ALM POWER” (P18-1 and P18-2). The Batteries are not designed to
provide power for alarm devices.
Mounting hardware is provided on the 1610-N4X motherboard for two additional Auxiliary Alarm Relay
Boards.
1.4 Remote Alarm Reset
A remote mounted normally open momentary switch may be used to reset the alarms of all Model 10
controllers. “ALM RESET” (P14-1 and P14-2) provides a set of terminals to connect the switch across every
Model 10 Controller (Figure 4). The reset function is effective when the Model 10’s respective alarms have
been programmed in the latching position and alarm conditions have passed. Each Model 10 controller also
has its own discrete alarm reset switch, discussed further in the Model 10 Controller Manual.
2.0 Installation
1. Securely mount the 1610-N4X Enclosure in accordance with Figure 2 or Figure 3.
BREAKER CIRCUIT
5 AMP
www.detcon.com Model 1610-N4X
Texas Houston
Detcon Inc.
www.detcon.com Houston Texas
Gas Detection Control System
www.detcon.com Houston Texas
Detcon Inc.
22.85" 21.70"
10.3" 25.59"
17.85" 10.0"

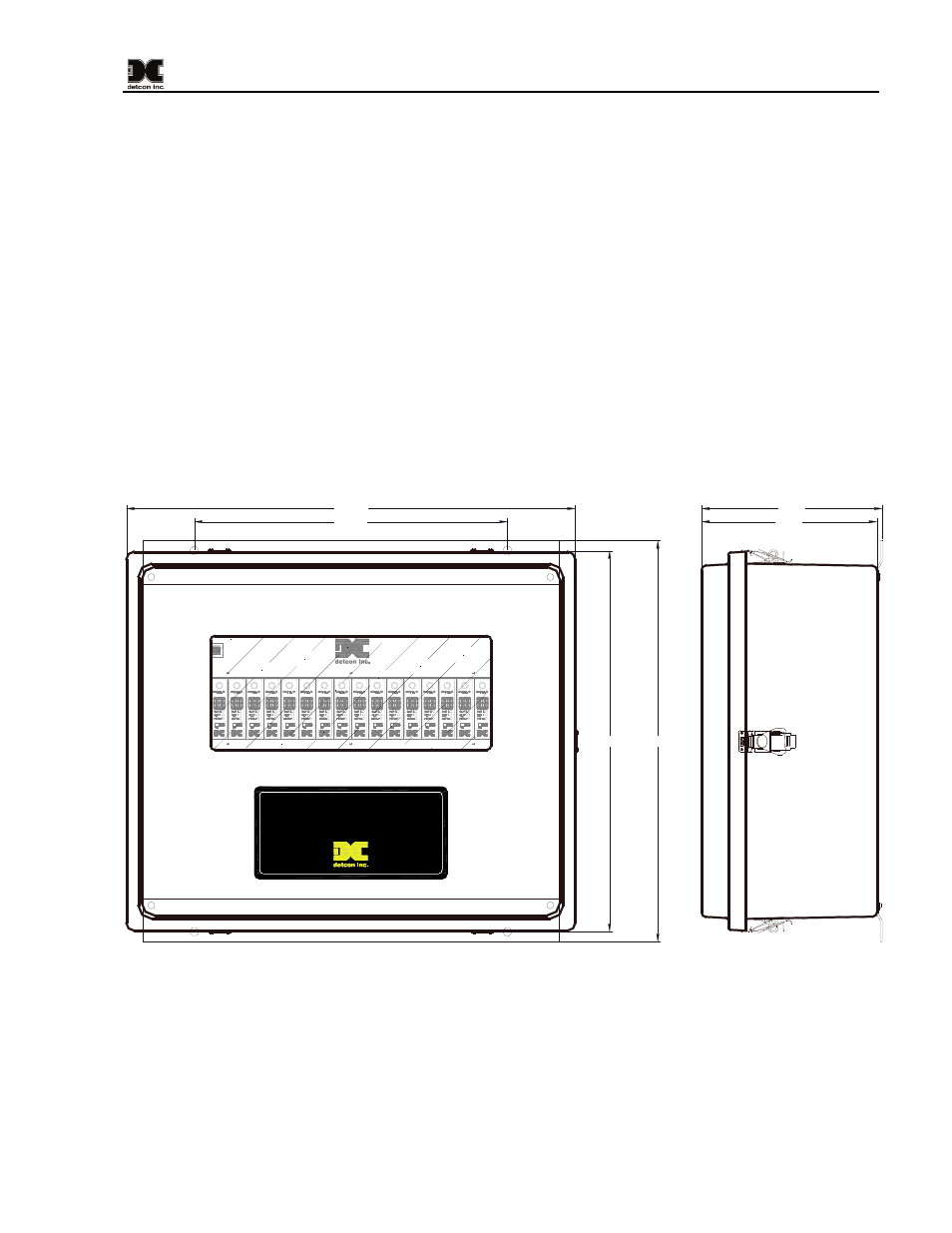

Figure 2 Mounting of Fiberglass Enclosure
