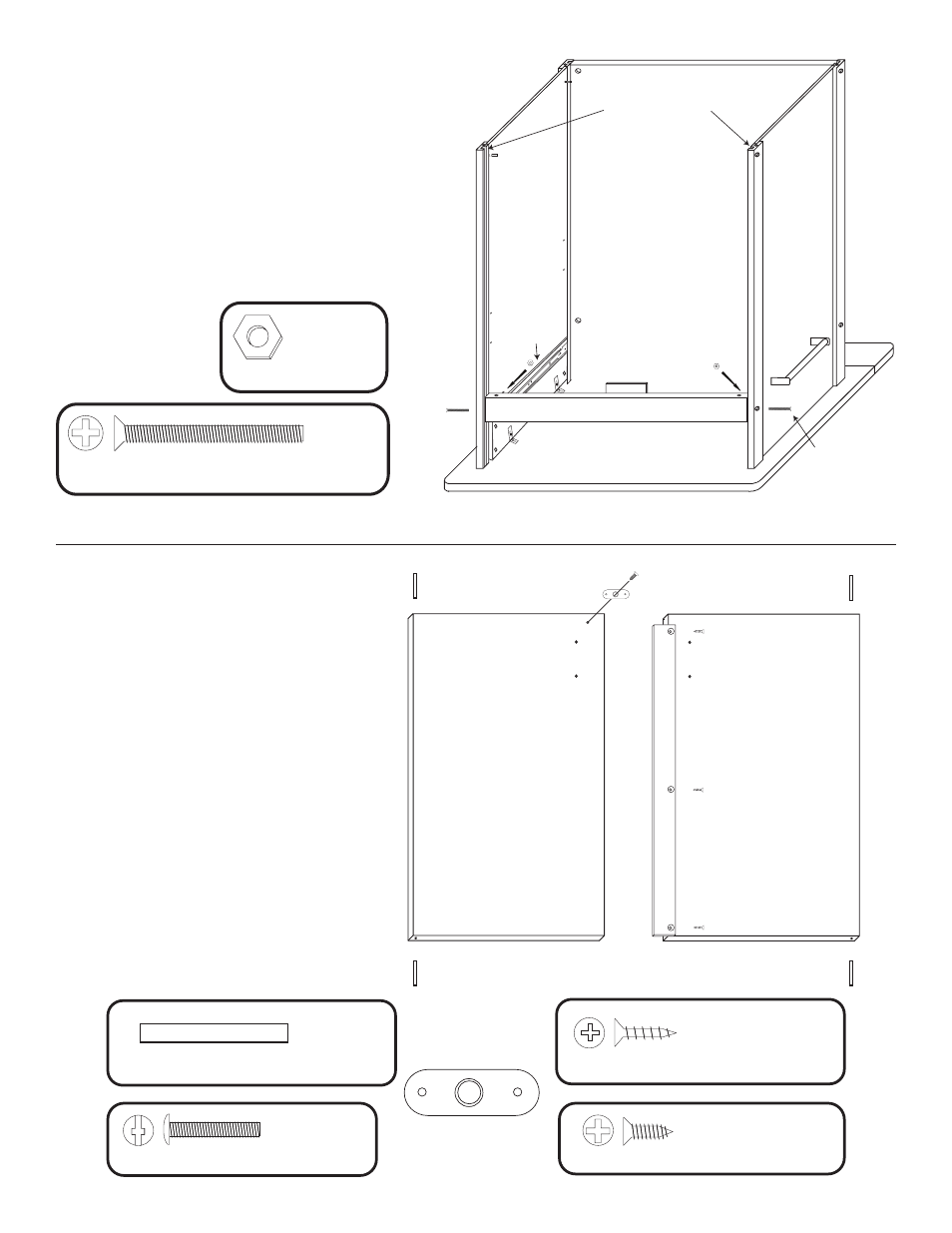

STEP 8
A. Take the top front brace (with magnet block),
insert the pins in the brace ends into the
slits on the inside of the front legs and slide
down until the brace aligns with the bolt holes.
1 1/4” #8 Bolts
Insert Brace Pins Here
and slide down into
correct position.
Glide Suport
Assembly
ILLUSTRATION 8
2 used
in this step
Hex Nut
2 used in
this step
1 3/4” Phillips Flat Head Bolt
1 1/2” Long 3/16” DIA. Steel Pin
4 used in
this step
5/8” Phillips Flat Head #8 Screw
3 used in this step
Magnet Plate
7/8” Truss Head Machine Screw
4 used
in this step
1/2” Phillips Flat Head #4 Screw
1 used in this step
STEP 9
Door Prep
A. Insert/Tap ONE 1 1/2” pin into each
end of both doors. DON’T OVERDRIVE
PINS! Pins should stick up about 1/2”
when seated. OK if loose.
B. Attach the door spacer to the left door
with 5/8” #8 screws. The spacer has a
space at the top to allow magnet clear-
ance and is almost flush with the bottom
of the door.
C. Attach the magnet plate (may be stuck
to the magnet) with the small FLAT HEAD
screw to the top of the right door. Small
bumps on plate go next to wood.
D. Attach the door handles with 7/8”
Truss Head Machine Screw.
RIGHT DOOR LEFT DOOR
1 1/2” Long 3/16” DIA. Steel Pin
4 used in
this step
5/8” Phillips Flat Head #8 Screw
3 used in this step
Magnet Plate
7/8” Truss Head Machine Screw
4 used
in this step
1/2” Phillips Flat Head #4 Screw
1 used in this step
