Catskill Craftsmen 51531 - Manual (Page 9)

1 3/4” Phillips Flat Head Bolt
2 Used
in this step
10-24 Hex Nut
2 Used
in this step
2 Used
in this step
3/16” Flat Washer
Magnet (1)
5/8” Pan Head Screw
2 Used
in this step
Nut
1 3/4”
Machine Screw
5/8” Pan Head Screw
3/16” Washer

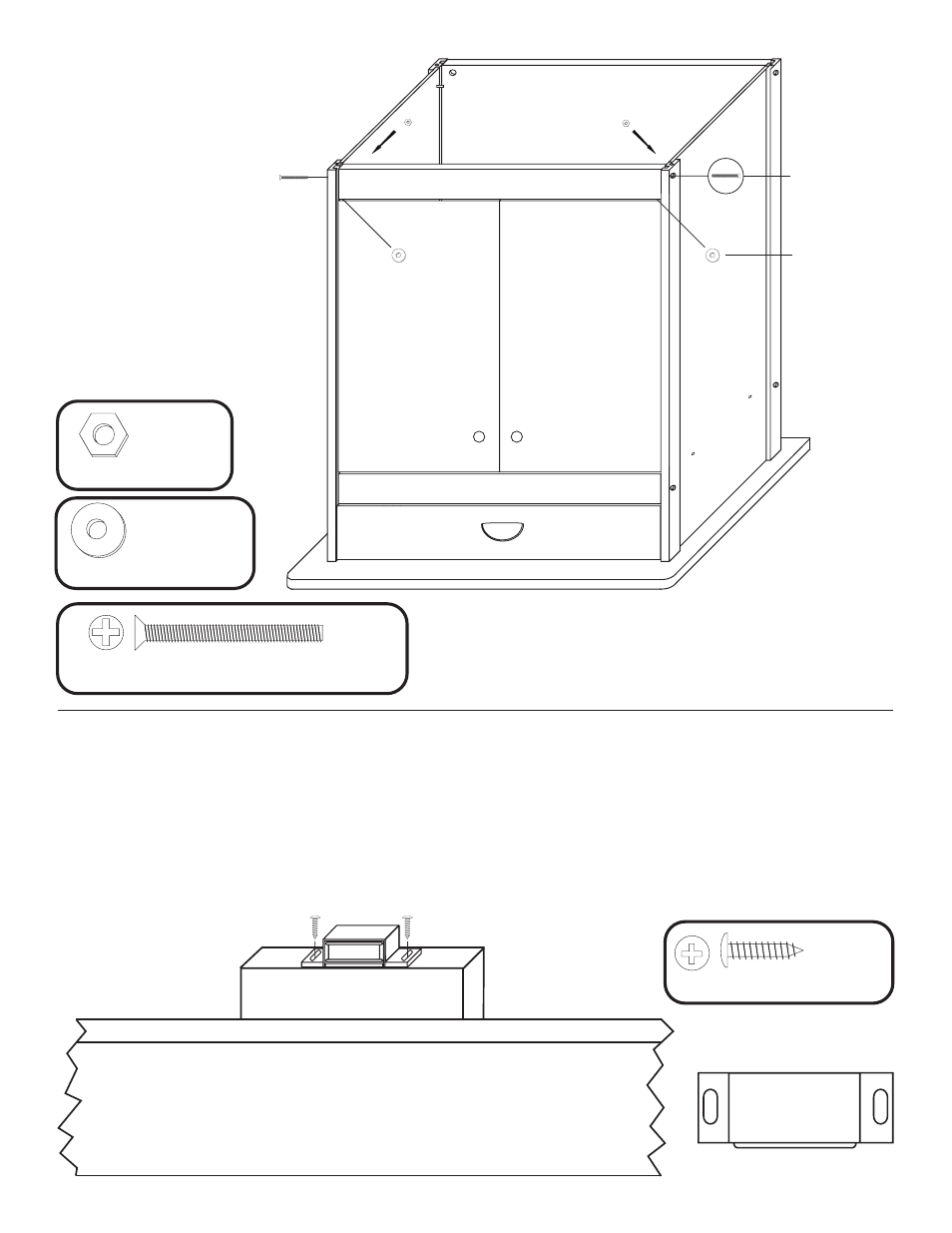

STEP 10
A. Install doors by inserting pins
in the door tops into the holes in
the long edge top front brace.
B. Place one washer on
each of the door pins in the
door bottoms.
C. Take the bottom front brace,
align pins in door bottoms with
holes along top long edge of
brace (are washers on pins?)
and secure brace with 1 3/4”
bolts/hex nuts as before.
STEP 11
A. Stick magnet to magnet plate on right door.
B. With left door open, close the right door. The magnet should be positioned over the wooden block on
the bottom of the top front brace. Hold the magnet in place with your thumb, and open the right door. The
magnet will be in the correct position on the block. Mark holes with a pencil.
C. Secure magnet with the two round head screws in the magnet packet. Center screws in the slot in the
magnet. This will allow adjustment later, if needed.
ILLUSTRATION 10
ILLUSTRATION 11
