1 1/2” Long 3/16” DIA. Steel Pin
4 used in
this step
5/8” Phillips Flat Head #8 Screw
3 used in this step
Magnet Plate (1)
1 1/4” Truss Head Bolt
2 used
in this step
1/2” Phillips Flat Head #4 Screw
1 used in this step

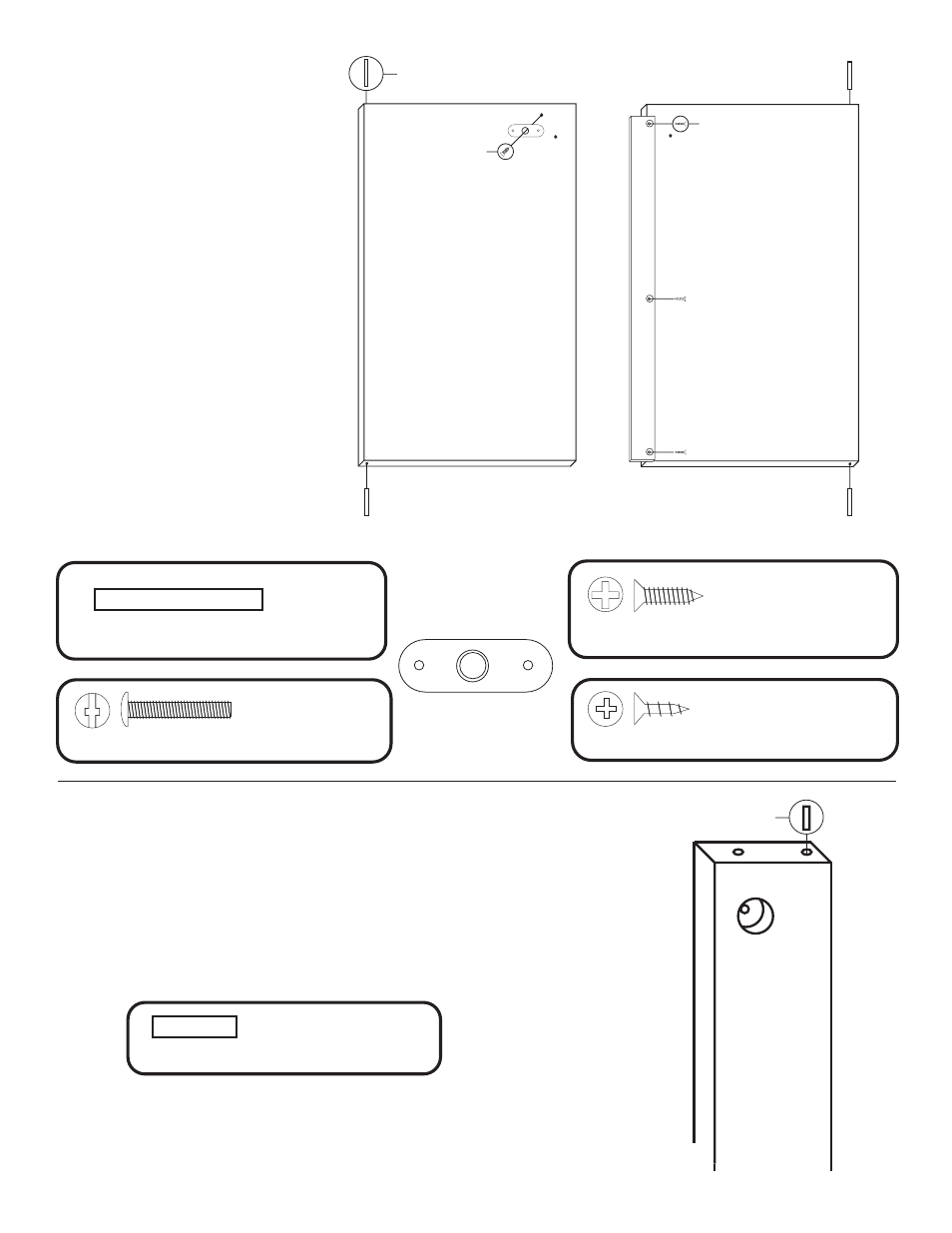

ILLUSTRATION 1
3/4” Long 3/16” DIA. Steel Pin
4 used in this step
ILLUSTRATION 2
1/2” #4 Screw
5/8” #8 Screw
1 1/2” Pin
3/4” Pin
STEP 1
A. Tap/insert one 1 1/2” pin into
each end of both doors. DON’T
OVERDRIVE PINS! Pins should
stick up about 1/2” when seated.
B. Attach the door spacer to the
left door with 5/8” #8 screws. The
spacer has a space at the top to
allow magnet clearance and is
almost flush with the bottom of
the door.
C. Attach the magnet plate (may
be stuck to the magnet!) with the
small flat head screw to the top
of the right door. Bumps toward
wood.
D. Attach door knobs with two
1 1/4” truss head bolts.
STEP 2
Take the 2 front braces and tap/insert one 3/4” steel pin into each
of both braces until seated. About 3/8” will stick out when seated.
OK if loose.
