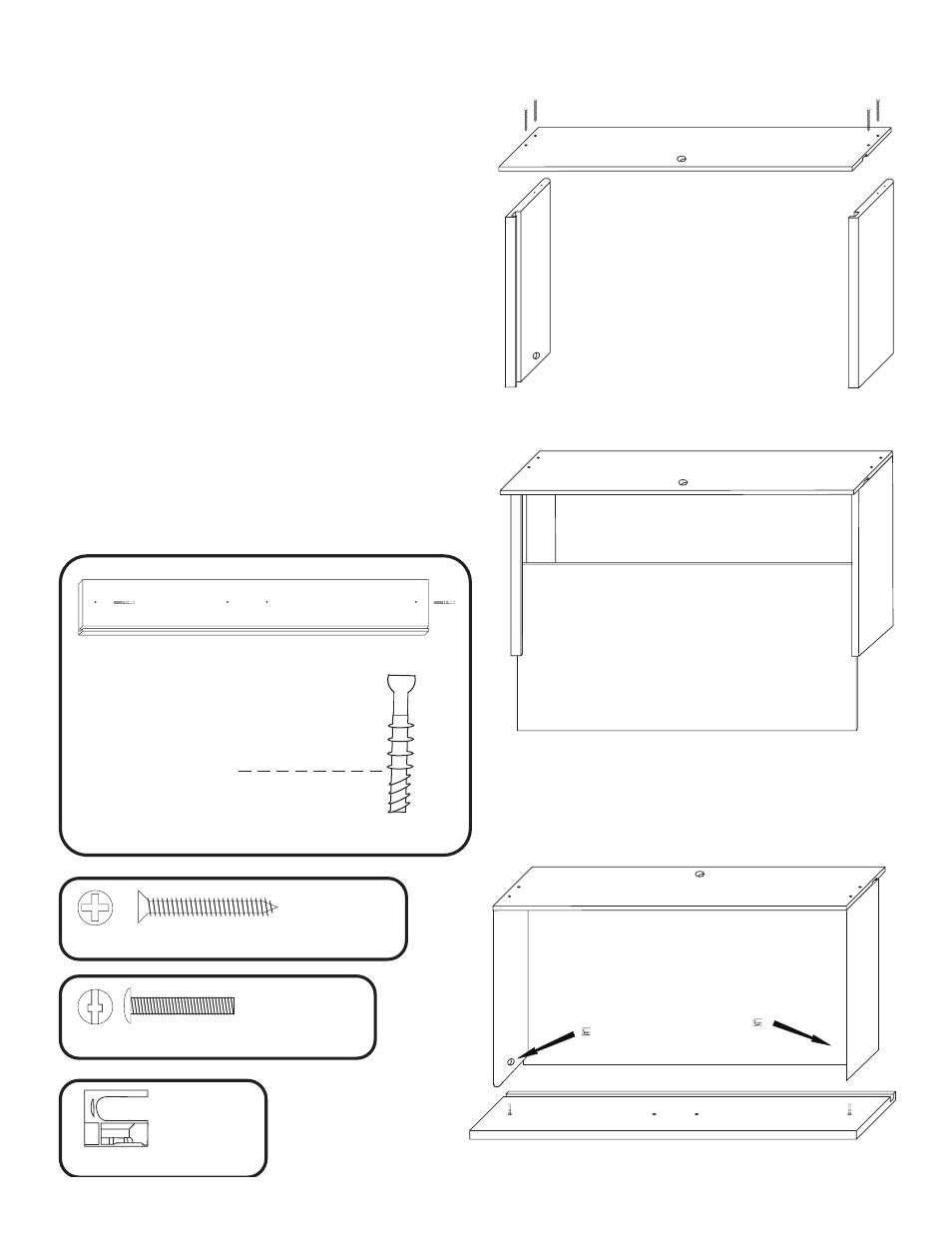

ILLUSTRATION 3A
Below line in wood
Cam Posts (2)
ILLUSTRATION 3C
ILLUSTRATION 3B
ILLUSTRATION 3D Cam
2 used
in this step
3/4” Truss Head Machine Screw
2 used
in this step
1 1/4” Phillips Flat Head #8 Screw
4 used
in this step
STEP 3
A. Attach the drawer back to the drawer sides with
four 1 1/4” #8 screws. Make sure parts are aligned as
in illustration 3A.
B. Insert drawer bottom into the slots in the drawer
sides, best side to inside of drawer. Slide down until
seated in the slot in the drawer back. See illustration
3B.
C. Screw the cam posts into the two outside holes on
the inside face of the drawer front until seated. Only
3/8” of this post goes into the wood, leaving the 4
larger guide rings/head exposed. See illustration 3C.
D. Insert the posts into holes in the drawer side until
seated against the front ends of the drawer sides.
Insert cams so that slot in the cam fits over the post
and turn with Phillips screwdriver until seated. Don’t
over-torque!! See illustration 3D
E. Attach drawer handle with the two 3/4” Truss Head
Bolts (no illustration). Visit www.catskillcraftsmen.com
for video instructions on our cam system.
