4 Used in this step
1” Long 3/16” DIA. Steel Pin

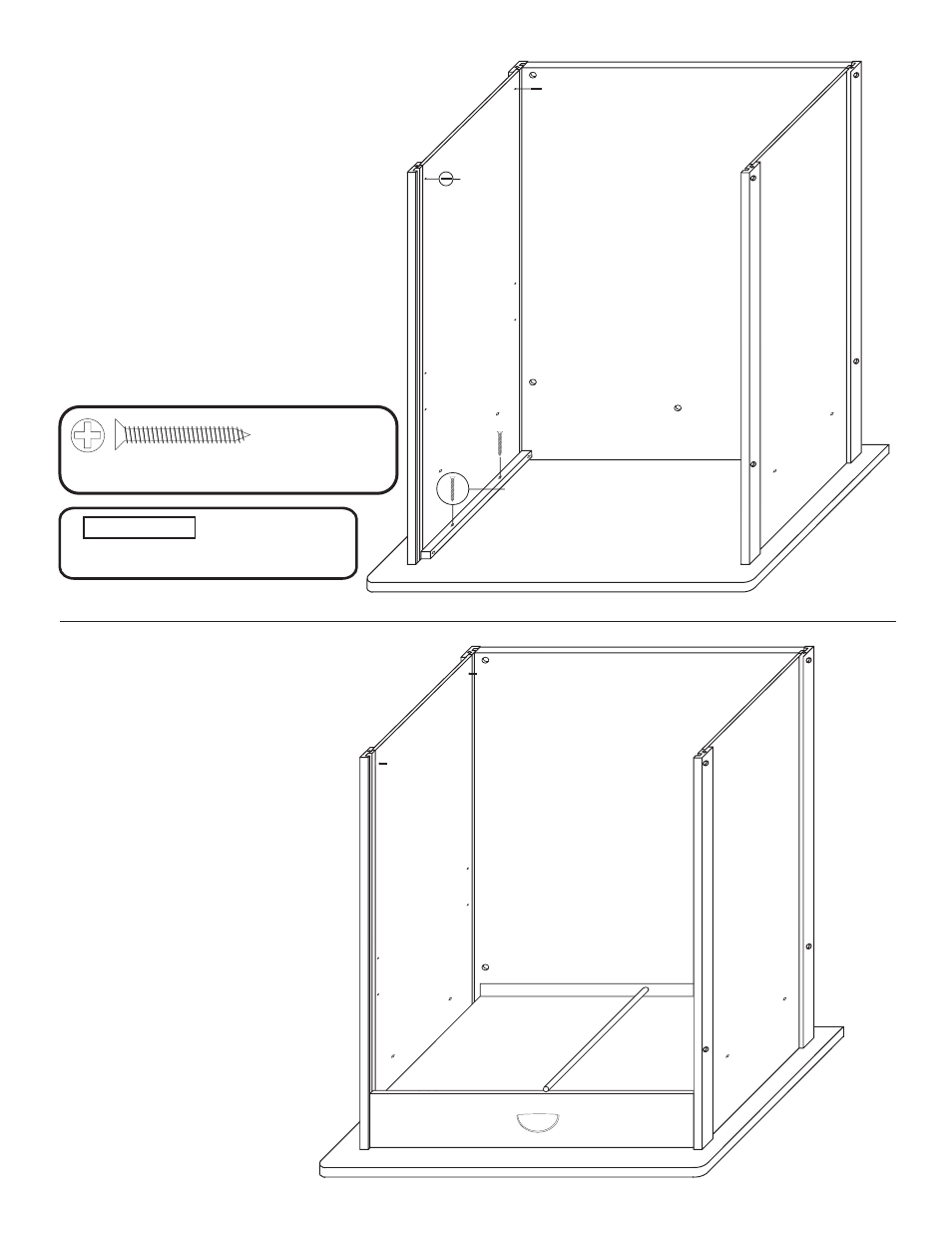

ILLUSTRATION 7
ILLUSTRATION 8
1 1/4” Phillips Flat Head #8 Screw
4 Used in this step
1” Pin
1 1/4” #8 Screw
STEP 7
A. Turn the side/back assembly (from step 5)
upside down (invert) on top of the inverted table
top.
B. Drop two 1 1/4” #8 screws into the holes
in each of the table top sticks.
C. Using the X marks from step 6 as a
guide, insert the tips of the screws into the
pilot holes in the unit top and finger tighten.
When all 4 screws are properly aligned,
tighten down.
D. Tap two 1” pins into each side panel.
These pins will hold the bottom shelf.
See illustration 7.
STEP 8
A. Take drawer, insert the drawer
dowel through the hole in the
drawer back, invert drawer and
place in cabinet cavity. Insert/turn
drawer dowel into the 1/2” diameter
hole in the back panel.
