Overview
Pin-1 Pink
Pin-2 White/Green
Pin-3 Yellow/Green
Pin-4 Green/Orange
Pin-5 Gray/Red
Pin-6 Black
Pin-7 Blue/Pink Pin-8 Black/Green
Pin-9 Red (tip of 3.5 mm
connector)
Pin-10 White (ring of 3.5 mm
connector)
Pin-11 Gray/Blue
Pin-12 Red

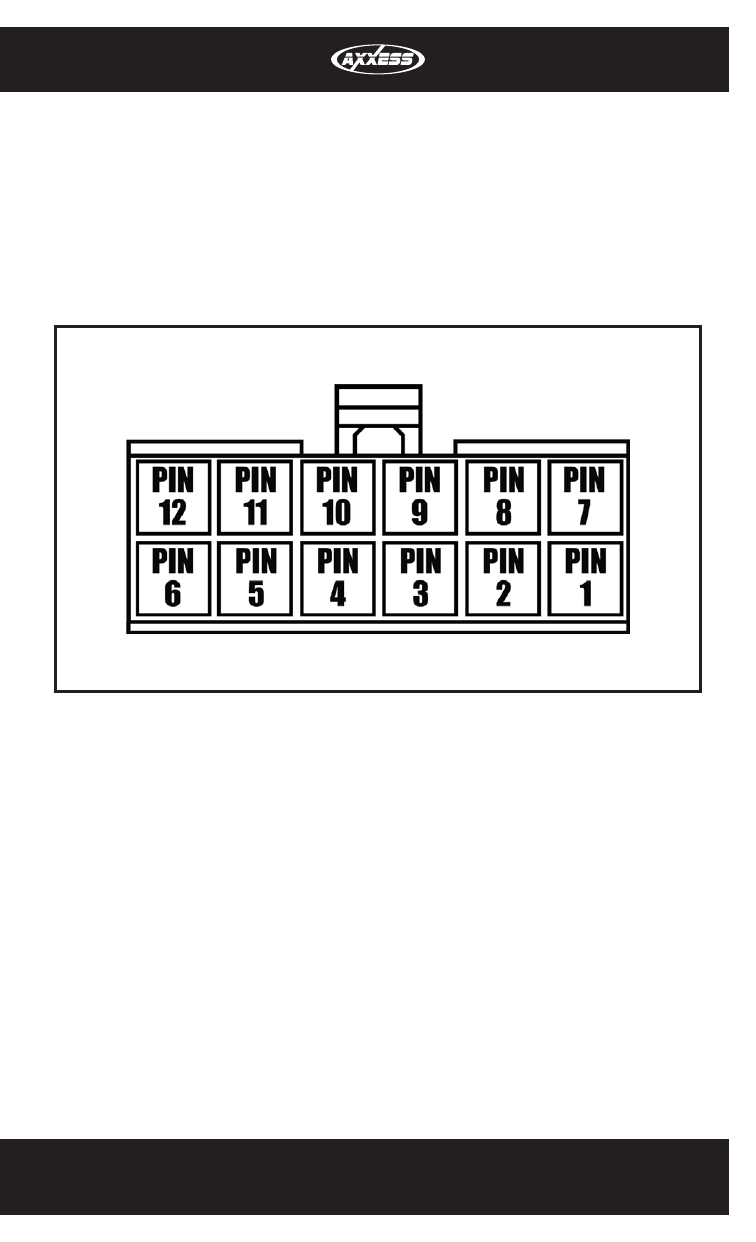

Below are the wire colors for the ASWC. Please visit the Axxess website
at www.axxessinterface.com for detailed information on your specific
vehicle and for what color wire(s) to use with the ASWC interface.
