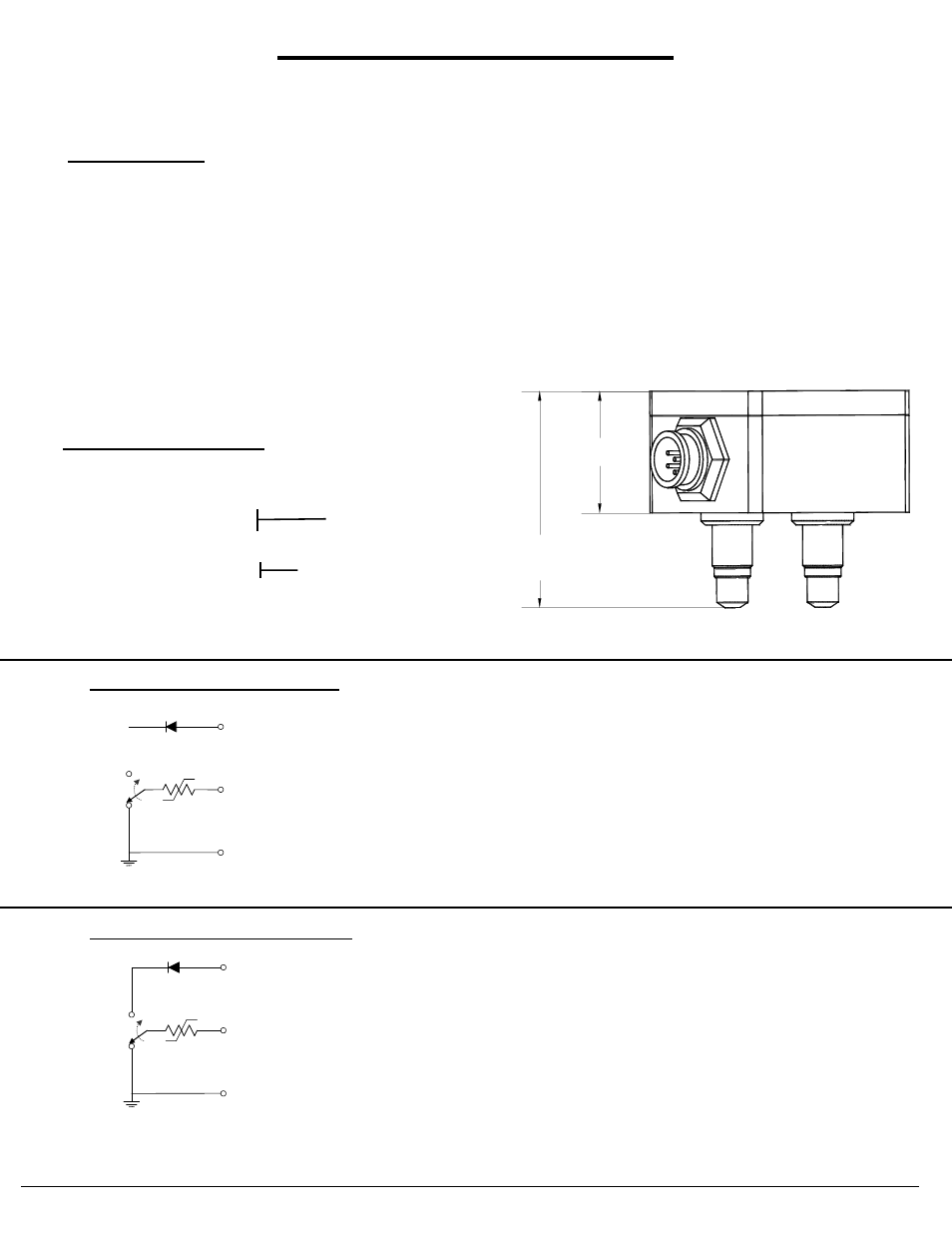

DH Dual Hall Effect Pickup

Installation and Technical Data Guide

AW Gear Meters Franksville, WI Phone: (262) 884-9800 Fax: (262) 884-9810

Email: [email protected] www.awgearmeters.com

Rev 06/10

DH-A / -AA Sinking Output Circuit

~40 Ohm

SUPPLY

OUTPUT

GROUND

Analog
Switch

DH-B / -BB Sourcing Output Circuit

~40 Ohm

SUPPLY

OUTPUT

GROUND

Analog
Switch

• User may need to add external components to interface to displays
or other instruments

• User must limit output voltage to Supply -1V

• Max current sinking capability: 50mA

• Signal output square wave :

Vhigh = Supply -1V @ no output load
Vlow = 0.1V

• Max sourced output voltage: Supply -0.5V

• Max current sourcing capabilities: 50mA

Supply Voltage:

+10 to 27 Volt DC

Supply Current:

18 mA @ 12 VDC, 25 mA @ 24 VDC

Duty Signal:

50% ± 15%

Minimum Signal:

0.5 Hz

Frequency Output:

Flow dependent, up to 2,000 Hz

Driving Capacity:

50 mA Max resistive load

Output Impedance:

~ 40 Ohm - analog switch and self-resetting fuse

Temperature Range:

-40° F to 185° F (-40° C to 85° C)

Technical Data:

1.19"

DH-X: (2.12")

DH-XX: (2.39")

Part number configuration:
DH Sensors can be used with all Aluminum, 303
Stainless Steel and 316 Stainless Steel body flow meters

JV-CG 01, 10, 15, 20 & 30
JV-KG 12, 20 & 30

JV-60CG & JV-60KG ONLY

DH-A, DH-B

DH-AA, DH-BB
