Aposonic A-S1604R4 User Manual
Page 14

13
Alarm output is Relay Type, Pin 23 is Normal Close and Pin 25 is Normal Open. These
outputs can be used to control external devices.

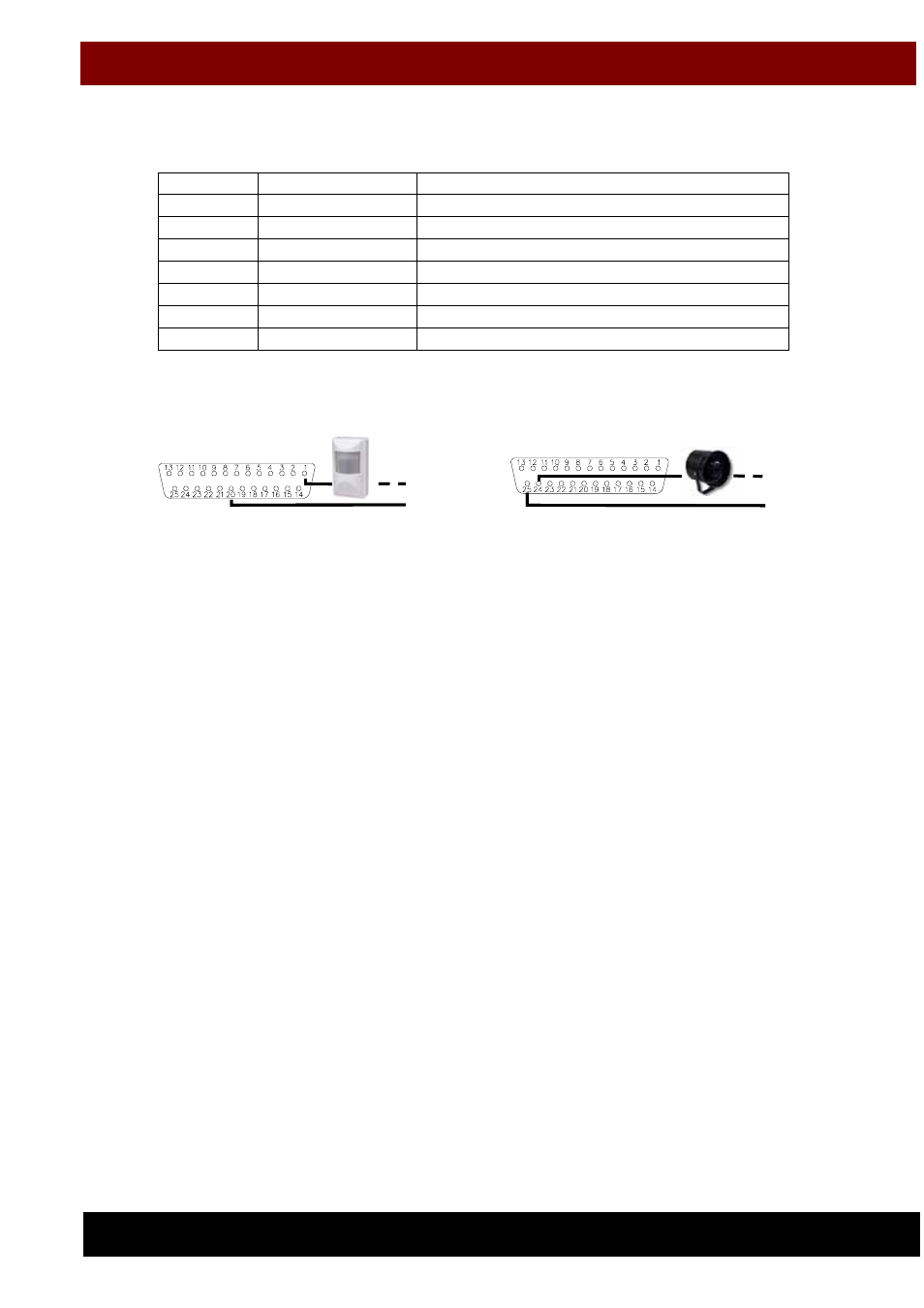

EXAMPLE 1: Connect with PIR (Passive Infrared) device from ALARM1 INPUT.
EXAMPLE 2: A Normal off (Normal Open) alarm siren at Alarm Output.
EX1
EX2
D-SUB25 PIN
DEFINE
1-16
Alarm 1-Alarm 16 Camera alarm input
17-19 N/A
20, 21
GND (connecting to ground)
22
Alarm
Reset
23
Alarm output, N.C.
24
Relay
COM
25
Alarm output, N.O.
